Description
Features
- The 1.5kW/2.2kW Water Cooled Spindle is a heavy-duty 3 phase spindle suitable for working with wood, plastic, foam, carbon fibre and soft metals including aluminium and brass.
- The 1.5kW 2.2kW Water Cooled Spindle is incredibly powerful and quiet. It is perfectly used on CNC Router Machine.
NOTE
- This purchase link is for the Spindle ONLY. Installation of this spindle requires a VFD, Cable and Bracket.
- Please see our 1.5KW Water Cooled Spindle Bundle and 2.2KW Water Cooled Spindle Bundle with everything required to install this spindle!
Specifications

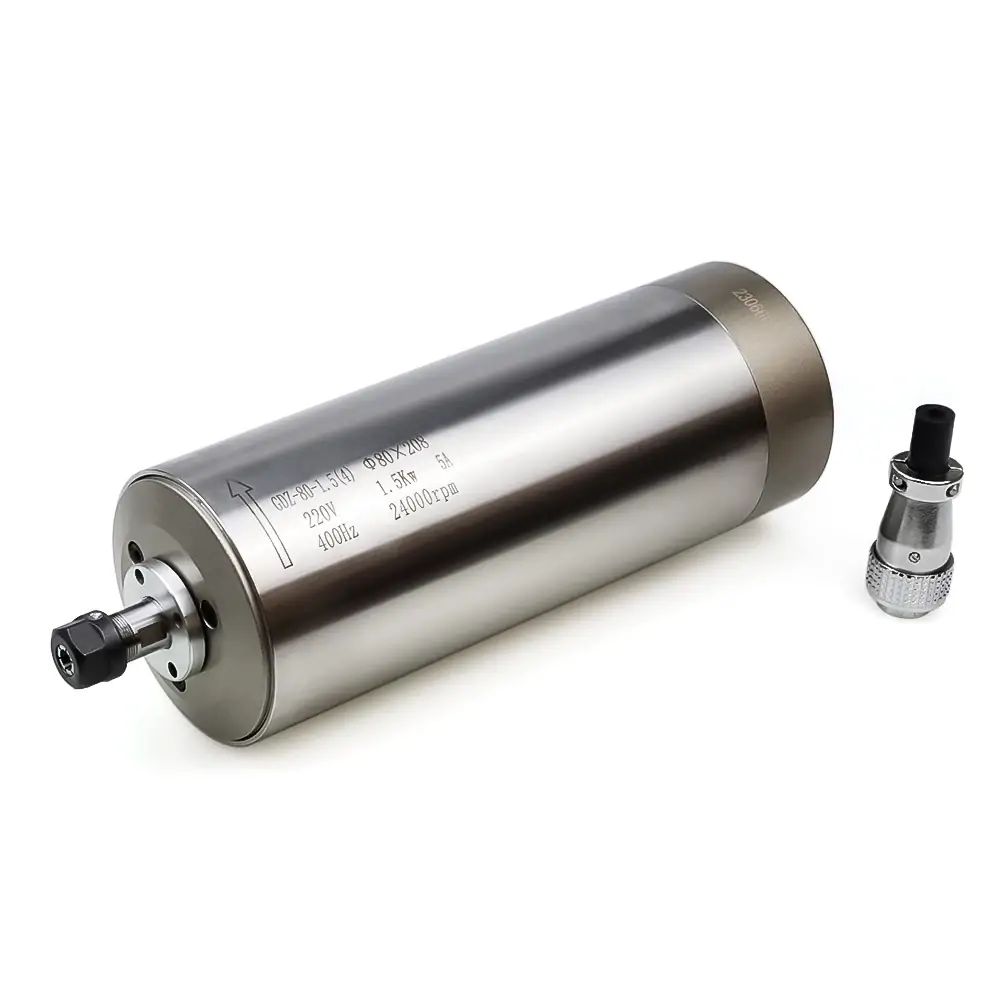

- 1.5KW Spindle Spec: φ80×208 mm (Diameter: 80mm x Length:208mm)

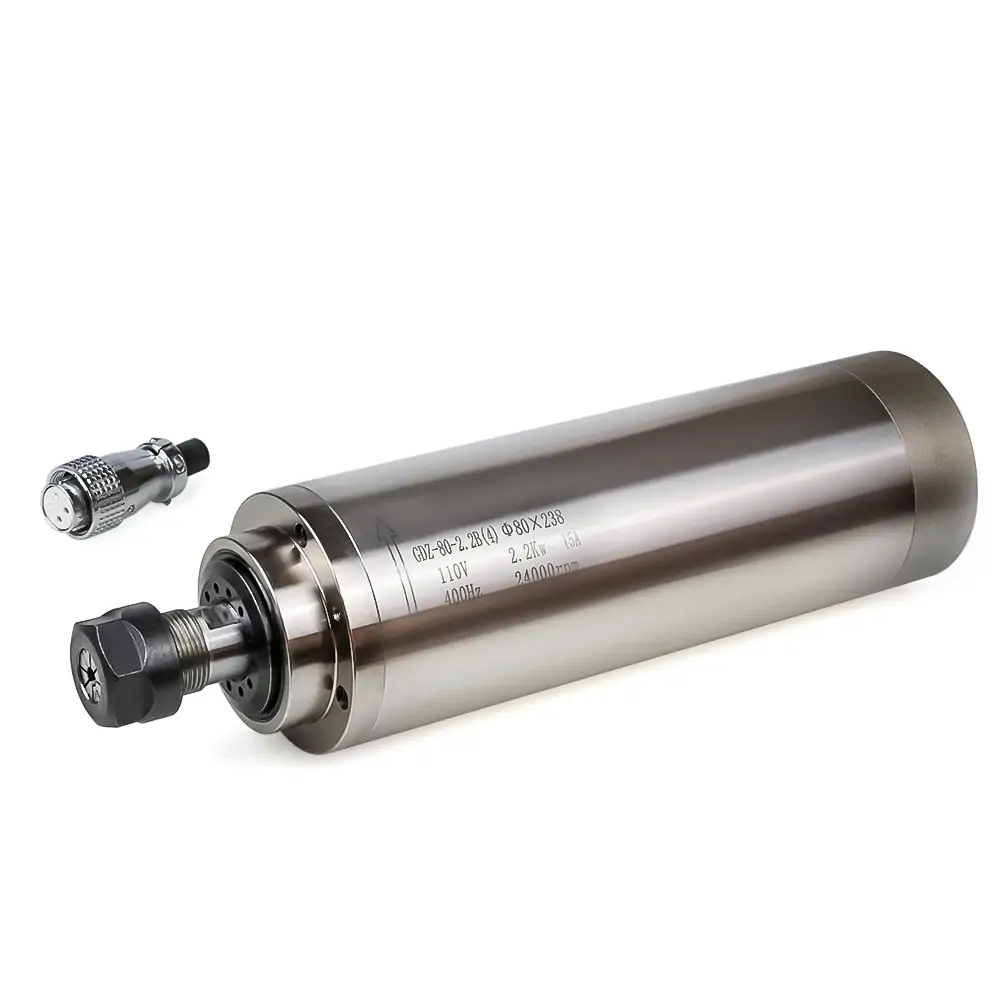

- 2.2KW Spindle Spec: φ80×238 mm (Diameter: 80mm x Length:238mm)
- Material: Iron and Copper
- Power: 1.5KW / 2.2KW
- High Speed 7 Series 4 Bearings
- Voltage: 110V / 220V / 380V
- Frequency: 400 Hz
- Speed: 8000-24000 R/min
- Cooling: Water Cooling
- Runout off: Less than 0.005mm
- Model:
- YS1.5W110-D80ER11 Net Weight:4.5kg (Only with 1pcs 3.175mm ER11 Collet)
- YS1.5W220-D80ER11 Net Weight:4.5kg (Only with 1pcs 3.175mm ER11 Collet)
- YS1.5W380-D80ER11 Net Weight:4.5kg (Only with 1pcs 6mm ER11 Collet)
- YS1.5W110-D80ER16 Net Weight:5.5kg (Only with 1pcs 6mm ER16 Collet)
- YS1.5W220-D80ER16 Net Weight:5.5kg (Only with 1pcs 6mm ER16 Collet)
- YS1.5W380-D80ER16 Net Weight:5.5kg (Only with 1pcs 6mm ER16 Collet)
- YS2.2W110-D80ER20 Net Weight:5.5kg (Only with 1pcs 6mm ER20 Collet)
- YS2.2W220-D80ER20 Net Weight:5.5kg (Only with 1pcs 6mm ER20 Collet)
- YS2.2W380-D80ER20 Net Weight:5.8kg (Only with 1pcs 6mm ER20 Collet)
NOTE: If you need other sizes collets, please click here.
Package Includes
- 1 x Water-Cooled Spindle Motor
- 1 x Air Plug
- 1 x ER11/ER16/ER20 Collet (Default to send 3.175mm or 6mm randomly)
Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
