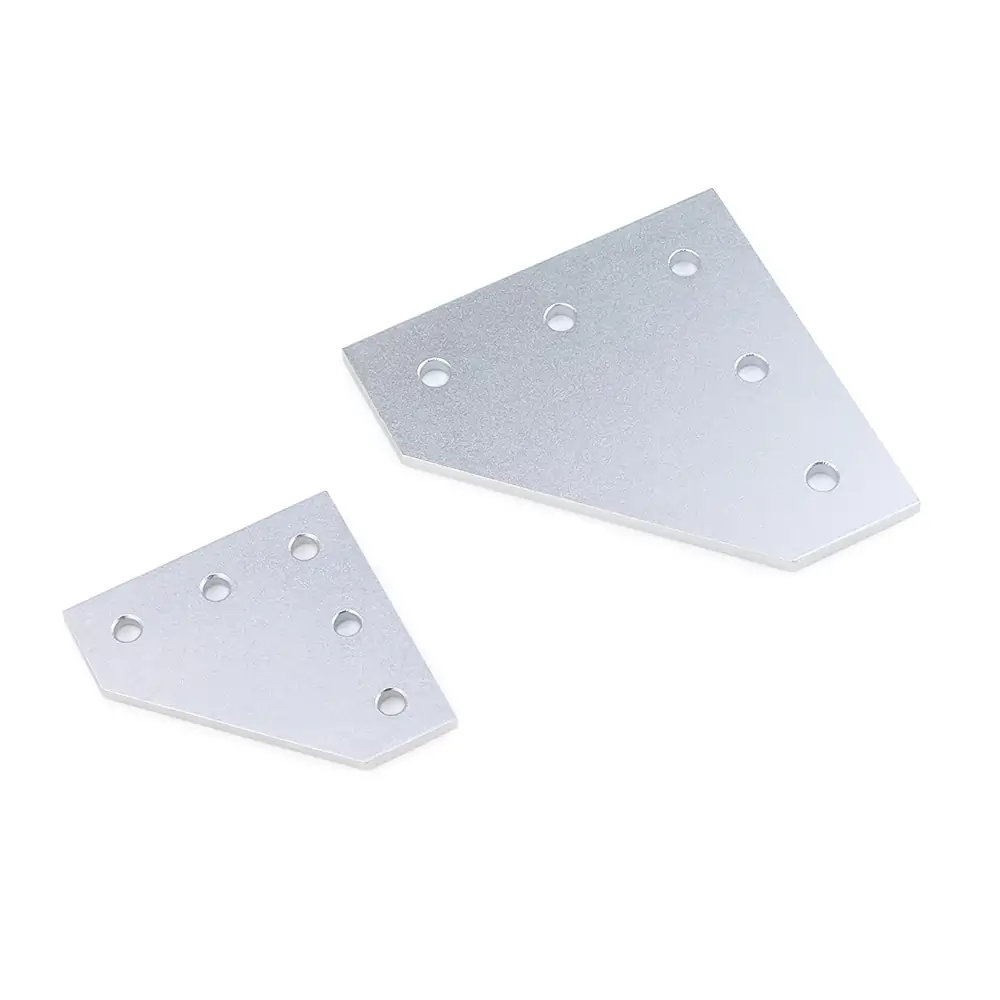

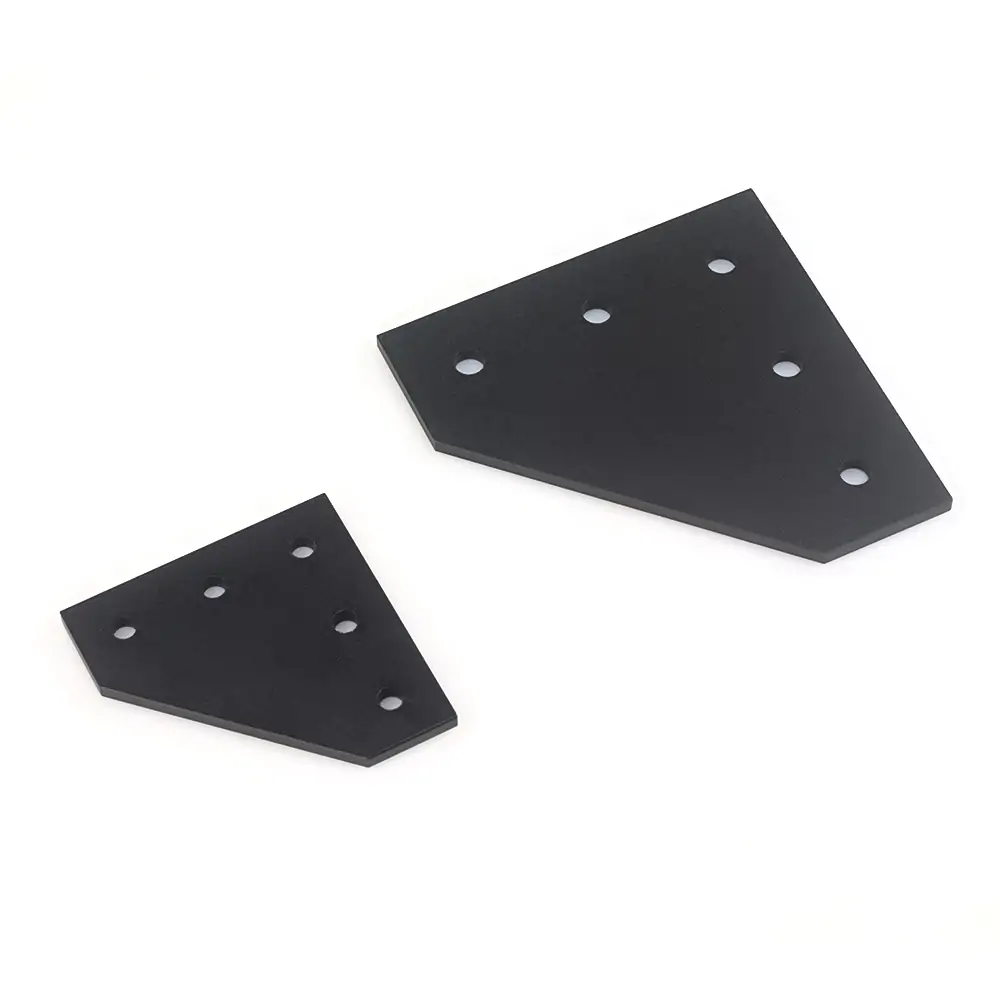

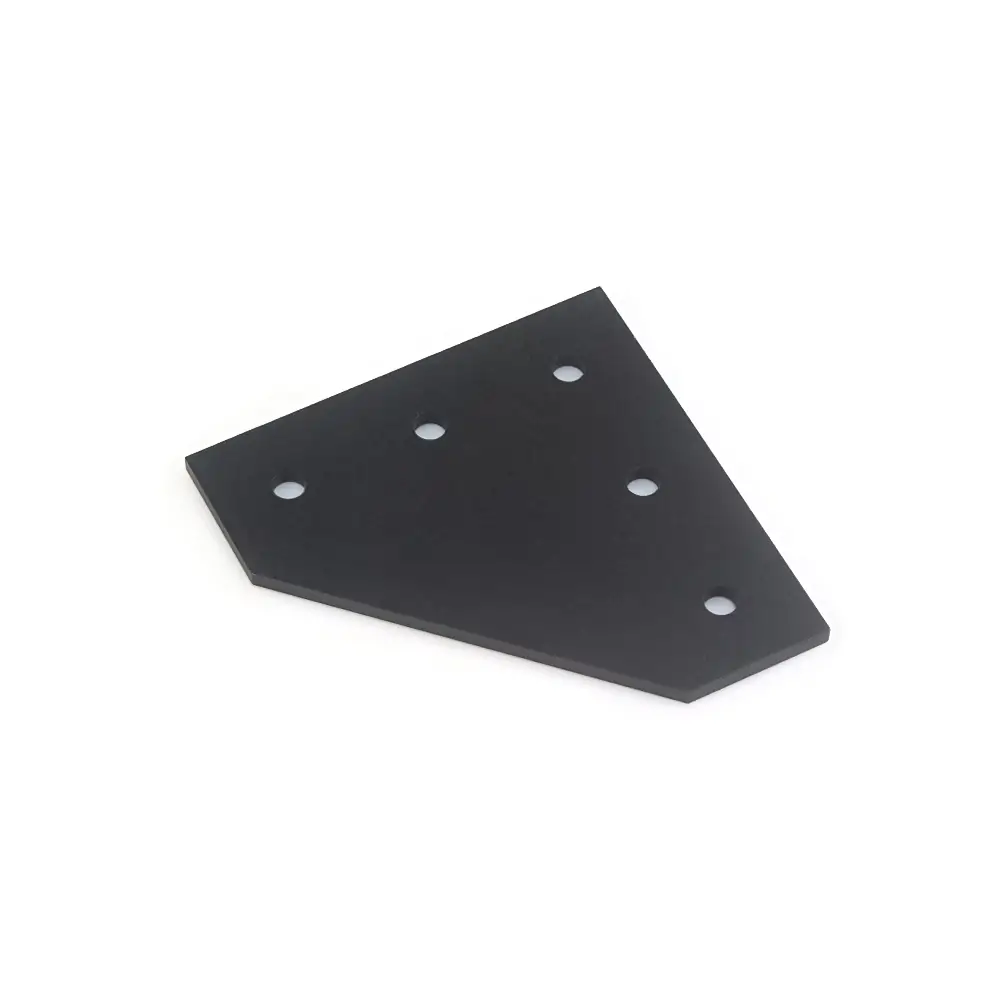

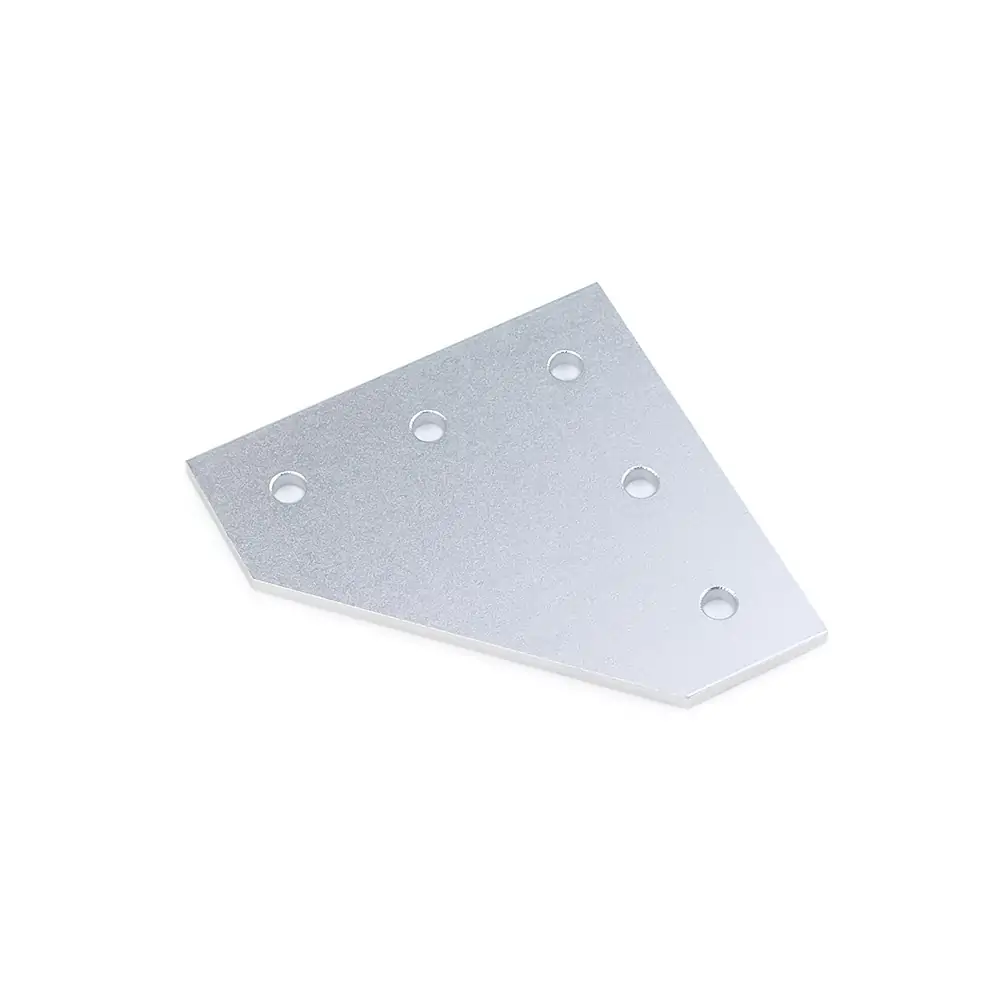

5 Hole 90 Degree Joining Plate – For 20/30/40 Series Aluminum Profiles

Description

Specifications:

• SKU: PL04-20S / PL04-20B / PL04-30S / PL04-30B / PL04-40S / PL04-40B
• Item Name: 5 Hole 90 Degree Joining Plate

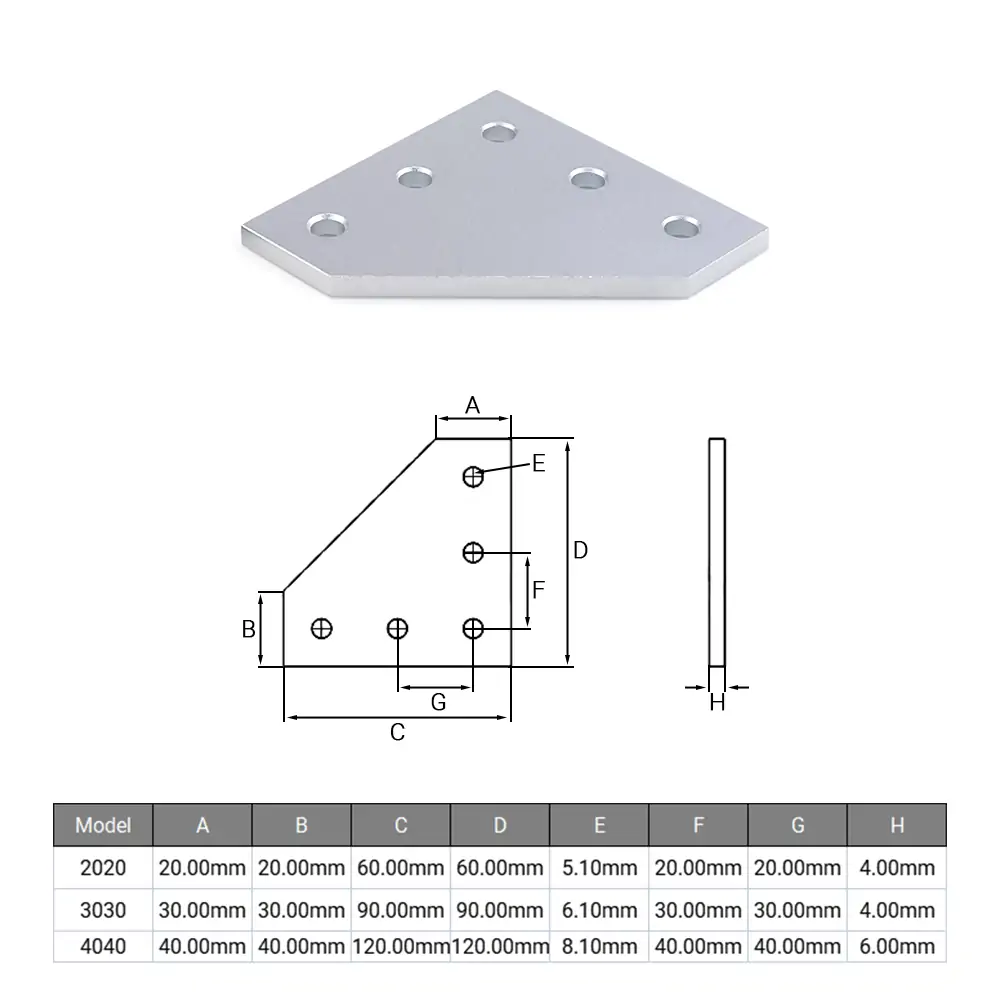

• Size for 2020: T4x60x60mm
• Size for 3030: T4x90x90mm
• Size for 4040: T6x120x120mm
• Material: AL6063-T5

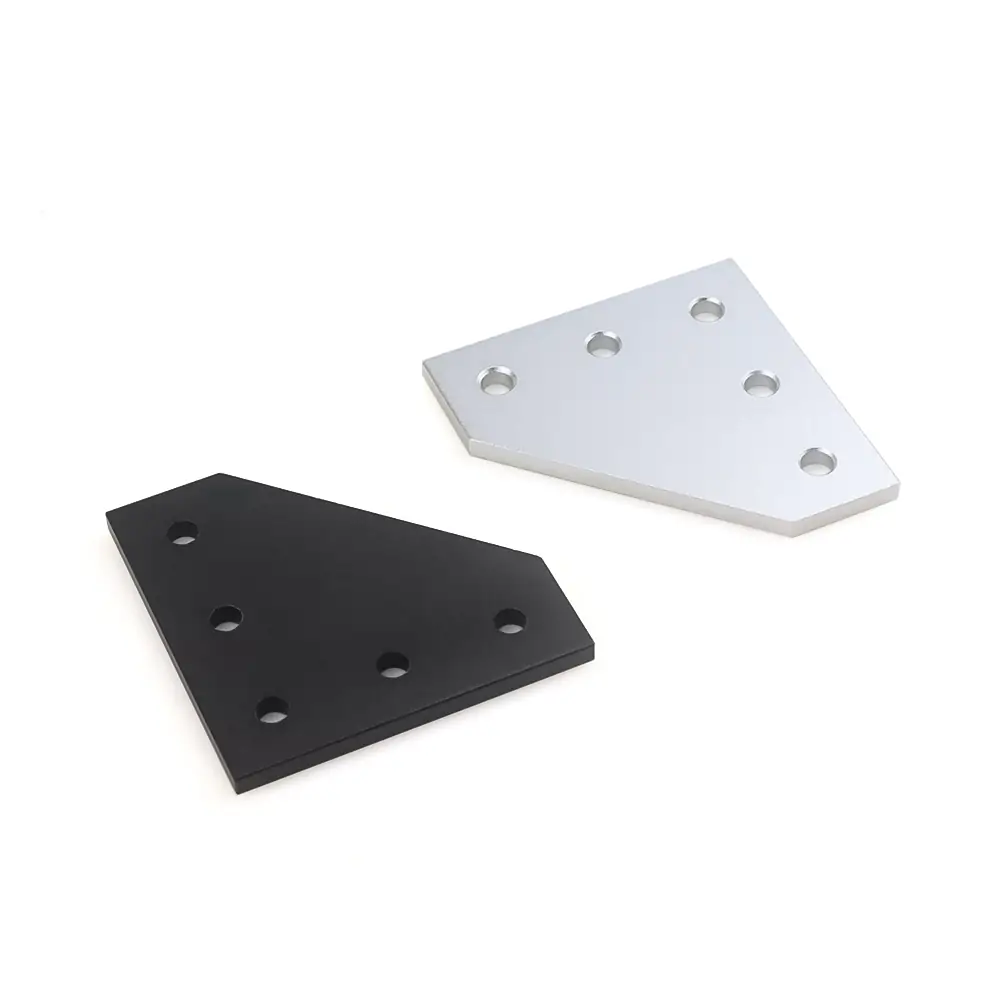

• Finish: Silver anodized/Black anodized
• M5 Diameter Screw
• Holes Spacing: 20mm/30mm/40mm

Feature:

• These heavy duty mounting plates are perfect for any project requiring connection strength.
• These Plates can be mounted to V-Slot Linear Rail using 10mm Low Profile Screws and Tee Nuts.

Application:

Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
