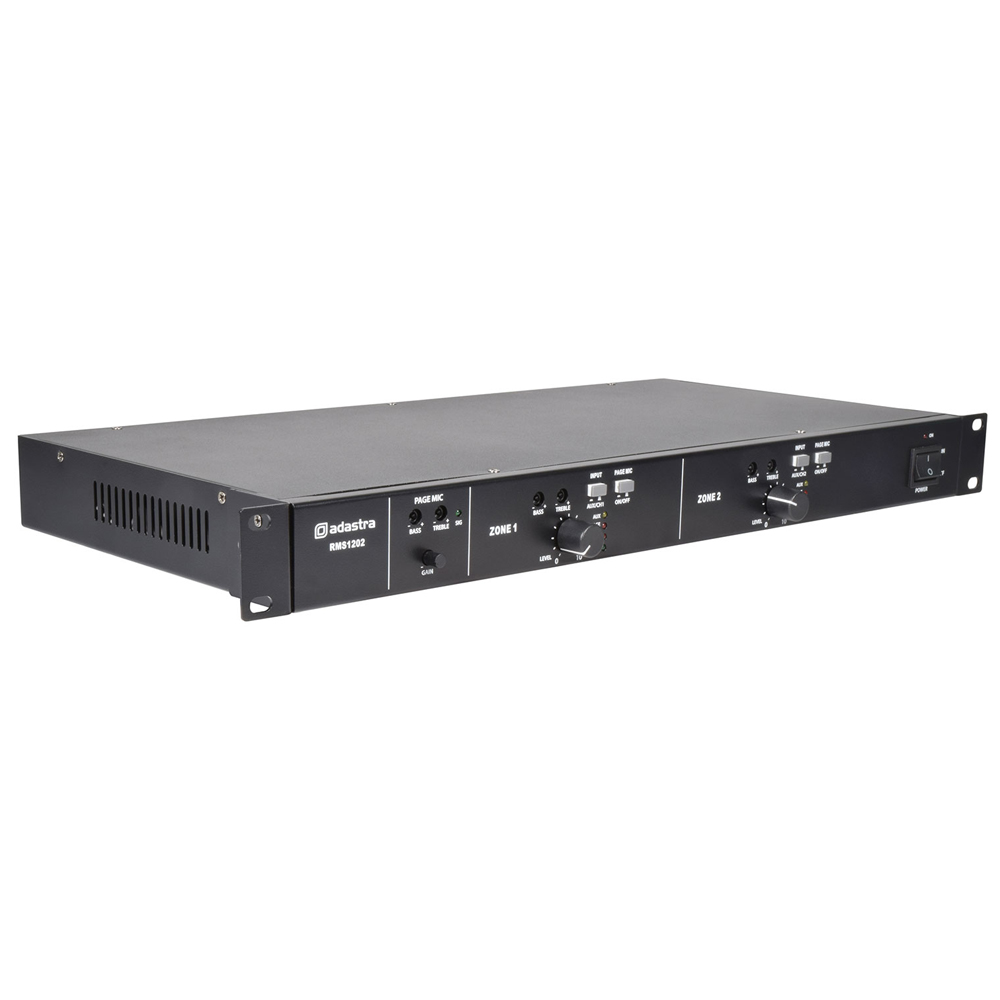

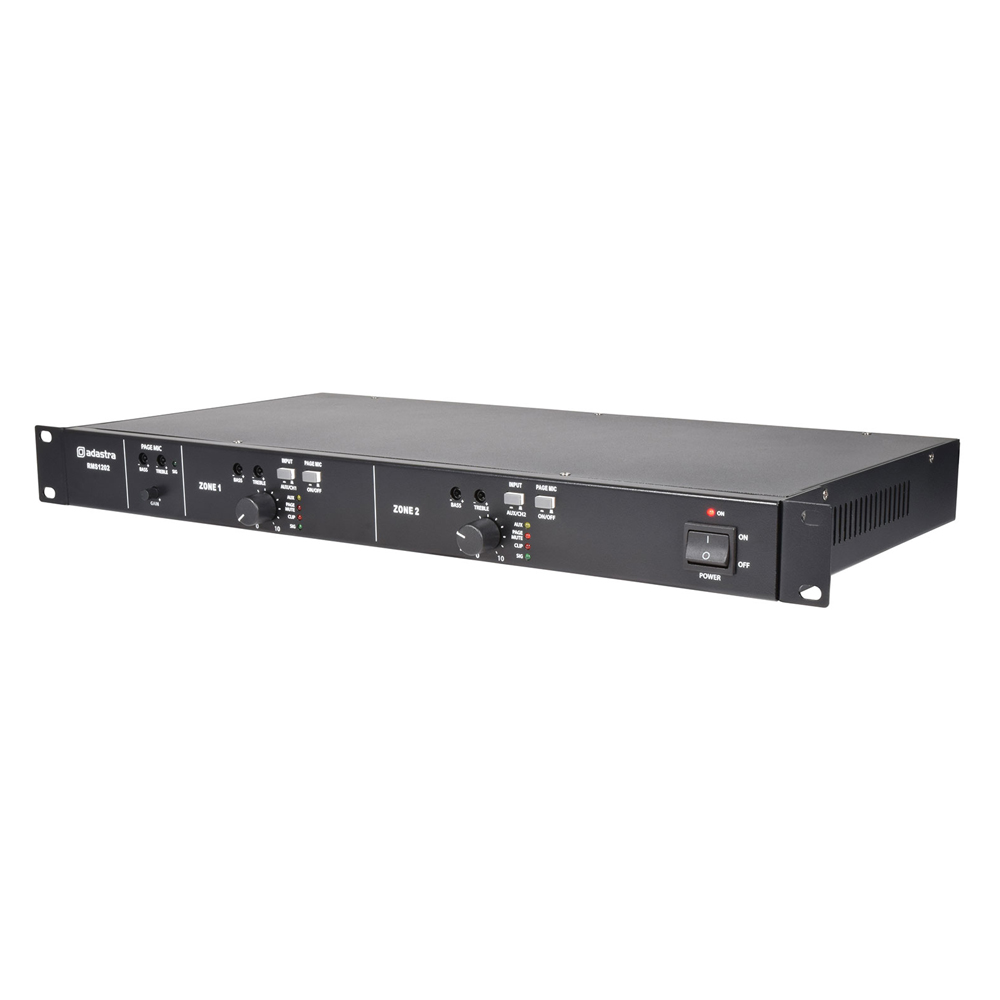

Adastra RMS1202 2-Zone Power Amplifier

Description

Adastra RMS1202 2 x 120W 100V line power amplifier

Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

• Do not connect more that two 8Ω loudspeakers to the 8Ω output on any output channel of this amplifier
• Independent high efficiency class-D amplifiers
• Outputs for 100V or 4-16 Ohm speakers
• Separate channel inputs and optional global aux input
• Paging microphone input with vox override
• Switchable +20V phantom power for paging microphone
• 24V contacts for emergency muting
• Power supply: 170-264Vac, 50/60Hz (IEC)

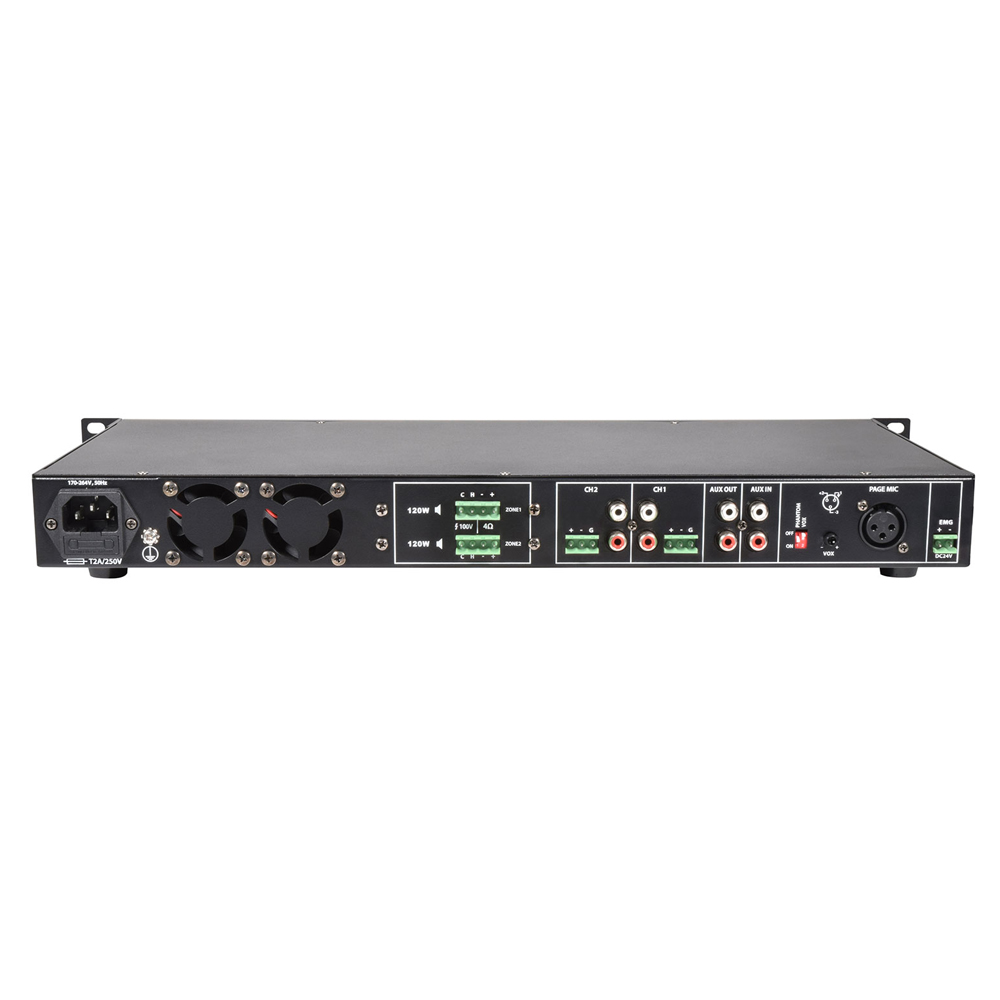

• Microphone input: Balanced XLR (rear panel)
• Mic controls: Gain, Bass, Treble & Vox (rear panel)
• Auxiliary input: L+R RCA
• Output controls: Level, Bass, Treble & Ch/Aux switch
• Phantom power: +20V switchable (paging mic)
• Emergency control: 24V mute contacts (Euroblock terminal)

Specifications:

• Fuse: T3.15AL
• Channel inputs: 2 x L+R RCA or balanced terminal
• Power rms : 100V line: 2 x 120W
• Power rms : 4 Ohms: 2 x 120W
• Output connection: 2 x 100V or 4 Ohm (Euroblock terminal)
• Auxiliary output: L+R RCA
• Dimensions: 482 x 252 x 42mm
• Weight: 5.04kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
