Anchor Wheel Connector Circular for 20/30/40 Aluminum Profiles

Description

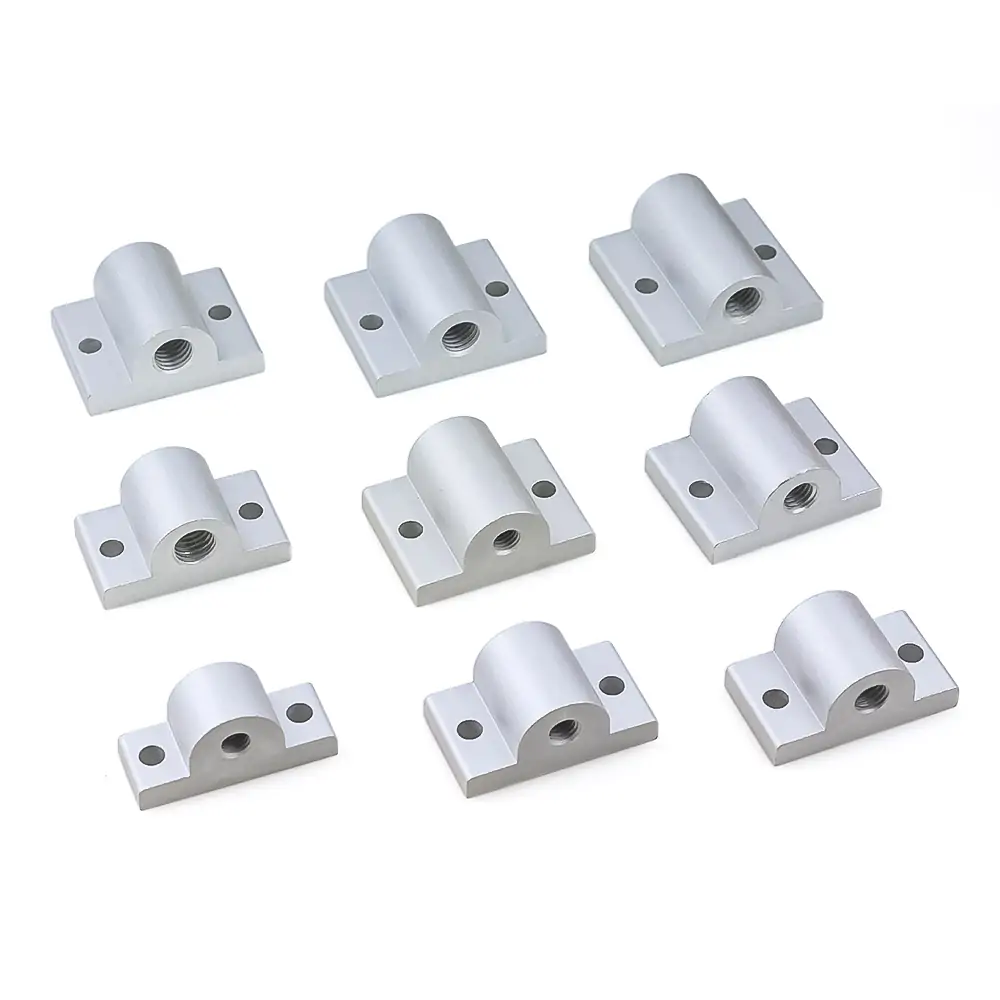

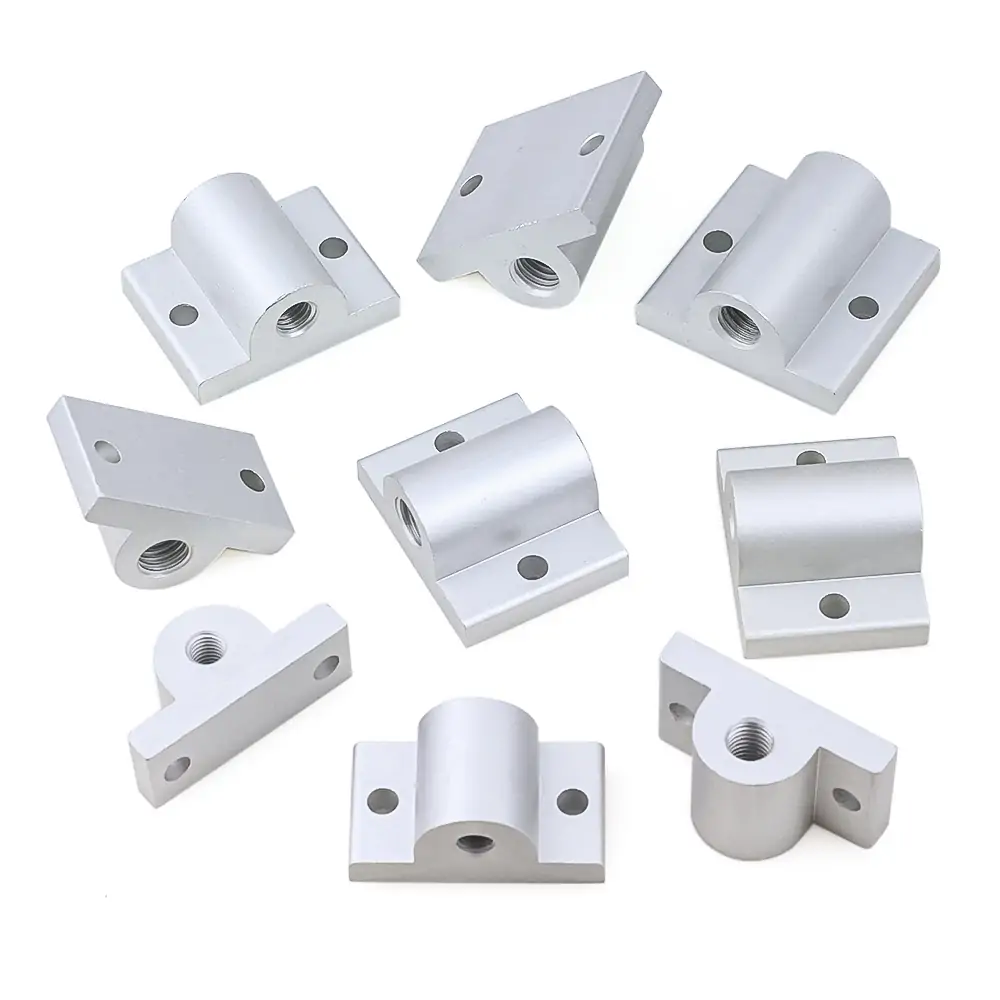

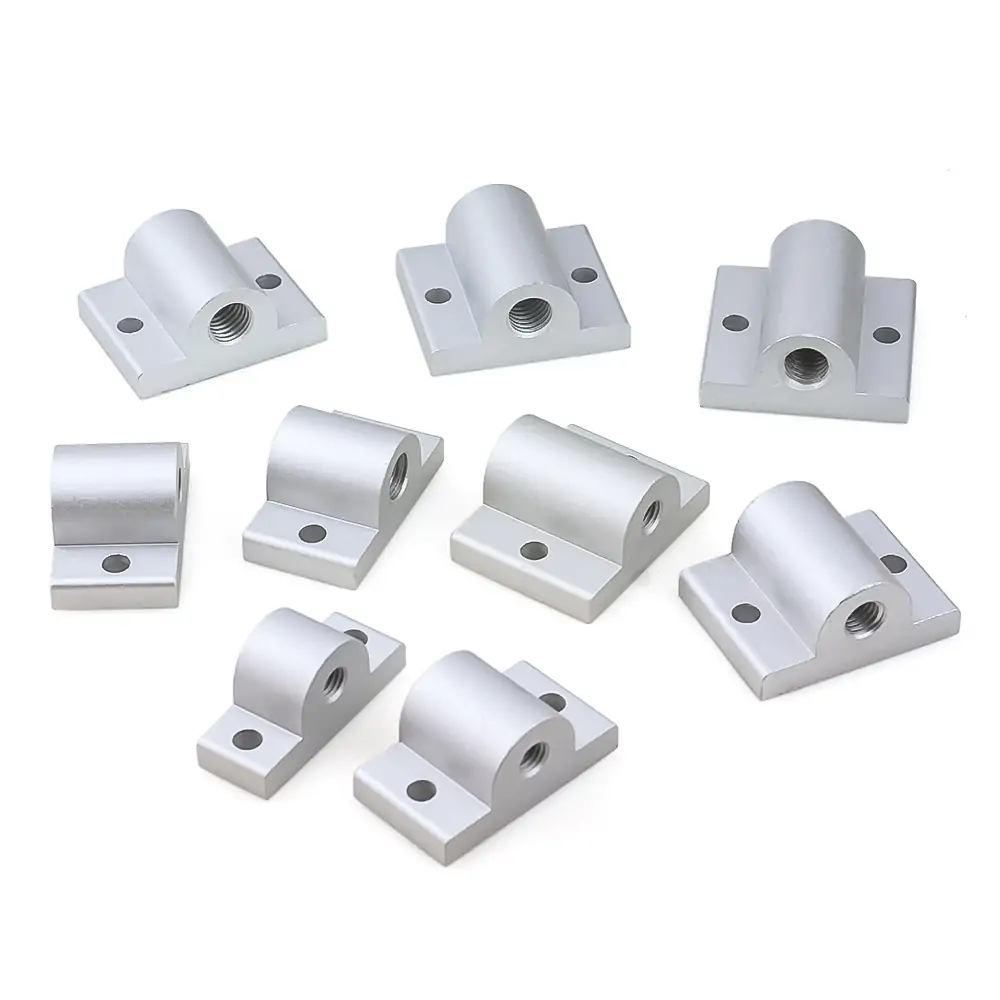

This Foot Mouting Bracket Circular sheet fixing part is for 2020/3030/4040 series aluminum profiles.

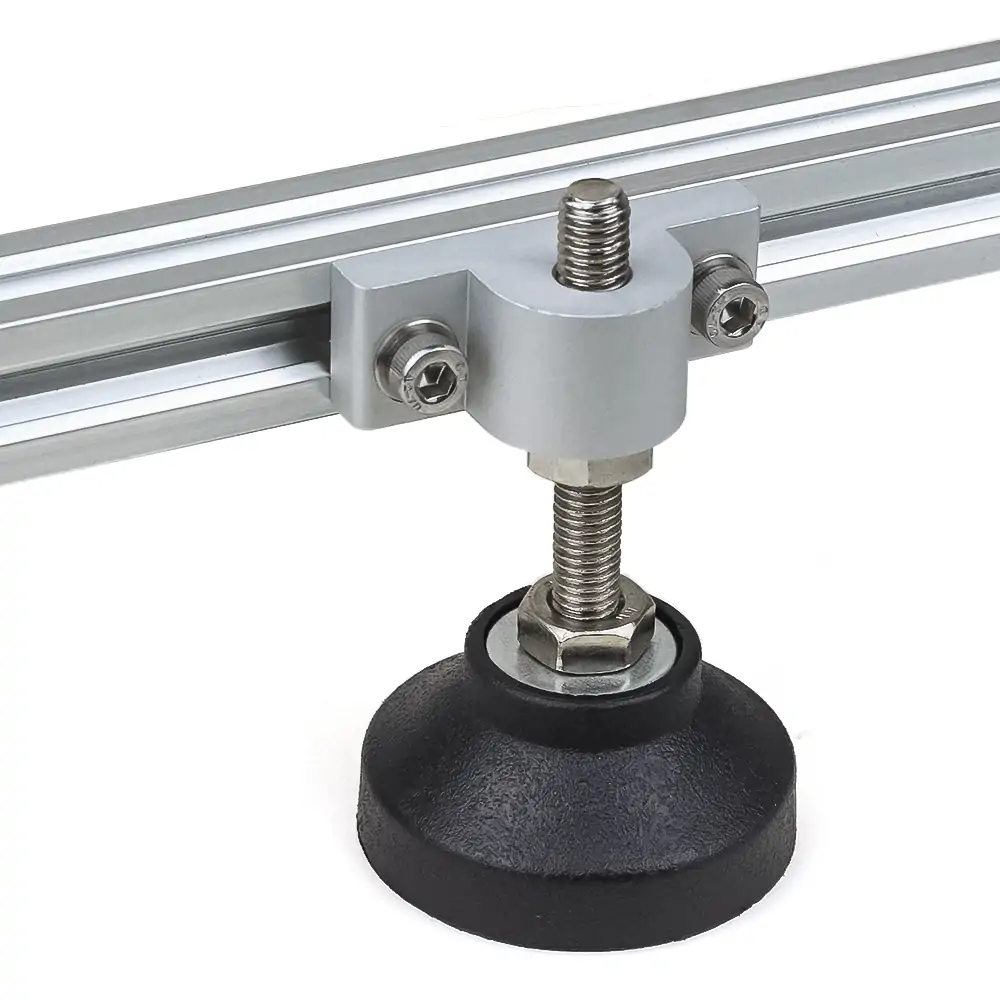

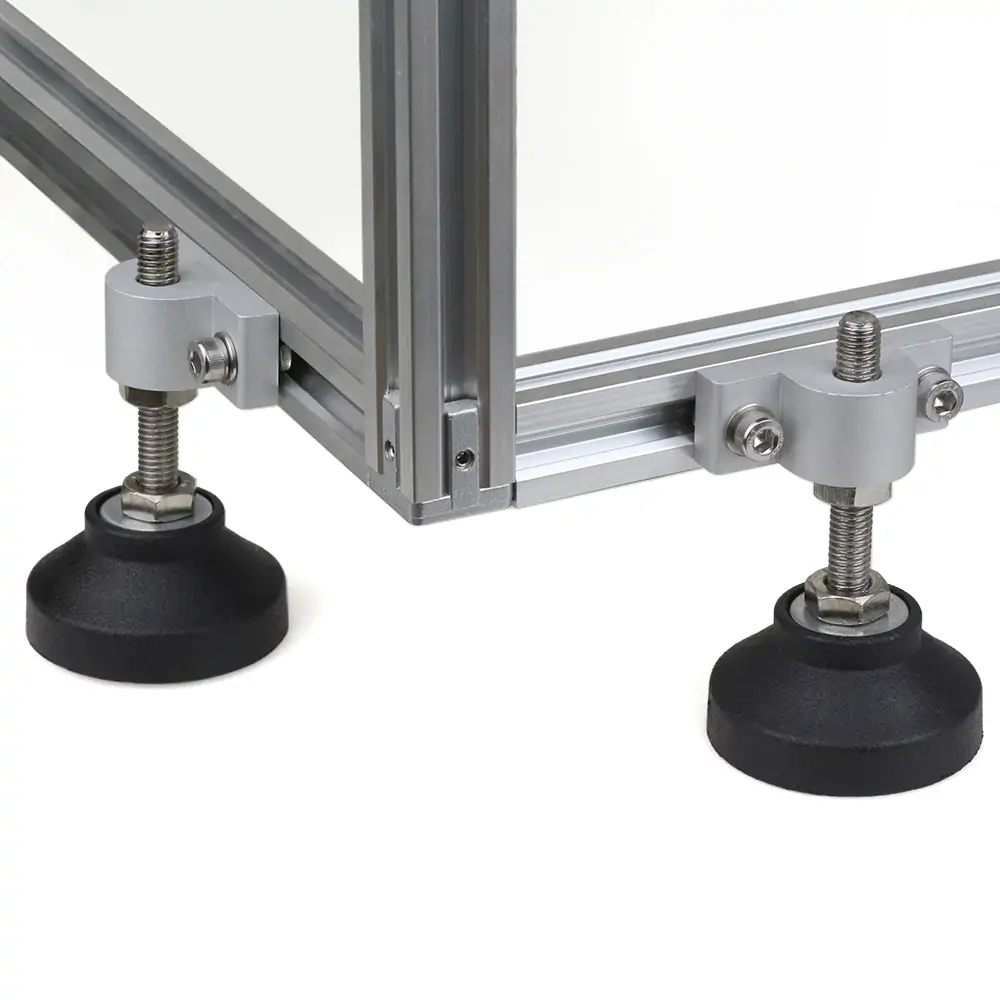

They can be used as a foot anchor. Side-fixed foot pads or casters for use with aluminum profiles. It is made of high hardness, no rust and corrosion resistance.

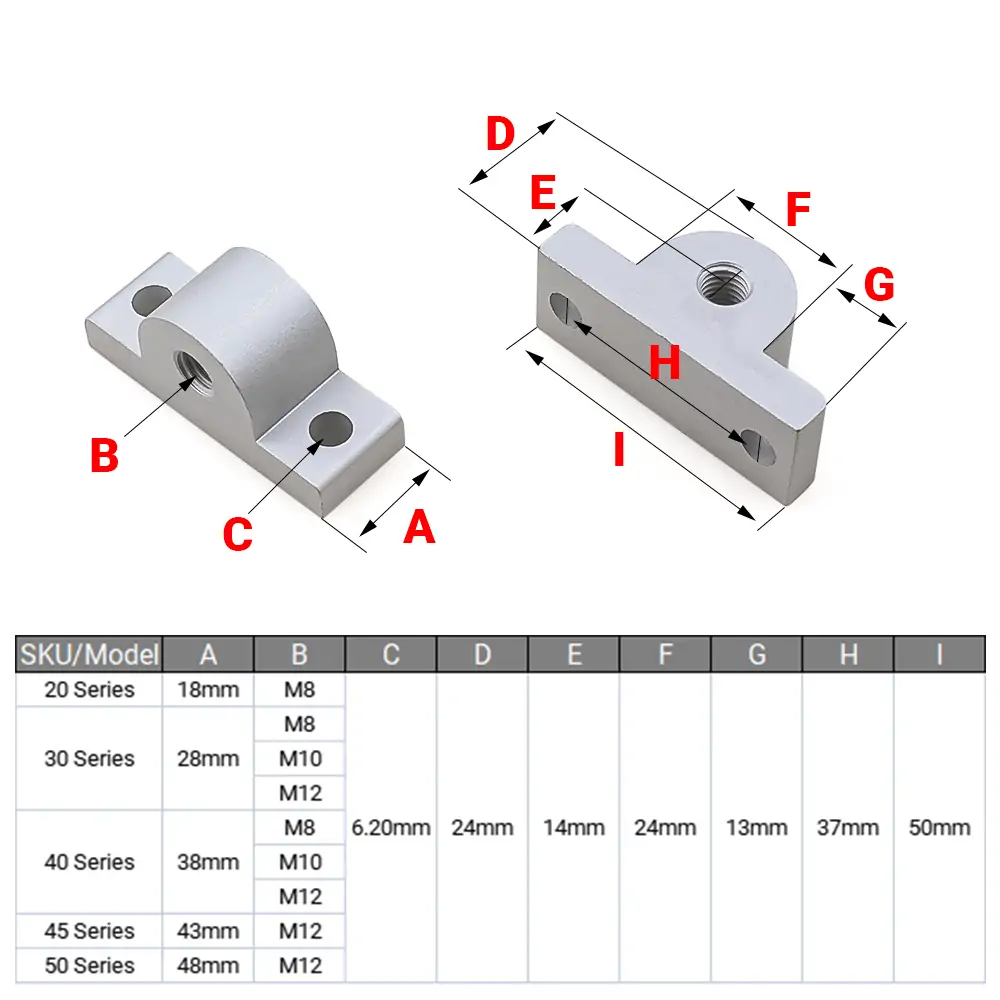

Specification:

• SKU: FPMB-T2-
• Item Name: Foot Pat Mouting Bracket Circular Type
• Material: 6063-T5 Aluminum
• Surface: Silver/Black Anodized
• Screw:
• Using M8 screw for 20/30/40 series aluminum extrusion;
• Using M10 screw for 30/40 series aluminum extrusion;
• Using M12 screw for 30/40/45/50 series aluminum extrusion;
• Excluding screws and nuts.

Application:
