Description
Features
- Ultra-fast 802.11ac dual-band Wi-Fi router boosts speeds up to 3167 Mbps for low-latency online gaming, smooth 4K UHD video playback and extremely fast file-sharing.
- 4×4 antenna design with AiRadar universal beamforming for unrivaled Wi-Fi range.
- Intuitive ASUS Router App lets you control your network anywhere, without needing to boot up a PC.
- Exclusive built-in game accelerator from WTFast® lets you enjoy smooth gameplay in supported multi-player online games.
- AiProtection with Trend Micro™ for triple-strength network security, plus robust Parental Controls and privacy protection.
- 8 Gigabit LAN ports for extensive connectivity.
- Link aggregation for up to 2Gbps wired network speeds, so more devices can enjoy faster access.
- Revolutionary MU-MIMO technology can connect multiple MU-MIMO-compatible clients at each device’s maximum speed simultaneously
- AiMesh Supported – Connect to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
Specifications
| Network Standard | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11n, IPv6, IEEE 802.11g, IPv4, IEEE 802.11a |
| Product Segment | AC3100 ultimate AC performance : 1000+2167 Mbps |
| Coverage | Very large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11ac : up to 1734 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11n : up to 600 Mbps 1024QAM (2.4GHz) : up to 1000 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 1024QAM (5GHz) : up to2167 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | MIMO technology 4 x 4 5 GHz 2.4 GHz 4 x 4 |
| Processor | 1.4 GHz dual-core processor |
| Memory | 128 MB Flash 512 MB RAM |
| Wi-Fi Technology | Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | WPA-Enterprise , 128-bit WEP, 64-bit WEP, WPA2-PSK, WPS support, WPA2-Enterprise , WPA-PSK |
| Firewall & Access Control | Access control：Parental control, Network service filter, URL filter, Port filter |
| Management | NTP Client, Port Forwarding, System Event Log, IGMP v1/v2/v3, UPnP, DHCP, DDNS, Port Trigger, DNS Proxy, DMZ |
| WAN Connection Type | Internet connection type : L2TP, PPPoE(MPPE supported), Static IP, PPTP, Automatic IP |
| Utilities | Router setup wizard; Firmware restoration; Device discovary; printer setup utility |

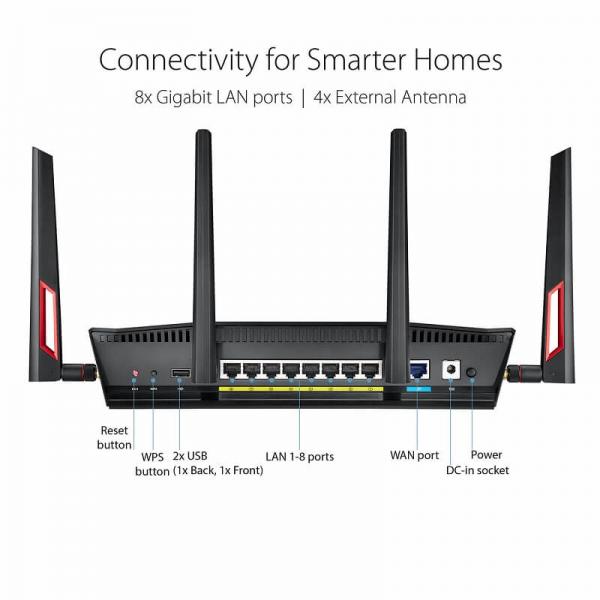

| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 8 USB 3.0 x 1 USB 2.0 x 1 |
| Button | LED on/off Button, Reset Button, Wireless on/off Button, Power Button, WPS Button |
| Features | AiCloud personal cloud service AiDisk file server – Samba and FTP server with account management AiProtection MU-MIMO Link Aggregation – 802.3ad Dual WAN Guest Network : 2.4 GHz x 3, 5 GHz x 3 Enhanced media server (AiPlayer app compatible) – Audio : mp4, ogg, wav, pcm, mp3, lpcm, wma – Image : Jpeg – Video : avi, ts, wmv, mpg, asf, mpeg, mkv, vob, divx, mov VPN server : L2TP Pass-Through, IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server Adaptive QoS Parental Control IPTV support Roaming Assist Printer Server – LPR protocol support – Multifunctional printer support (Windows only) 3G/4G data sharing Mac OS Backup VPN client : OpenVPN client, L2TP client, PPTP client Traffic Analyzer Download Master – Support encryption, DHT, PEX and magnet link – Support bt, nzb, http, ed2k – Download scheduling – Upload and download bandwidth control |
| LED Indicator | Wi-Fi x 2 WAN x 1 USB x 2 LAN x 1 Power x 1 WPS x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current |
| OS Support | Mac OS X 10.8 Mac OS X 10.7 Windows® 10 Mac OS X 10.6 Windows® 7 Windows® 8 |

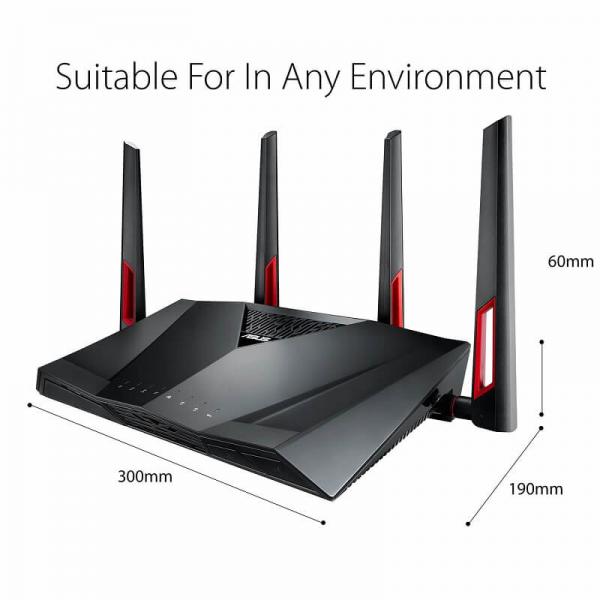

| Dimensions | ~ 11.8 x 7.4 x 2.38 (Without Bezel) inch (WxDxH) |
| Weight | 950 g |
| Warranty | 3 Years |
