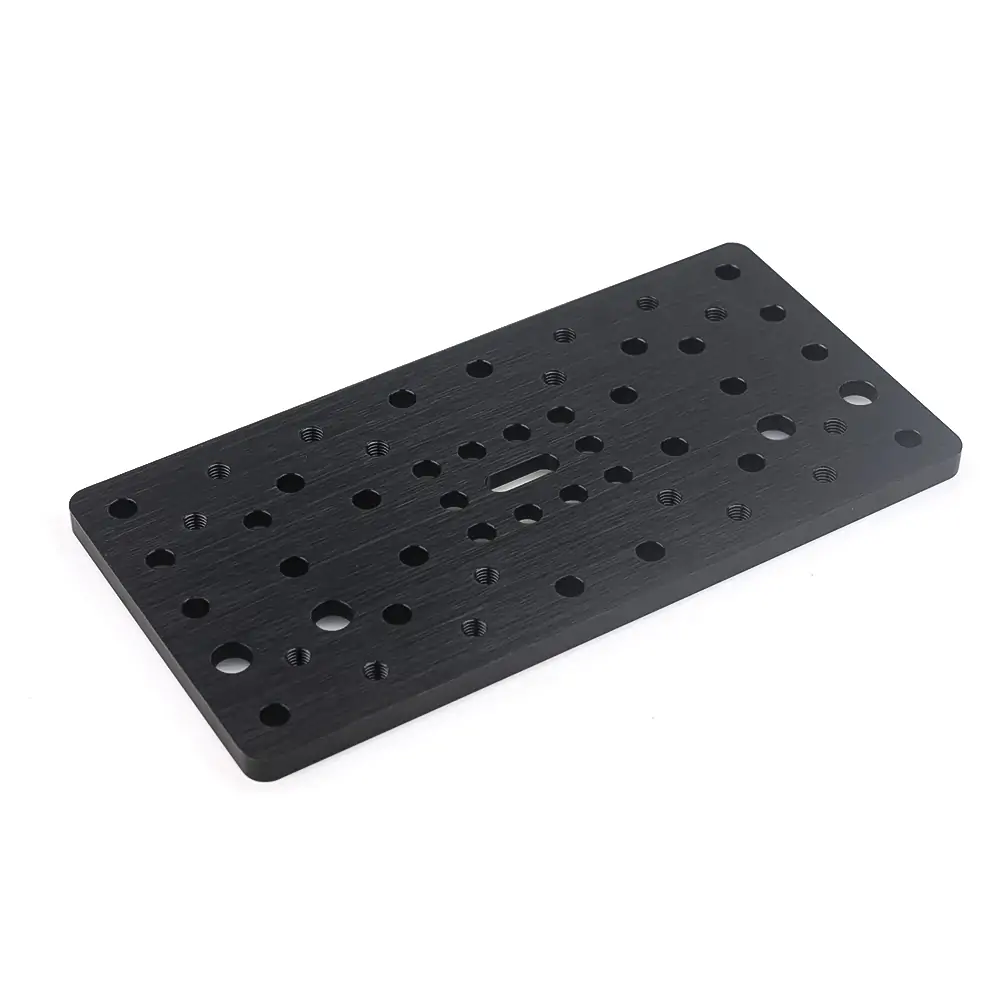

C-Beam Gantry Plate – Double Wide

Description

Specifications:

• SKU: PL16
• Item Name:C-Beam Gantry Plate – Double Wide
• Material: 6mm thick Aluminium

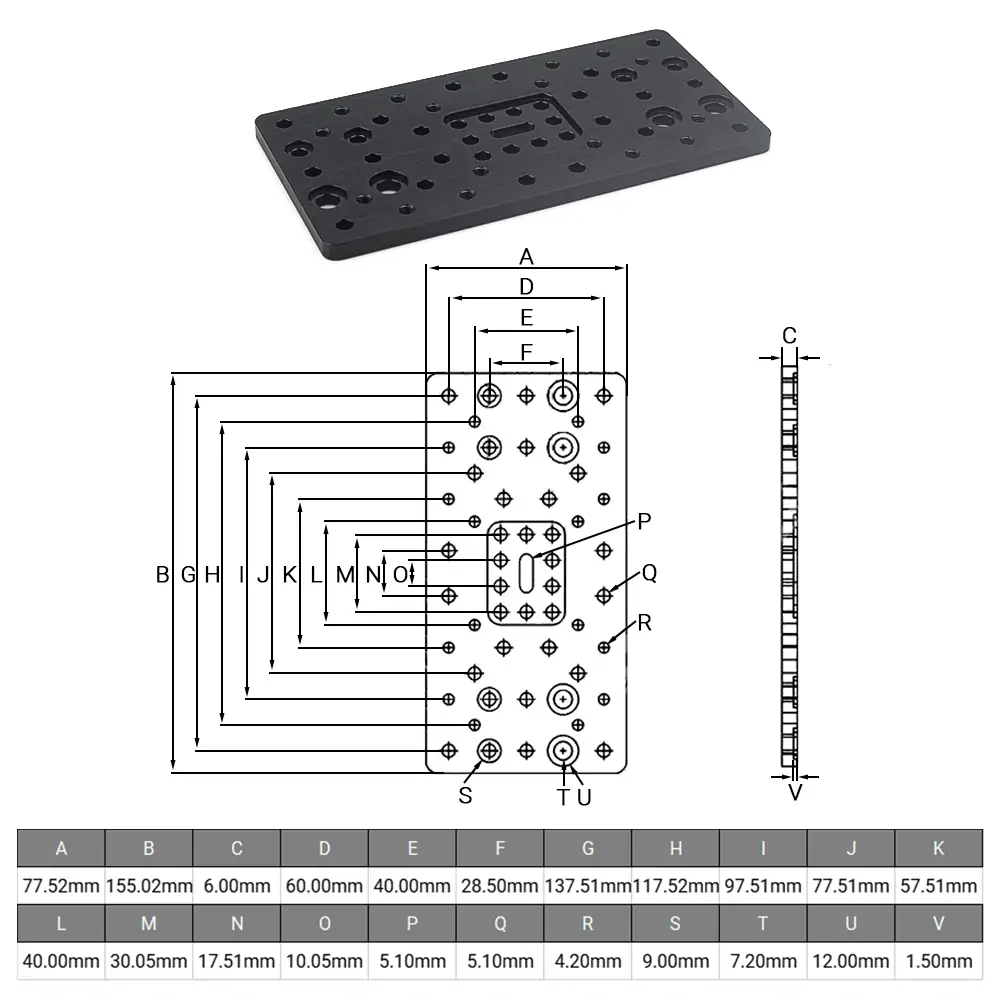

• Dimensions: 155 mm( L) x 77.5 mm (W)
• Mates at 90 degrees to another plate allowing for the best in an XY and Z system
• Colour: Brushed black anodised for a finished look
• Recessed screw pockets ensure flush mounts
• Includes pre-tapped mounting holes for a clean 90 degree mounting solution
• Adjustable end holes allow for creating a very accurate and reliable double Nut Block system
• Centre recess allow for single nut block mounting

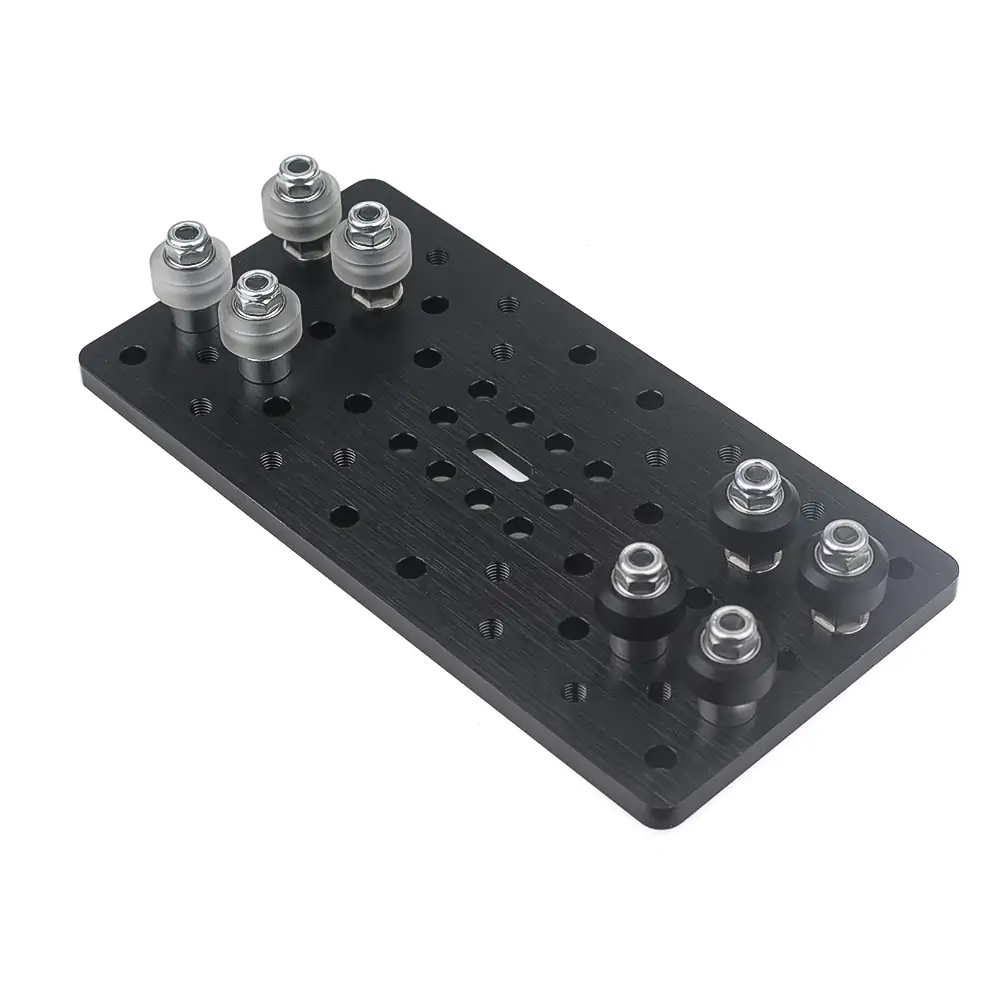

• Up to 8 wheel mounting configuration for secure and precise rail lock in



Feature:

• This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds.
• The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications.
• Designed specifically to provide a much stronger Z Axis system but is modular enough to be used on any axis.

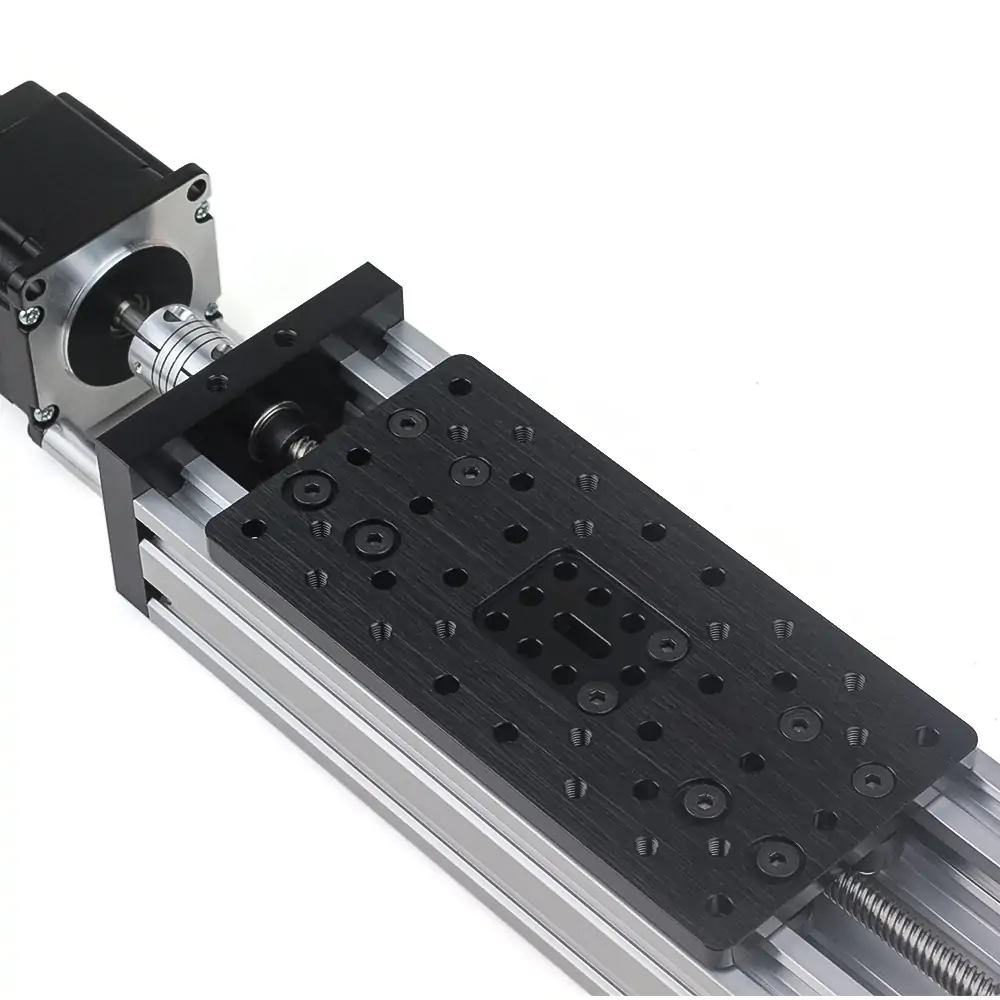

• Flush, clean finish with wheels that ride on the internal V tracks of C-Beam.
