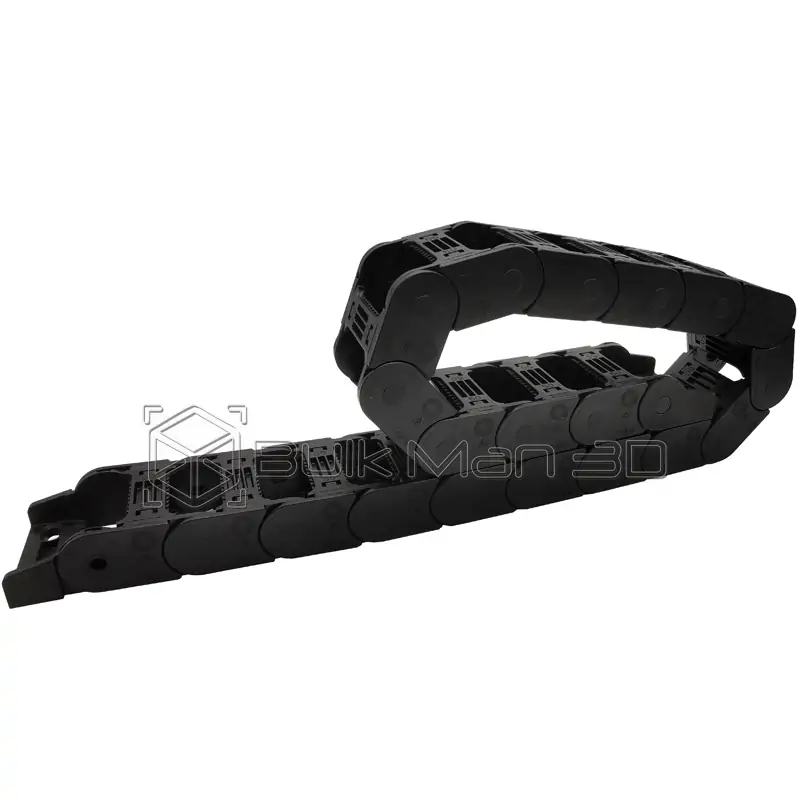

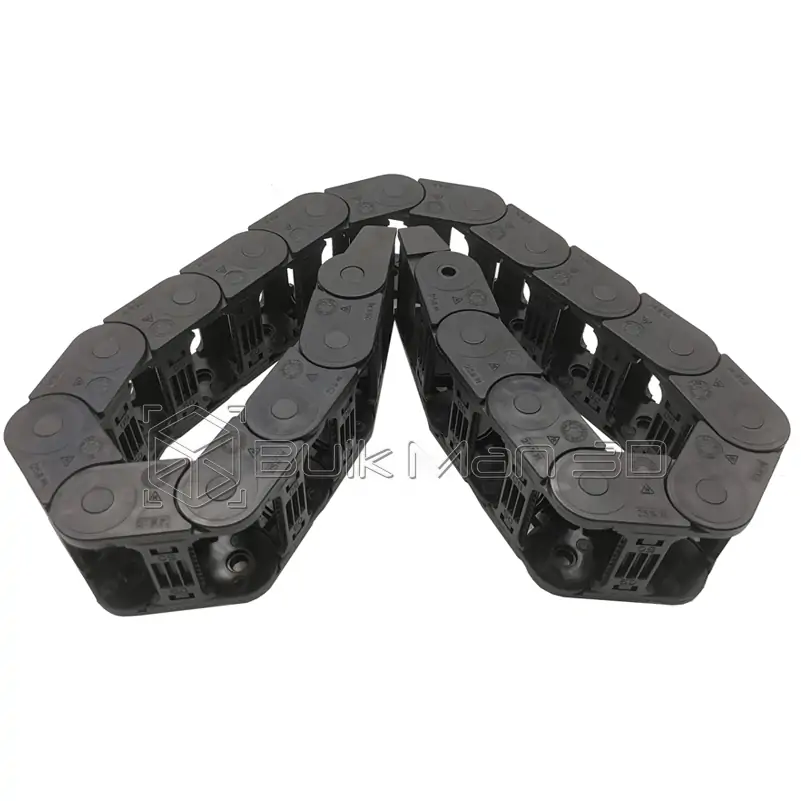

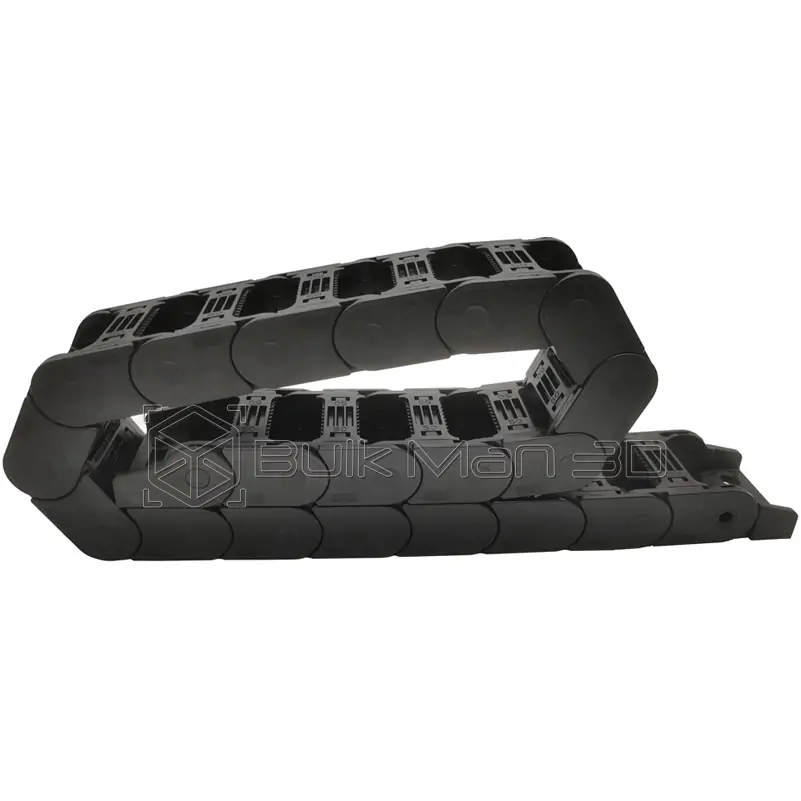

This Cable Drag Chain add-on bundle contains all the hardware for mounting Cable Drag Chains on your ULTIMATE Bee CNC machine to help with cable management.
We selected a bigger drag chain to best accommodate the extra encoder wires. The newer introduced drag chain has also a greater bending radius that plays an important role in keeping the cables from overbending.
|
2 Piece Pack for Machine Sizes:
- 500 x 500mm
- 500 x 750mm
- 750 x 500mm
- 750 x 750mm
- 750 x 1000mm
|

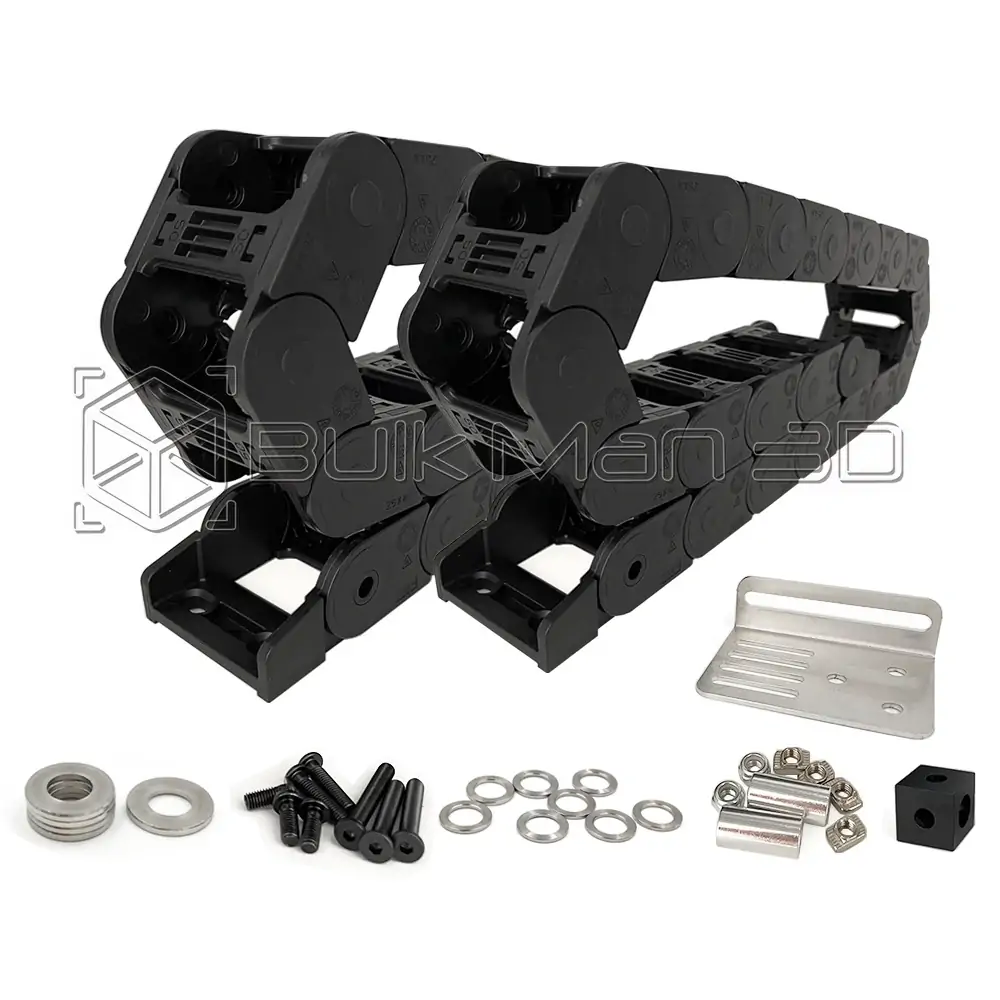

Parts:
- 2x Drag Chain QS25X50 R40
- 1x Cable Drag Chain Bracket
- 4x M5 Drop-in Tee Nuts
- 6x Slot Washer – 15x5x2mm
- 10x Precision Shim – 10x5x1mm
- 2x Nylon Locking Nuts M5
- 2x Metric Aluminium Spacer – 20mm
- 3x Low profile Screw – M5x15mm
- 1x Low profile Screw – M5x35mm
- 2x Low profile Screw – M5x30mm
- 2x Low profile Screw – M5x20mm
- 1x Cube Bracket
|
3 Piece Pack for Machine Sizes:
- 1000 x 1000mm
- 1000 x 1500mm
- 1500 x 1000mm
|
Parts:
- 3x Drag Chain QS25X50 R40
- 1x Cable Drag Chain Bracket
- 4x M5 Drop-in Tee Nuts
- 6x Slot Washer – 15x5x2mm
- 10x Precision Shim – 10x5x1mm
- 2x Nylon Locking Nuts M5
- 2x Metric Aluminium Spacer – 20mm
- 3x Low profile Screw – M5x15mm
- 1x Low profile Screw – M5x35mm
- 2x Low profile Screw – M5x30mm
- 2x Low profile Screw – M5x20mm
- 1x Cube Bracket
|
| 4 Piece Pack for Machine Size:
|
Parts:
- 4x Drag Chain QS25X50 R40
- 1x Cable Drag Chain Bracket
- 4x M5 Drop-in Tee Nuts
- 6x Slot Washer – 15x5x2mm
- 10x Precision Shim – 10x5x1mm
- 2x Nylon Locking Nuts M5
- 2x Metric Aluminium Spacer – 20mm
- 3x Low profile Screw – M5x15mm
- 1x Low profile Screw – M5x35mm
- 2x Low profile Screw – M5x30mm
- 2x Low profile Screw – M5x20mm
- 1x Cube Bracket
|
Cable Drag Chain Spec:
| Model |
Inner Height |
Inner Width |
Outer Height |
Outer Width |
Bending Radius |
Bore Diameter (mm) |
Hole Distance (mm) |
|
G |
F |
T |
E |
R |
D |
E |
A |
B |
C |
| QS25 |
25 |
50 |
35 |
65 |
R40 |
6.4 |
11 |
38 |
11.4 |
41 |
