Citronic CAB-12 Passive Cabinet Speaker

Description

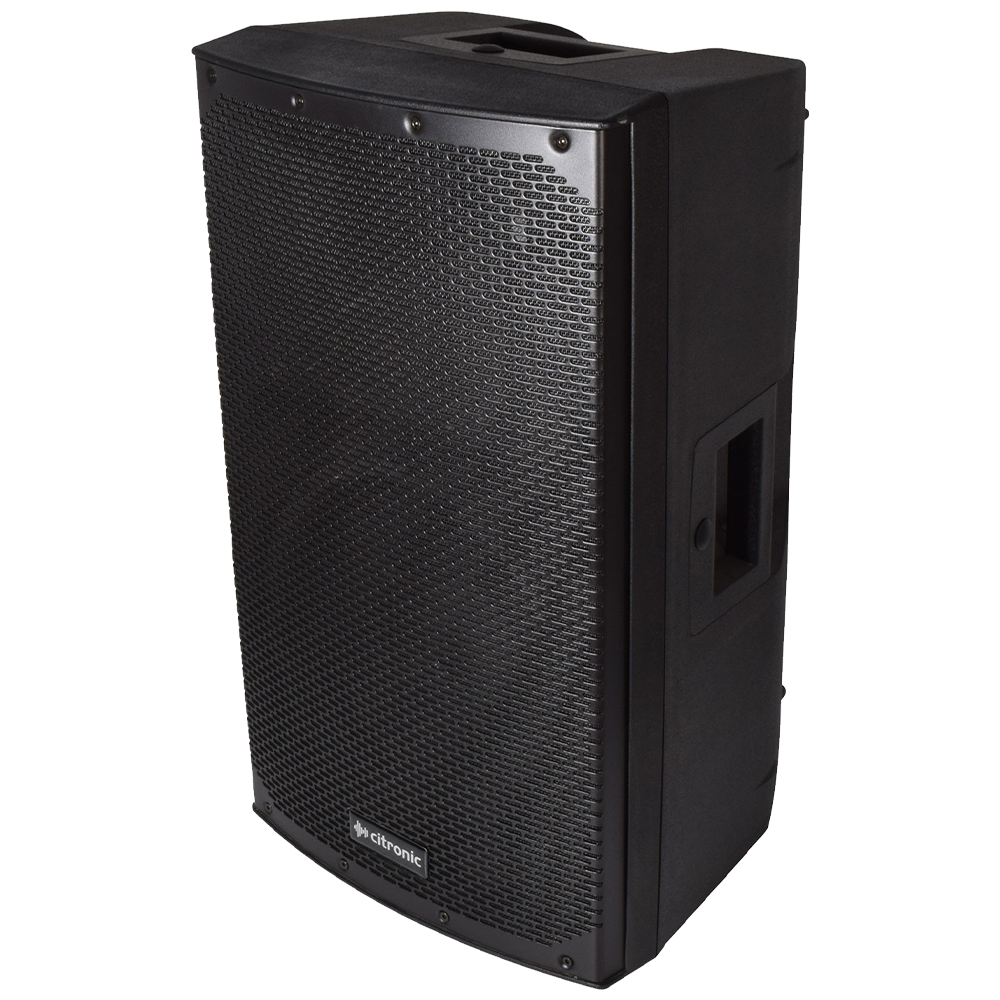

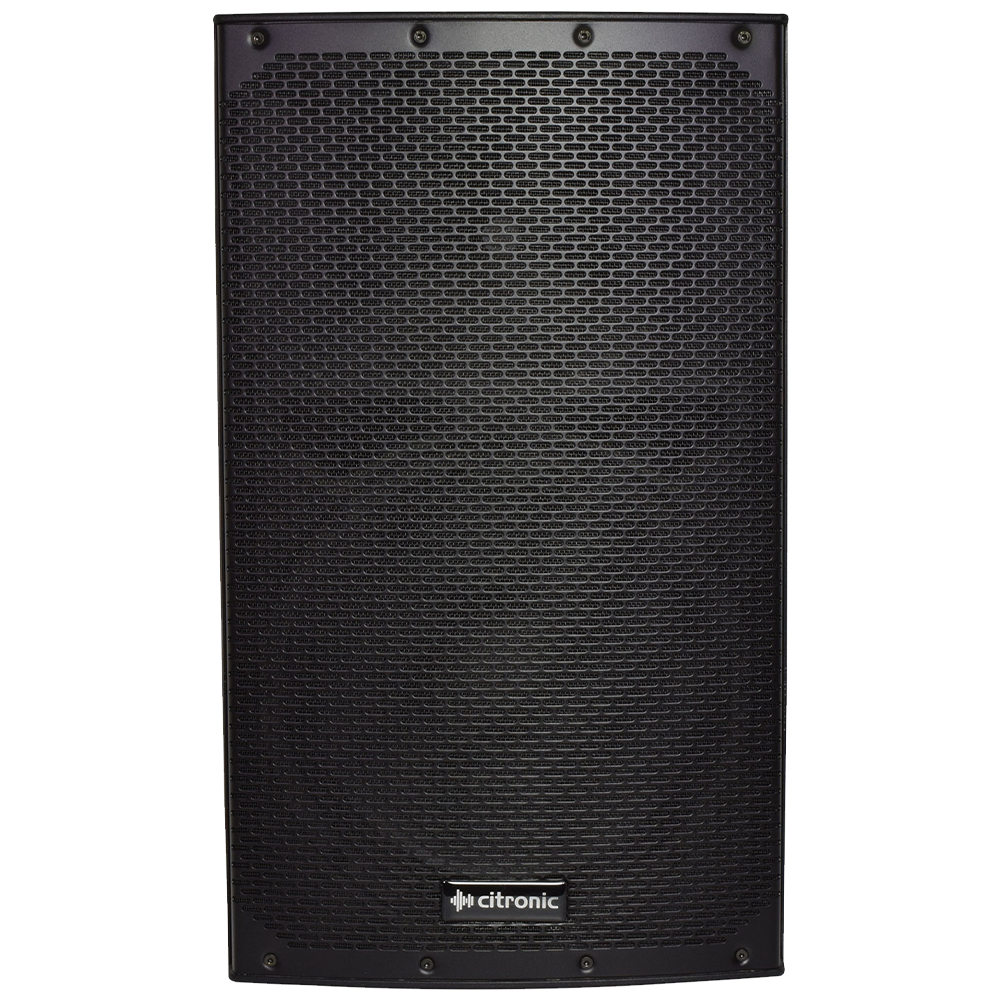

Citronic CAB-12 300W 12″ 8Ω passive cabinet speaker

Full-range speaker cabinets housed in a compact and lightweight moulded Polypropylene (PP) enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of the 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.

• Integral top and side carry handles
• 35mm pole mount
• 2 x SPK sockets
• Housing material Injection moulded polypropylene
• Impedance: 8 Ohms
• Dispersion: 90° x 60°
• Power handling rms: 300W
• LF driver: 300mmØ (12″)
• Voice coil: 50mmØ (2.00″)
• HF driver: Ti CD 35mmØ (1.35″) Ti CD
• Frequency response: 53Hz – 19kHz
• Sensitivity @ 1W/1m: 95dB
• SPL max:. 119dB
• Crossover frequency: 2.8kHz
• Dimensions: 603 x 355 x 350mm
• Weight: 13.2kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
