Citronic LHF-CM10 Chassis Speaker

Description

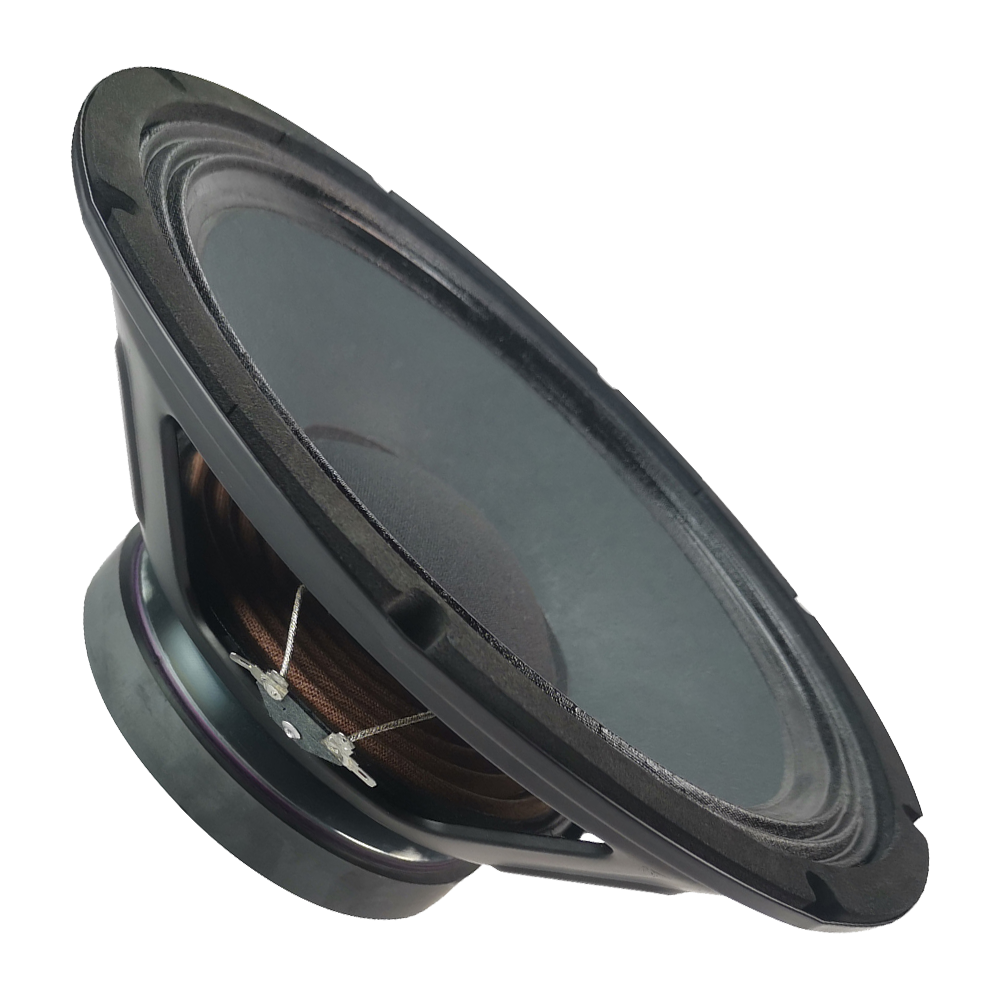

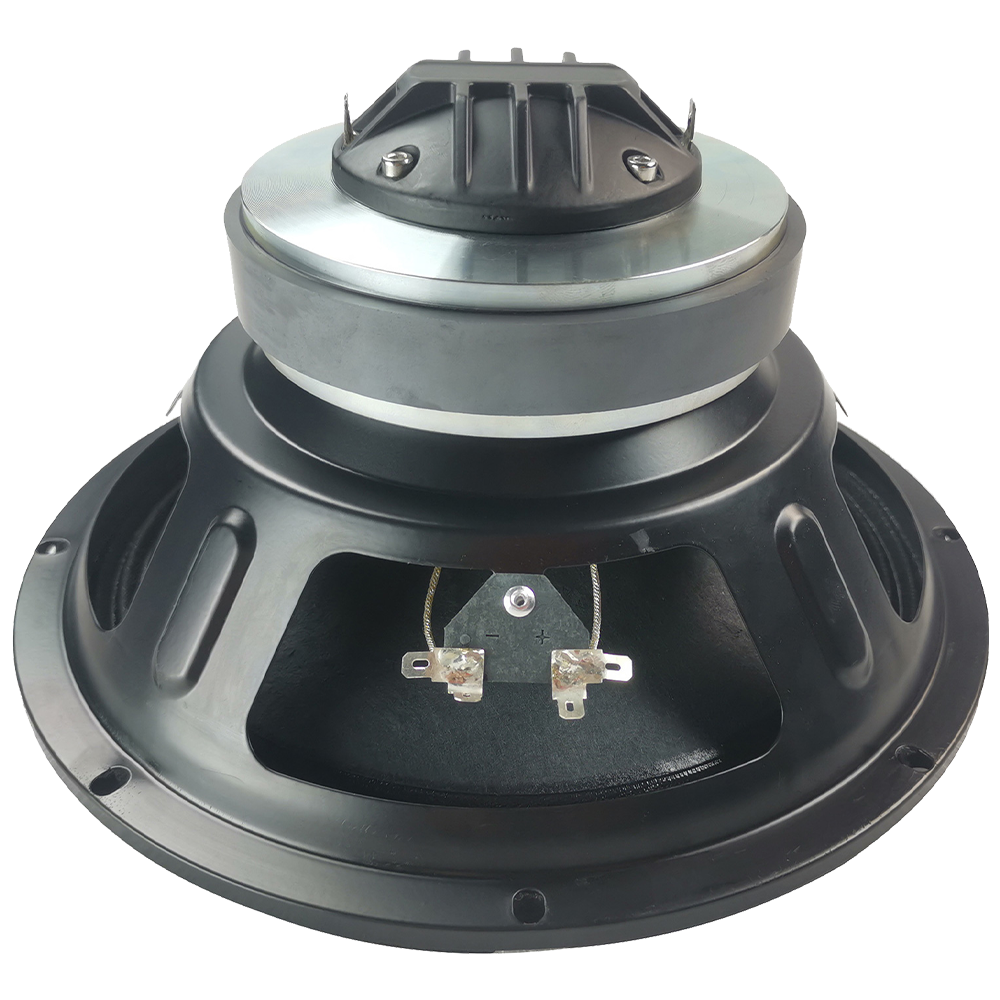

Citronic LHF-CM10 10″ 250W + 40W RMS coaxial chassis speaker

Dual coaxial driver comprising a high power main woofer with a concentric tweeter driver covered by a mesh dust cap. Provides full range output with phase alignment for foldback or PA applications. A direct replacement for the CM-series active and passive wedge monitors.

• High power woofer with coaxial HF driver
• 8 Ohm
• Main driver: 250mmØ (10″) reinforced paper cone
• HF driver: 44mmØ (1.75″) Ti compression driver
• Impedance: 8 ohms
• Power handling : rms: 250W (LF), 40W (HF)
• Power handling : max: 500W (LF), 80W (HF)
• Sensitivity: 94dB (LF), 106dB (HF)
• Frequency response: 40Hz – 20kHz
• Dimensions: 165 x 250mmØ
• Weight: 1.8kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
