Description

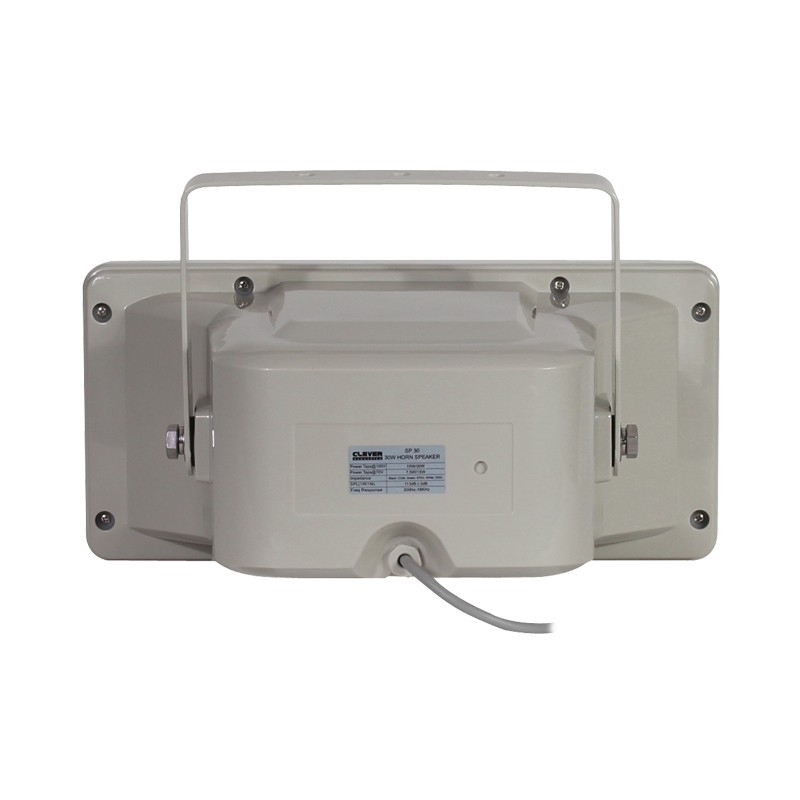

Clever Acoustics SP 30 30w 100v line wide range ‘music’ horn speaker

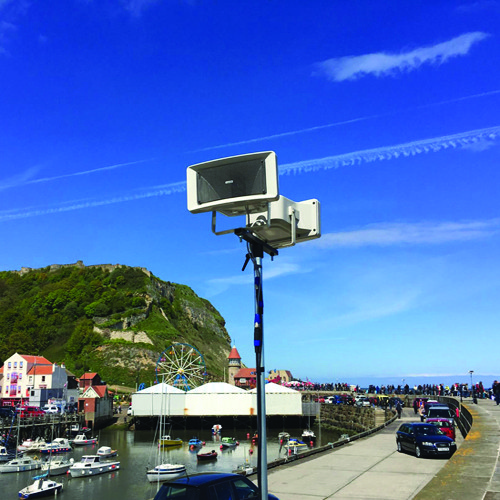

SP 30 100V 30w music horn speaker is an ideal paging and sound reinforcement horn loudspeaker/projector for large open, outdoor spaces. Utilising a full range 5″ driver design the SP 30 delivers a wider frequency range than traditional horn loudspeakers however please note that SP 30 horn speakers are not re-entrant and their maximum SPL is lower than traditional horn speakers with pressure drivers
- 30 watt RMS horn speaker
- Internal 100v / 70v transformer
- Extra wide sound dispersion angle
- Multiple power taps
- ABS enclosure
- Supplied with adjustable mounting bracket
- Power taps @ 100v: 15w, 30w
- Power taps @ 70v: 7.5w, 15w
- Impedance: 330Ω, 670Ω
- Sensitivity (1W/1m): 95dB (±3dB)
- Maximum SPL (Rated W/1m): 113dB – Please note that SP 30 horn speakers are not re-entrant and their maximum SPL is lower than traditional horn speakers
- Frequency response: 300Hz-18kHz
- Drivers: 5″ full range
- Connections: Flying lead
- Cable colour code: Black = COMmon, Green = 15w @ 100v (670Ω), White = 30w @ 100v (330Ω)
- Dimensions: 175 x 370 x 275mm
- Weight: 3.1kg
- IP rating: IP66
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
