Description

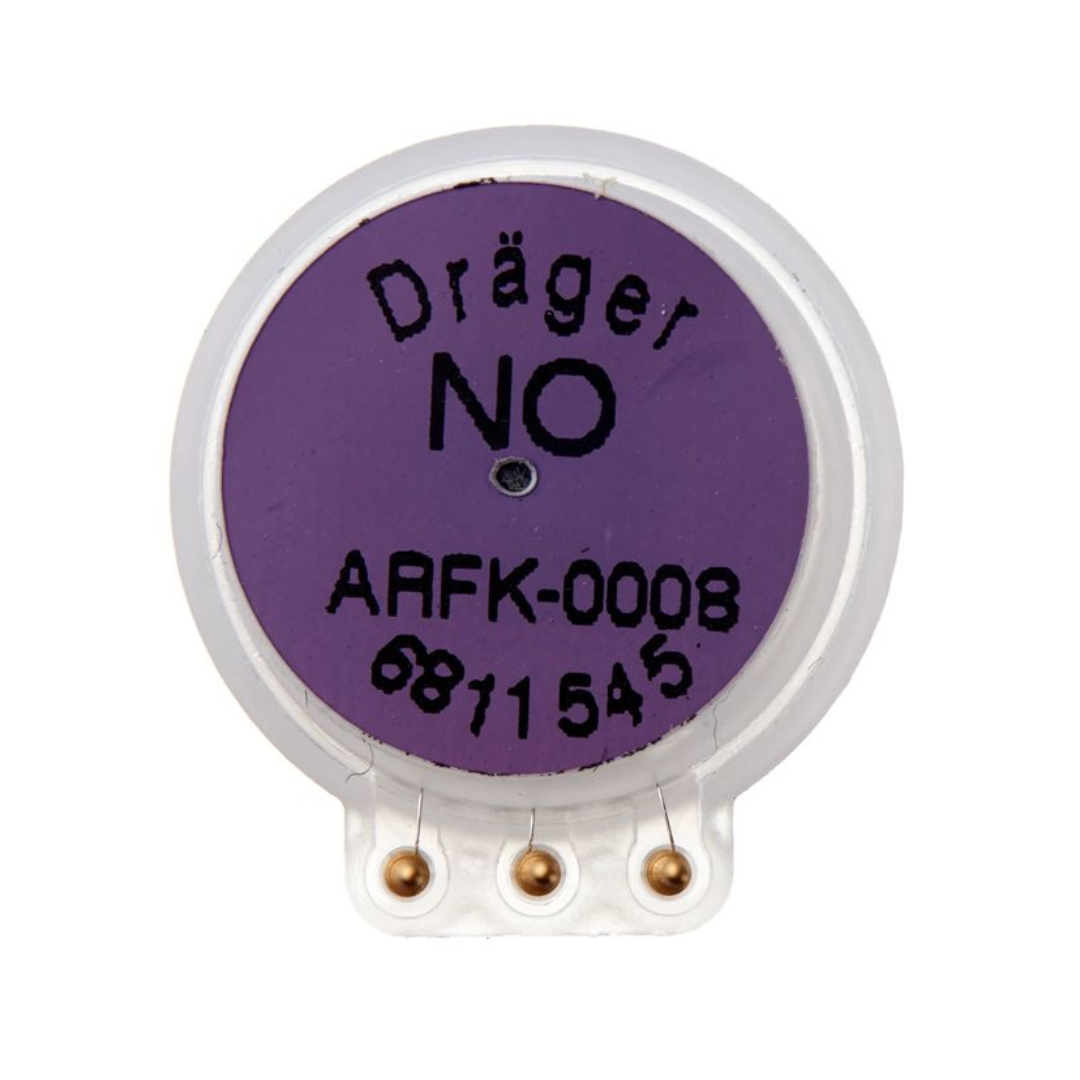

The Draeger Sensor XXS NO 0 – 200 ppm 6811545 delivers a fast response time (≤ 10 seconds) and excellent linearity, ensuring accurate measurements. The sensor is selective to NO, with no impact from NO₂ concentrations below 20 ppm, making it ideal for reliable and focused gas detection in industrial and environmental settings.
DrägerSensor XXS NO – 6811545
The XXS family covers detection for a broad spectrum of gases commonly encountered in industrial hygiene, confined space monitoring, firefighting, and emergency response.
Hazmat Resource can help build a sensor configuration
for your gas detection needs
Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .
Email us at [email protected]
Fast Quote
XXS in size – XXL in performance
Portable gas detectors for daily use must be small, light, and robust, yet deliver top-tier performance. Recognizing this, we set out to drastically reduce the size and weight of our sensors. The result is our miniaturized XXS DrägerSensor generation, engineered for high sensitivity, improved gas selectivity, outstanding long-term stability, and rapid response times. These advancements mean users are quickly and dependably alerted to dangerous gases, significantly boosting workplace safety.

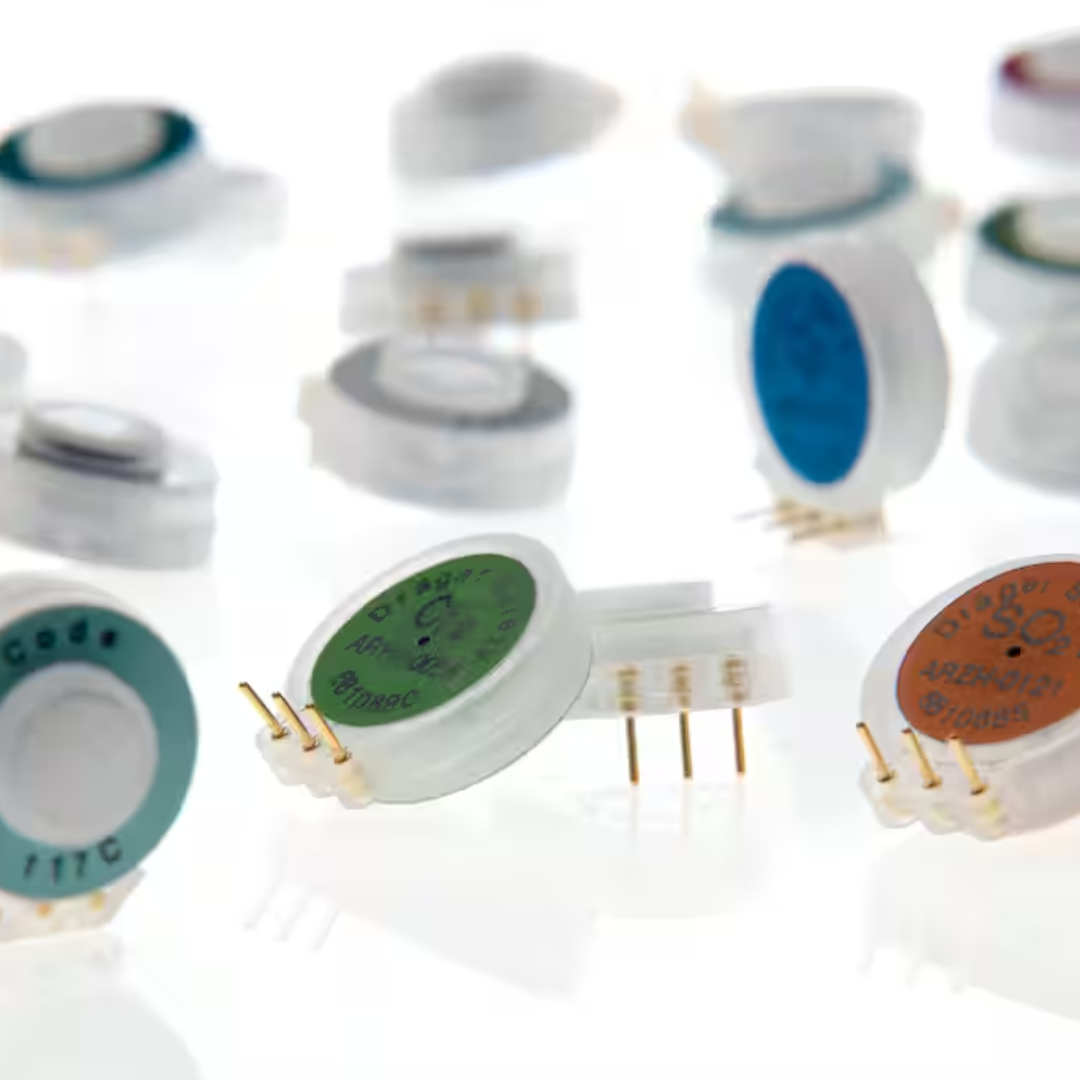

Sensor diversity
Alongside the XXS sensors for H₂S, CO, and O₂, Dräger also offers options for detecting hydrides, amines, and organic vapors. The XXS OV sensors come preloaded with sensitivity data for over a dozen different gases, allowing users to monitor multiple hazards with just one sensor.

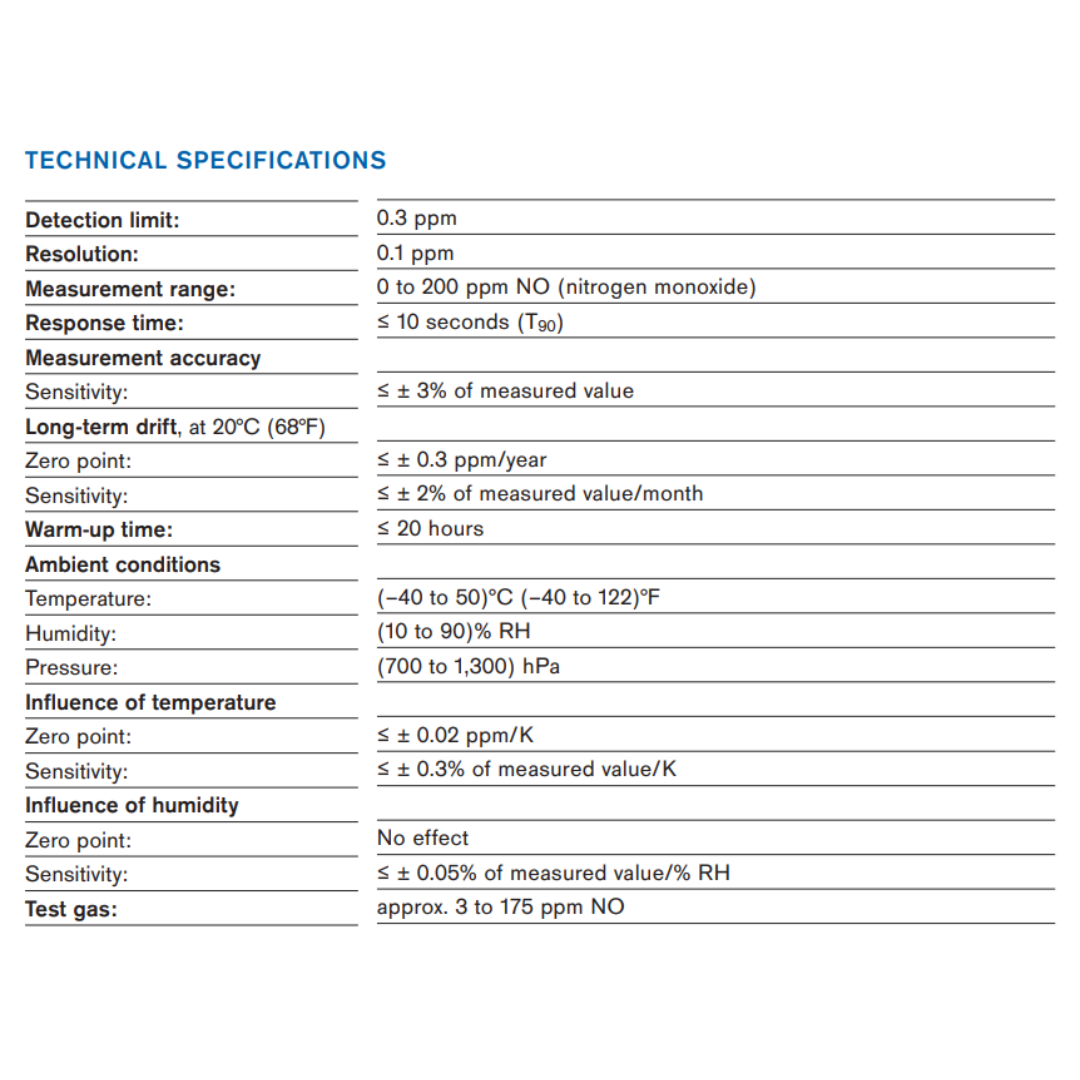

Technical Specifications
| Detection Limit: | 0.3 ppm |
| Resolution: | 0.1 ppm |
| Measurement Range / relative sensitivity: | 0 to 200 ppm NO (nitrogen monoxide) |
| Response Time: | ≤ 10 seconds (T90) |
| Measurement accuracy | |
| Sensitivity: | ≤ ± 3% of measured value |
| Long-term drift, at 20°C (68°F) | |
| Zero point: | ≤ ± 0.3 ppm/year |
| Sensitivity: | ≤ ± 2% of measured value/month |
| Warm up time: | ≤ 20 hours |
| Ambient conditions | |
| Temperature*: | (–40 to 50)°C (–40 to 122)°F |
| Humidity*: | (10 to 90)% RH |
| Pressure: | (700 to 1,300) hPa |
| Influence of temperature | |
| Zero point: | ≤ ± 0.02 ppm/K |
| Sensitivity: | ≤ ± 0.3% of measured value/K |
| Influence of humidity | |
| Zero point: | No effect |
| Sensitivity: | ≤ ± 0.05% of measured value/% RH |
| Test gas: | approx. 3 to 175 ppm NO |
Internal development
We design and build our sensors in-house, using our own engineering expertise. This gives us full control over quality and ensures accurate readings. It also means the sensors work seamlessly with our complete range of Dräger gas detectors.
Low operating costs
Our sensors provide reliable readings and require calibration only rarely. Depending on the type, they can last up to five years.
XXS NO Technical Manual PDF
Draeger Sensor Handbook PDF
Draeger Portable Gas Detection Manual PDF
Two in One
Note that some sensors that Draeger offers a ‘dual’ sensors bring together the capabilities of two sensors in one, allowing for simultaneous gas detection. They make it possible to measure both oxygen concentration (O₂ % by volume) and low-level gases like carbon monoxide (CO) or hydrogen sulfide (H₂S) in ppm—using just a single sensor. It’s a smarter, more efficient way to monitor multiple hazards at once.
About Dräger
Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!
Dräger VOICE – your hazmat-based safety product finder
Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances
Need more information?
Fore more information about the NO electrochemical gas sensor, contact us today!
Draeger XXS Sensors Nitrogen Monoxide
What is a NO sensor used for?
A nitrogen monoxide (NO) sensor is used to detect and measure NO gas, which is commonly found in combustion processes and industrial environments. Accurate detection is important for workplace safety, emission control, and environmental monitoring.
-
Selectively measures nitrogen monoxide (NO)
-
Not affected by NO₂ concentrations below 20 ppm
-
Fast response time (≤ 10 seconds)
-
Ideal for industrial safety and environmental compliance
A nitrogen monoxide (NO) sensor is used to detect and measure NO gas, which is commonly found in combustion processes and industrial environments. Accurate detection is important for workplace safety, emission control, and environmental monitoring.
-
Selectively measures nitrogen monoxide (NO)
-
Not affected by NO₂ concentrations below 20 ppm
-
Fast response time (≤ 10 seconds)
-
Ideal for industrial safety and environmental compliance
