Description

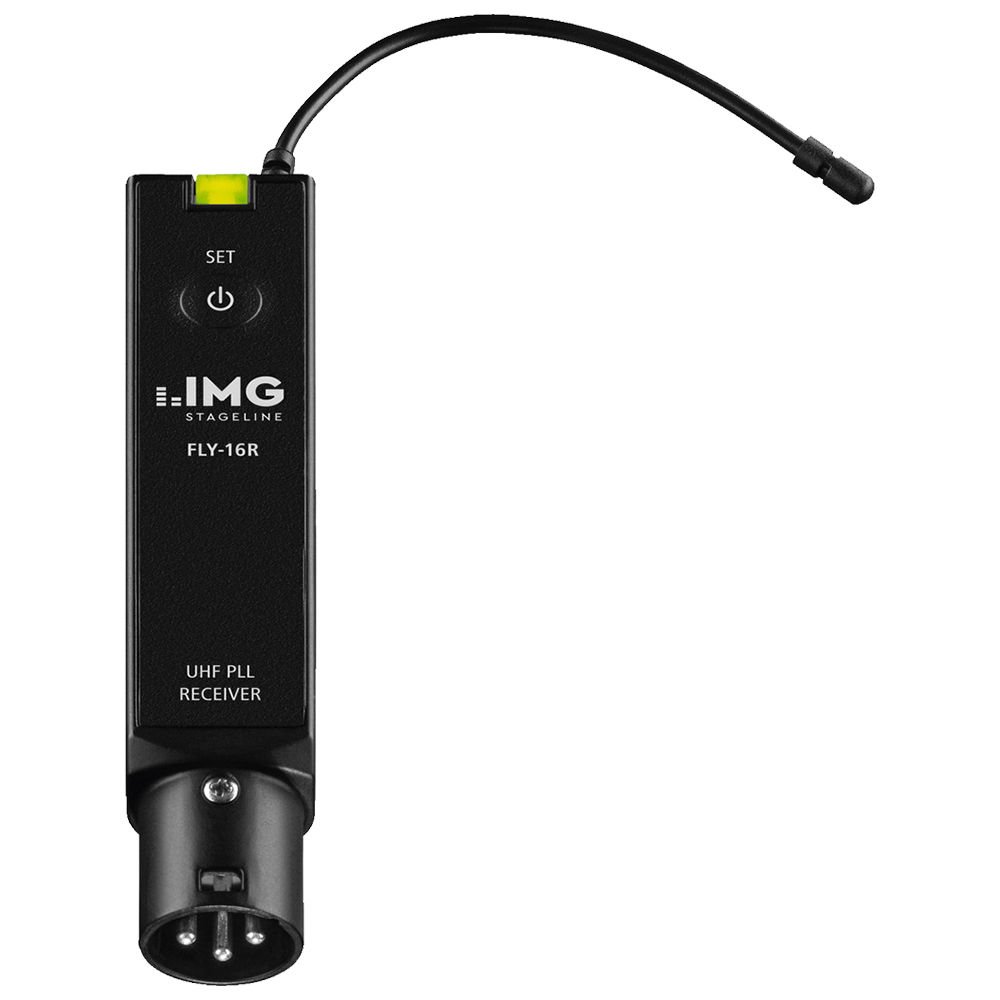

IMG Stageline FLY-16R 16-channel wireless PA audio receiver with UHF PLL technology on Ch 65
Requires a UK Ch 38 operating licence.
- For analogue wireless transmission of line level audio signals in PA systems
- Frequency range: 823-832 MHz
- 16 selectable pre-programmed channels
- Up to 8 intermodulation-free channels
- Audio transmission range: 30-17,000 Hz
- Multiple receivers FLY-16R can be operated via one transmitter FLY-16T
- Indication for channel and battery status
- 3-pole XLR jack
- Power supply via 1 x 1.5 V battery AA size (not supplied) or micro USB jack (5 V/150 mA)
- Supplied with USB cable
- Description: 16-channel wireless PA audio receiver
- Carrier frequency range: 823-832 MHz
- Audio frequency range: 30-17,000 Hz
- Channels: 16
- THD: 0.3%
- Admissible ambient temperature: 0-40 °C
- Power supply: 1 x 1.5 V battery AA size, DC 5 V/150 mA via micro USB jack
- Dimensions: 22 x 23 x 102 mm
- Weight: 25 g
Please note that the FLY-16 range is not suitable for directly connecting to microphones or microphone level signals.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
