Breakthrough Mark Levinson Performance for Less: Nº 5805 Integrated Amplifier Has Dual-Mono Circuitry, Pure Direct Signal Path, MM/MC Phono Preamp, PrecisionLink II DAC

When you think of premier Mark Levinson gear, five-figure price tags normally come to mind. Which helps explain why the fully loaded Nº 5805 integrated amplifier constitutes such a breakthrough. Nothing here has been reduced. All of the company’s hallmark technology, trailblazing engineering, refined luxury, and elegant finishes remain in tact. It is meticulously handcrafted in the U.S.A. The only change pertains to a cost that immediately makes the brand more accessible to a wider audience that will get to experience the connoisseur-level fidelity, authoritative control, and do-anything flexibility that many fortunate audio listeners have known for decades.

Fully discrete, direct-coupled, dual-monaural, line-level preamp circuitry in the form of the trademarked PureDirect signal path beats as the heart of the Stereophile Class A Recommended Nº 5805. A unique single gain stage mated to a digitally controlled resistor network for volume adjustment maintains maximum signal integrity and wide-open bandwidth. All three stereo line level inputs use customized Mark Levinson RCA connectors possesses their own individual high-reliability signal switching relays.

With Nº 5805, listening to vinyl or high-resolution files in sensory-awakening sound is a breeze. A hybrid gain MM/MC phono preamplifier integrates discrete components from the company’s Nº 500 Pure Phono stage as well as an active/passive RIAA equalizer with precision resistors. Equipped with the Mark Levinson Precision Link II DAC and four digital inputs, it handles up to 32-bit/192kHz and 2x DSD. Full MQA decoding and aptX HD Bluetooth further take care of your streaming needs. if you want to plug in ‘phones, a MainDrive headphone output employs a preamplifier output stage specifically designed with the current and power capacity to directly drive any pair you connect.

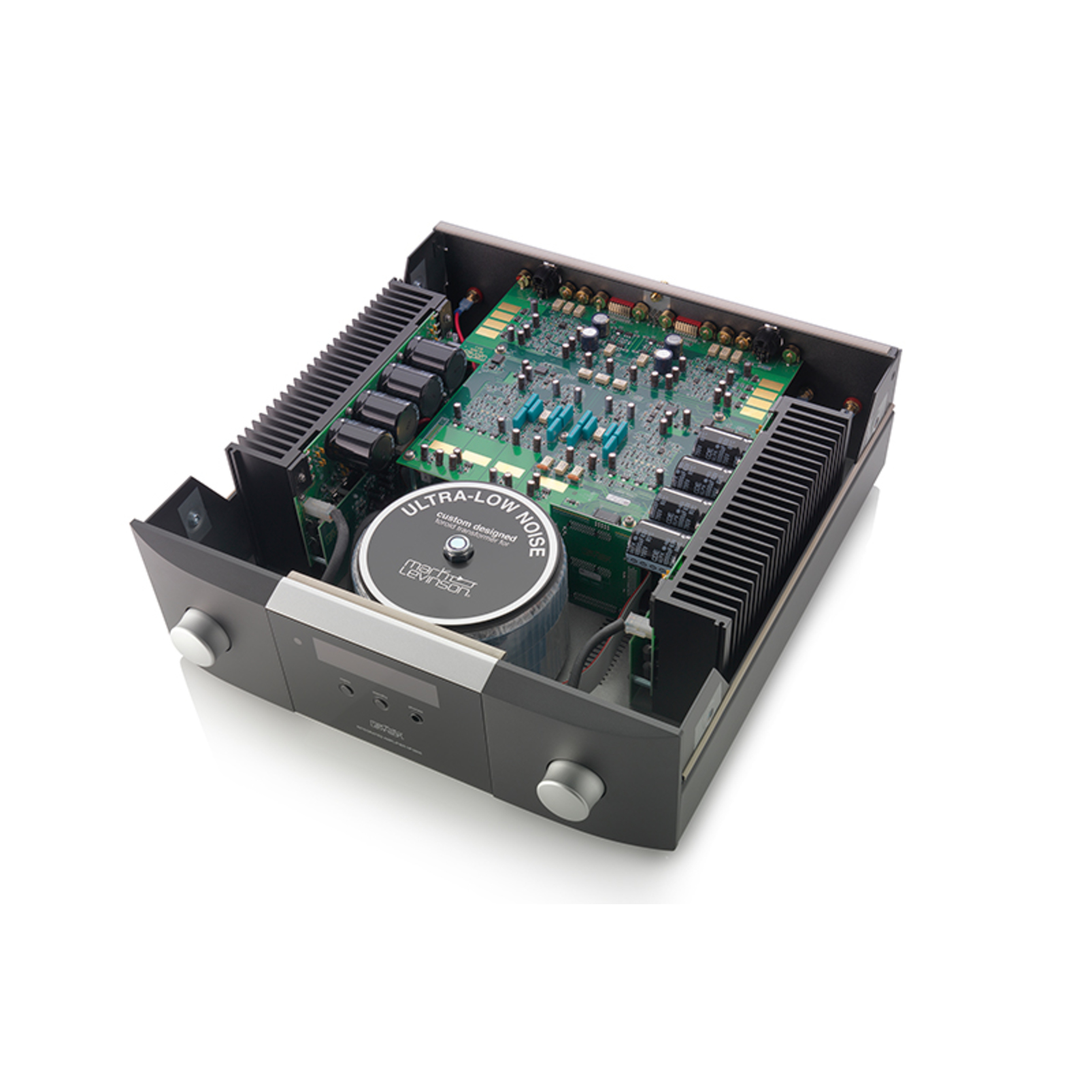

In the amplification stage, fully discrete, direct-coupled, Class AB amplifier channels are fueled by an oversized (500+ VA) toroidal transformer with individual secondary windings for the left and right channels. The voltage gain stage employs trickle-down topology directly from the acclaimed Nº 534 amplifier and gets mated to an output stage comprising two high-speed driver transistors. Two Thermal-Trak devices in a unique configuration guarantee stable output bias regardless of load or temperature. Four 10,000-microfarad capacitors per channel, located directly on the output stage circuit board, provide enough current for conservatively rated 125Wpc (eight ohms) and nearly 250Wpc at four ohms.

Nº 5805’s fortuitousness extends to its system integration abilities and Ethernet, USB, RS-232, IR input, and 12V communication ports. A solid aluminum remote control, Mark Levinson web support, home-theater pass-thru mode, and stunning industrial looks complete an integrated amplifier that takes you into another musical dimension. 100% Music Direct Guaranteed.

Categories: , ,

Description

ANALOG LINE STAGE (No5805 ONLY)
Line Input Impedance Volume Control
Gain
Output Impedance Output Overload Frequency Response Total Harmonic Distortion Signal-To-Noise Ratio
Input Sensitivity System Gain
PHONO STAGE (No5805 ONLY)
RIAA Frequency Response Infrasonic Filter
MOVING-MAGNET MODE
Input Resistance
Input Capacitance
Gain
Total Harmonic Distortion Signal-To-Noise Ratio
Maximum Input Level
MOVING-COIL MODE
Input Resistance
Gain
Total Harmonic Distortion Signal-To-Noise Ratio
Maximum Input Level
: Balanced (XLR): 20kΩ; Single-ended (RCA): 10kΩ
: Balanced; voltage mode; digitally-controlled resistor network
: 8.5dB maximum
: 55Ω
: >4.5V RMS
: 20Hz to 20kHz, ±0.03dB; <2Hz to 210kHz, +0.1/–3dB (At unity gain volume setting) : <0.01%,1kHz; <0.03%, 20 kHz; 2V RMS output (At unity gain volume setting) : >96dB (20Hz to 20kHz, A-weighted); >93dB (20Hz to 20kHz, wideband, unweighted)
(Referred to 2V RMS output, unity gain volume setting)
: 53mV RMS at line input for 2.83V RMS at speaker output, maximum volume setting : 34.5dB, line input to speaker output, maximum volume setting
: 20Hz to 20kHz, ±0.3dB
: Selectable; 20Hz, 1st order (6dB/octave)
: 47kΩ
: Selectable; 20, 70, 120, 170pF
: 39dB at 1kHz
: <0.01%, 1kHz, 2V RMS output; <0.05%, 20kHz, 2V RMS output : >90dB (20Hz to 20kHz A-weighted, referred to 2V RMS output);
>78dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output) : >190mV at 1kHz; >1.6V at 20kHz
: Selectable, 37Ω to 1000Ω
: 69dB at 1kHz
: <0.01%, 1kHz, 2V RMS output; <0.06%, 20kHz, 2V RMS output : >71dB (20Hz to 20kHz A-weighted, referred to 2V RMS output);
>66dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output) : >6.5mV at 1kHz; >19mV at 20kHz
DIGITAL-TO-ANALOG CONVERTER STAGE
Output Voltage Frequency Response
Total Harmonic Distortion
: 5.7V RMS at maximum volume/full scale (0dBFS)
: 20Hz to 20kHz, +0/–0.02dB (192kHz/24 bit signal); 20Hz to 20kHz, +0/–0.05dB (44.1kHz/16 bit signal)

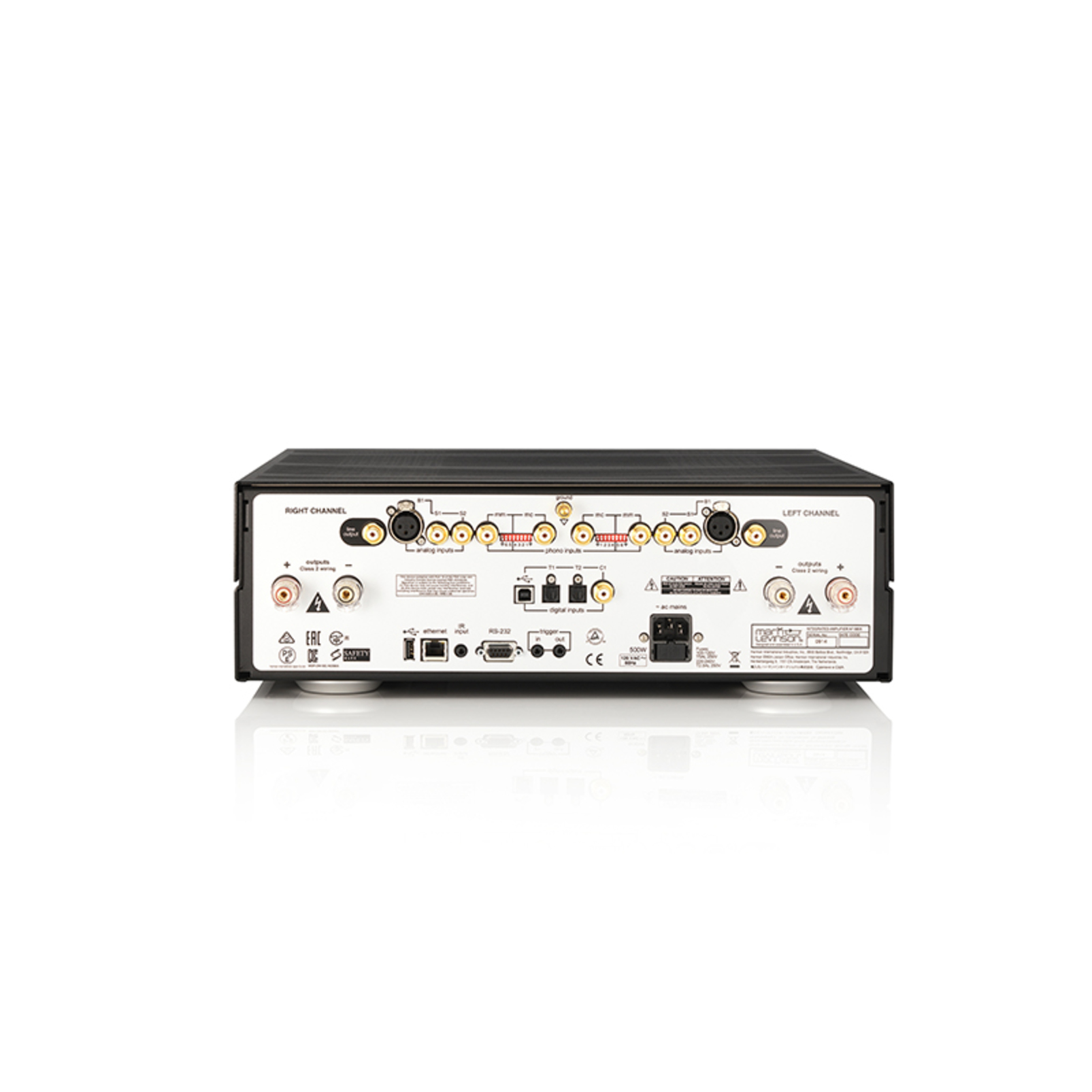

: <0.0025%, 20Hz to 20kHz, at 3V RMS output (192kHz/24 bit signal); <0.003%, 20Hz to 20kHz, at 3V RMS output (44.1kHz/16 bit signal); <0.006%, 90kHz, at 3V RMS output (192kHz/24 bit signal) Signal-To-Noise Ratio Sample Rates/Bit Depth Digital Processing HEADPHONE OUTPUT Total Harmonic Distortion Output Overload Signal-To-Noise Ratio Output Impedance AMPLIFIER SECTION Frequency Response Signal-To-Noise Ratio Total Harmonic Distortion + Noise Output Power Output Impedance Damping Factor GENERAL Analog Input Connectors (No5805 Only): • 1 pair balanced line-level inputs (XLR) • 2 pairs single-ended line-level inputs (RCA) • 1 pair single-ended moving-coil phono inputs (RCA) • 1 pair single-ended moving-magnet phono inputs (RCA) Digital Audio Connectors: • 2 optical digital inputs (Toslink) • 1 asynchronous USB digital input (USB-B) • No5805: 1 coaxial digital S/PDIF input (RCA) • No5802: 2 coaxial digital S/PDIF input (RCA) • No5802: 1 balanced digital AES/EBU input (XLR) Output Connectors: • 1 pair single-ended line-level outputs (RCA) • 2 pairs loudspeaker outputs (High-current binding posts with banana sockets; accept spade lugs with 1⁄4”/6.3mm spacing up to 1⁄8”/3mm thick) Control Connectors: • 1 RS-232 port (DB9 connector) • 1 IR input (1⁄8”/3.5mm phone jack) • 1 programmable 12V DC trigger output (1⁄8”/3.5mm phone jack), 100mA maximum • 1 programmable 12V DC trigger input (1⁄8”/3.5mm phone jack) • 1 Ethernet port (RJ-45 connector) : >100dB (20Hz to 20kHz, 192kHz/24 bit signal, A-weighted);
>98dB (20Hz to 20kHz, 192kHz/24 bit signal, wideband, unweighted); >94dB (20Hz to 20kHz, 44.1kHz/16 bit signal, A-weighted);
>92dB (20Hz to 20kHz, 44.1kHz/16 bit signal, wideband, unweighted) (referred to 2V RMS output)
: PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, or 384kHz; up to 32 bits; DSD: Native or DoP; single, double, or quad speed (2.8, 5.6, or 11.2MHz)
: Full MQA decoding; PCM: Seven user-selectable digital filter settings; user-selectable up-sampling to 352.8/384kHz; DSD: Four user-selectable digital filter settings
: <0.04%, 20Hz and 1kHz, 2V RMS output, 30Ω load; <0.10%, 20kHz, 2V RMS output, 30Ω load : >3.3V RMS, 30Ω load
: >91dB (20Hz to 20kHz, A-weighted, referred to 2V RMS output);
>87dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output)
: <2.5Ω, 20Hz to 20kHz
: <2Hz to 20kHz, +0/–0.2dB; <2Hz to 100kHz, +0/–3dB : >103dB (20Hz to 20kHz, A-weighted); >100dB (20Hz to 20kHz, wideband, unweighted)
: <0.035% at 1kHz, 125W, 8Ω; <0.18% at 20kHz, 125W, 8Ω : 125W RMS per channel at 8Ω, 20Hz to 20kHz
: <0.098Ω, 20Hz to 10kHz; <0.11Ω at 20kHz : >82, 20Hz to 10kHz; >72 at 20kHz (All referred to 8Ω)
Mains Voltage:
• 100VAC, 115VAC, or 230VAC, factory set
Power Consumption:
• Standby, “Green” mode: <0.4W
• Standby, “Power Save” mode: 7W
• No5805: Standby, “Normal” mode: 70W
• No5802: Standby, “Normal” mode: 45W
• No5805: Power on, quiescent: 120W
• No5802: Power on, quiescent: 95W
• No5805: Power on, both channels at 1⁄8 rated power: 240W • No5802: Power on, both channels at 1⁄8 rated power: 215W • Power on, maximum: 500W
Dimensions/Weight (Unit):
• Height: 5.72”/145mm
• Height without feet: 5.25”/133mm • Width: 17.25”/438mm
• Depth: 19.98”/507mm
• Weight (No5805): 62 lbs/28.1kg
• Weight (No5802): 61 lbs/27.6kg
Dimensions/Weight (With Packaging):
• Height: 13.0”/330mm
• Width: 24.0”/610mm
• Depth: 28.0”/711mm
• Weight (No5805): 73 lbs/33.0kg
• Weight (No5802): 72 lbs/32.6kg
