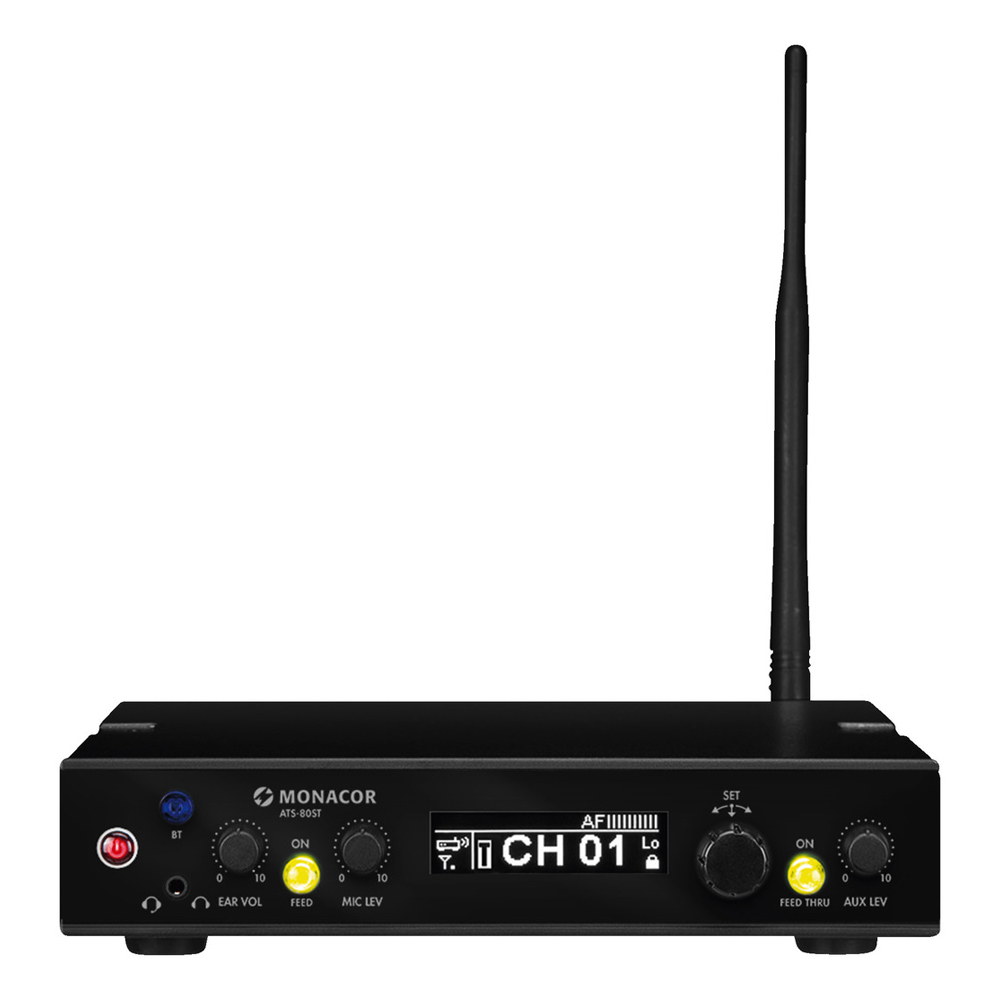

Monacor ATS-80ST Ch. 70 UHF PLL Transmitter

Description

Monacor ATS-80ST 42-channel digital stationary PLL transmitter on channel 65 and 70

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz

• As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
• High resistance to interference due to digital transmission
• High operating range
• Frequency range optimised for voice transmissions
• Interference-free parallel operation of up to 42 different channels possible
• 42-channel stationary PLL transmitter for microphone operation and audio line signals. In combination with ATS-80R, also suitable for interpretation systems.
• Stereo audio line input via RCA L/R
• Microphone input via combination jack (XLR/6.3 mm jack)
• Mono audio line output via RCA
• Loop input and loop output via 6.3 mm jack
• Adjustable headphone output for monitoring
• Removable antenna (TNC)
• Supports Bluetooth
• USB audio programming interface
• High-contrast OLED display
• Channel name and ID can be edited
• Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
• Operating range: approx. 100 m
• Power is provided via encl. plug-in power supply
• Dimensions: 215 x 51 x 210 mm
• Weight: 1.25 kg

Technical specifications:

• Description: 42-channel digital PLL transmitting unit
• Carrier frequency range: 823-832 MHz, 863-865 MHz
• Channels: 1
• Admissible ambient temperature: 0-40 °C
• Transmitting power: ≤ 20 mW/≤ 10 mW
• Operating range: 100 m
• Power supply transmitter: via enclosed power supply
• Width transmitter: 215 mm
• Height transmitter: 51 mm
• Depth transmitter: 210 mm
• Weight transmitter: 1.25 kg
• Connections transmitter: 1 x XLR/6.3 mm jack (mic in), 1 x RCA L/R (line in), 1 x RCA L/R (line out), 1 x 6.3 mm jack (loop in), 1 x 6.3 mm jack (loop out), 3.5 mm jack (headphones)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
