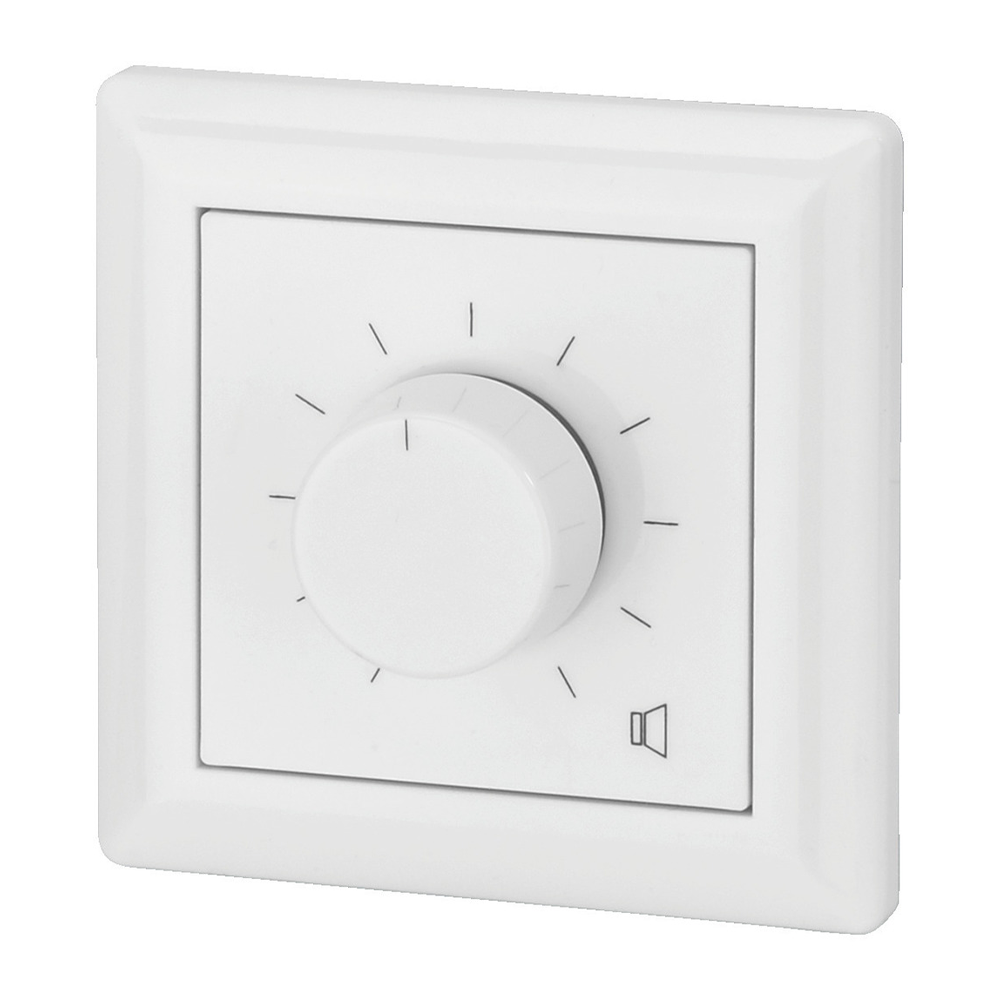

Monacor ATT-506PEU Wall-Mounted PA Volume Control

Description

Monacor ATT-506PEU 6w wall mount 100v line PA volume control

Wall-mounted PA volume control with 24 V emergency priority relay:

• Back-box not included – please note these items are designed for the EU market and fit EU back-boxes. However, they will fit 47mm or deeper UK single-gang back-boxes by making the attenuator fixing holes slightly larger
• Power rating: 6 W
• Attenuation in 10 steps, position 0 is OFF
• For 100 V transmission technology
• White plastic front panel and knob
• Also suitable for already existing series of switches with standard cover frames (cutout: 50 mm or 55 mm)
• Flush-mounting into standard 60 mm wall sockets
• Plug-in screw terminal

Technical specifications:

• Description wall-mounted PA volume control
• Frequency range 50-18,000 Hz
• Power rating 6 W
• Priority facility yes
• Dimensions 80 x 80 x 67 mm
• Mounting depth 45 mm
• Weight 212 g

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
