Monacor PA-102 Mixer Amplifier

Description

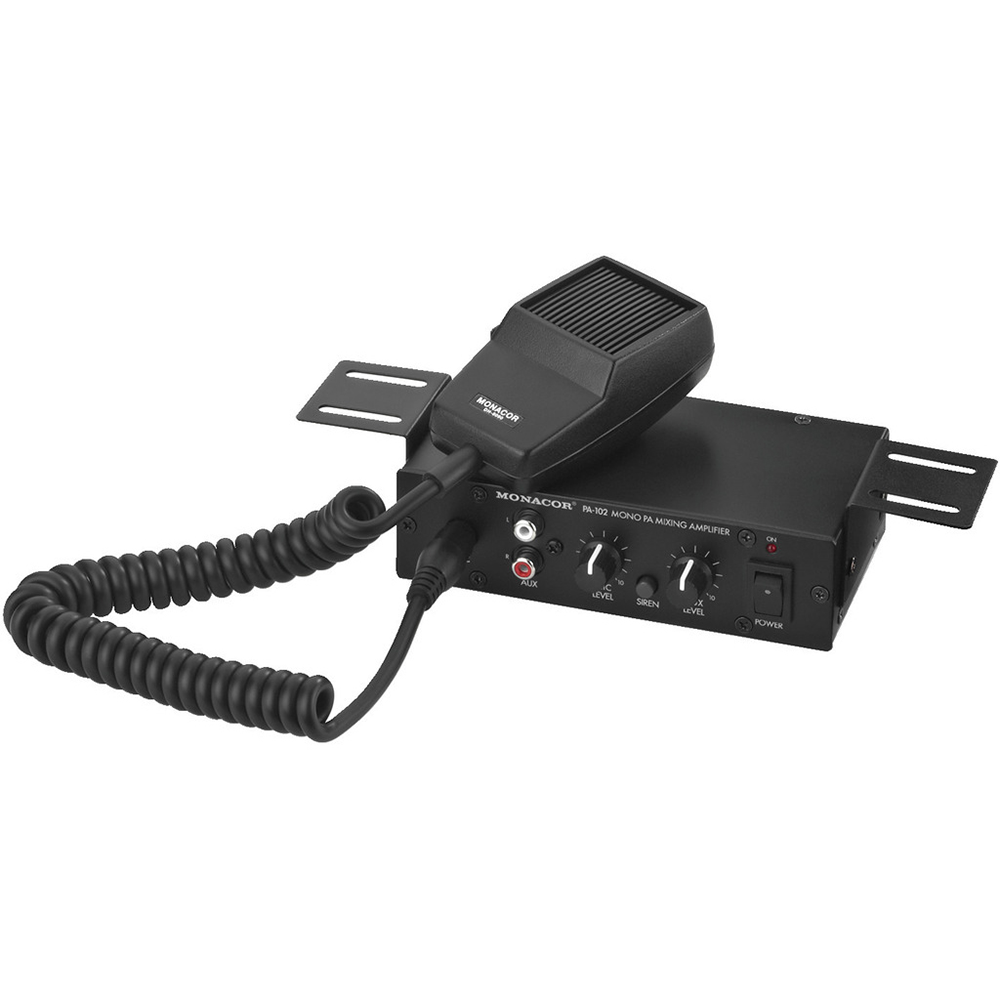

Monacor PA-102 8.5w RMS public address mixer amplifier will run from a 12v car battery and can be connected to low impedance loudspeakers that are rated between 4 and 8 ohms total load

• 1 adjustable microphone input
• 1 adjustable line input
• Supplied with hand-held push-to-talk microphone
• Siren function via push-button
• Metal housing
• Supplied with mounting brackets
• 12 V battery operation
• Channels: 1
• Power rating: 8.5 W
• Peak music power output (PMAX): 15 W
• Inputs: 3.4 mV/2.2 kΩ (mic), 240 mV/11 kΩ (line)
• Frequency range: 20-20,000 Hz
• S/N ratio: 70 dB
• THD: < 0.3%
• Power supply: DC current 12 V/2 A
• Operating voltage (possible alternative): DC current 12 V
• Power supply (possible alternative): DC current 2 A
• Admissible ambient temperature: 0-40 °C
• Dimensions: 151 x 41 x 115 mm
• Width: 151 mm
• Height: 41 mm
• Depth: 115 mm
• Weight: 410 g
• Connections: 1 x 6.3 mm jack (mic input), 1 x RCA L/R (line input), plug-in screw terminals (speakers), plug-in screw terminals (power supply)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
