Description
Monacor PA-1850D 8 channel 100v line digital PA power amplifier
- 8 x 50w
- Class D concept with a high efficiency to cut energy costs
- Requires a lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
- Clearly reduced cooling requirements due to low heat loss
- Silent operation due to fanless cooling concept
- Mute function for each channel
- Level control for each channel
- LED indication for clip and protect for each channel pair
- Protected against short circuit
- Mains operation or 24 V emergency power operation
- Output power: 8 x 50 WRMS/100 V, 8 x 50 WRMS/4 Ω
- Input sensitivity: 1 V/20 kΩ unbalanced, 550 mV/20 kΩ balanced
- Speaker output: 4 Ω, 70/100 V
- Frequency range: 10-20,000 Hz
- S/N ratio: > 65 dB
- THD: < 0.5 %
- Admissible ambient temperature: 0-40 °C
- Power supply: 230 V˜/50 Hz/600 VA, 24 V DC current /18 A
- Dimensions: 483 x 90 x 330 mm, 2 RS
- Weight: 12.7 kg

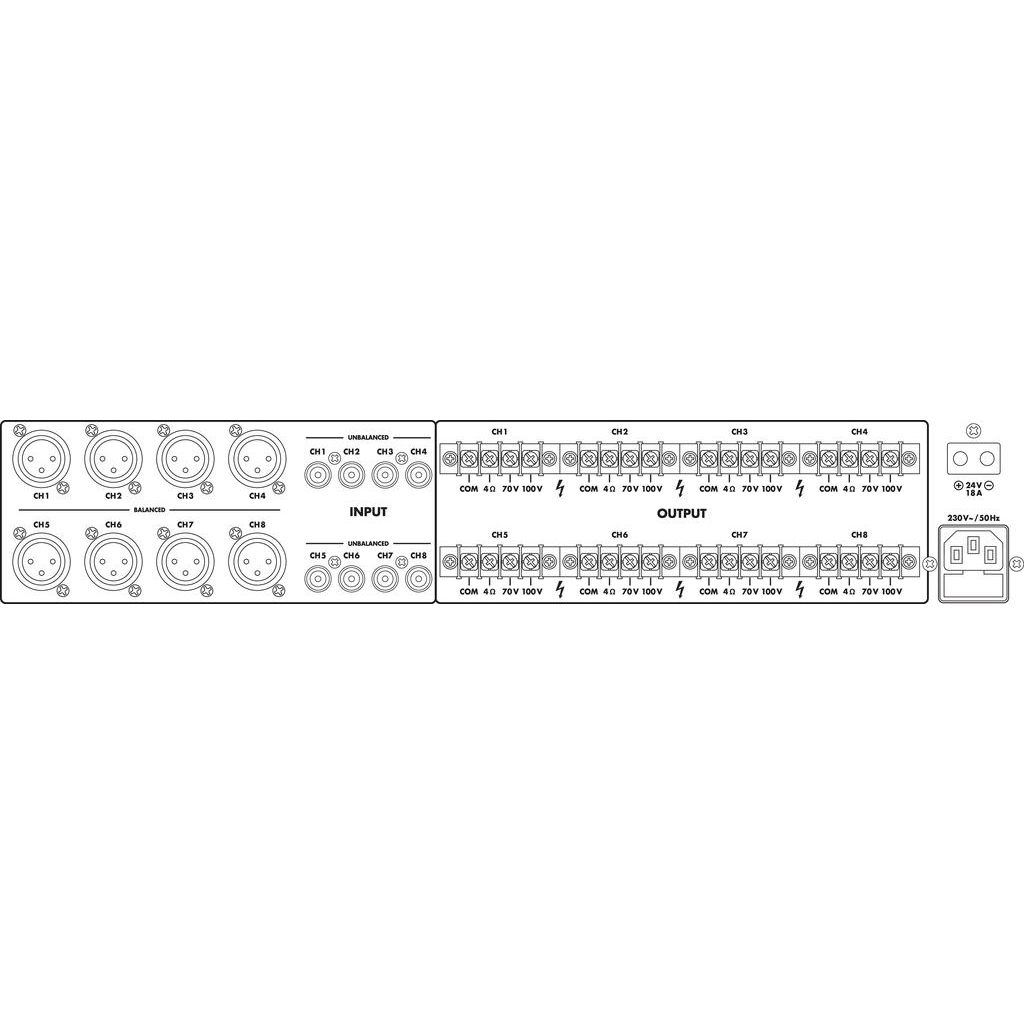

- Signal input: 8 x XLR, balanced, 8 x RCA
- Speaker output: screw terminals
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
