Description

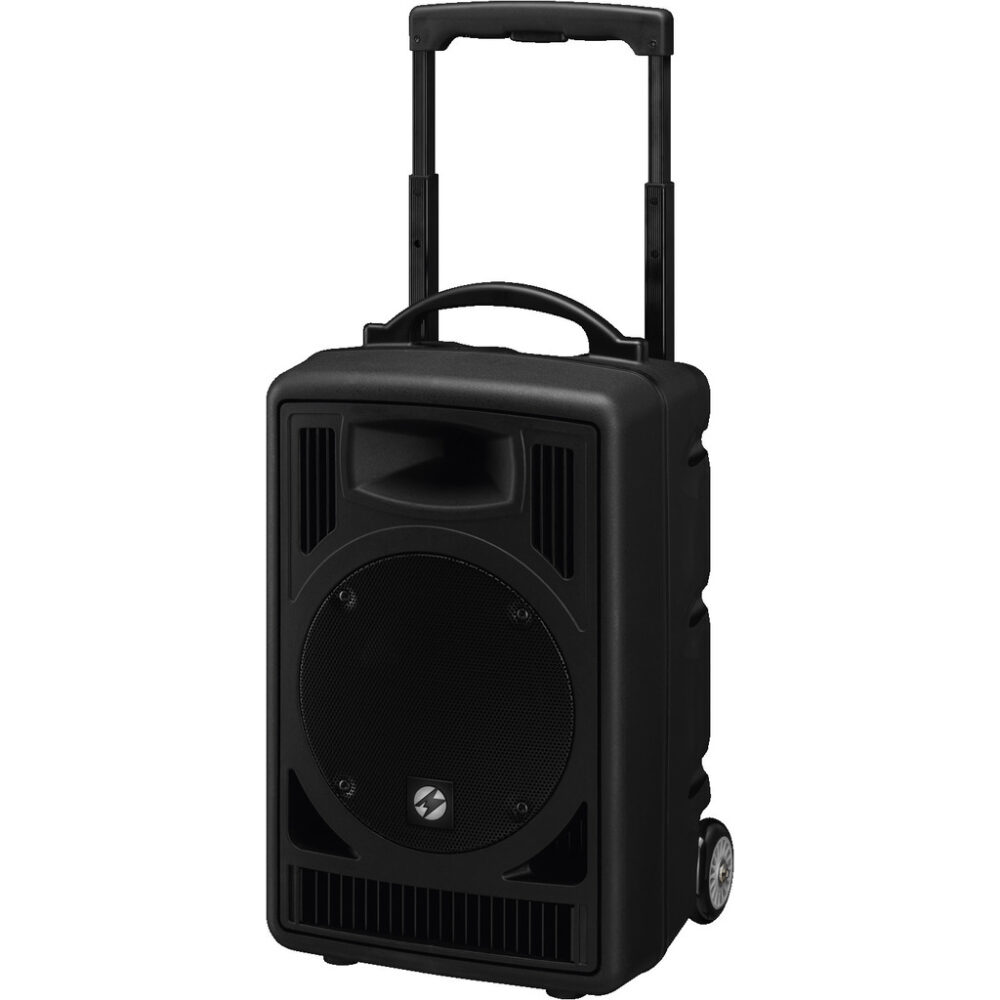

Monacor TXA-820 50w high-power portable PA sound system with integrated 2-channel multifrequency wireless microphone receiver
Portable amplifier system with integrated 1-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 5 hours), integrated automatic battery charging with charging status indication, discharge protection
- For mobile applications, e.g. sales events, lectures
- 16 selectable UHF frequencies (863-865 MHz) with diversity system
- Efficient 2-way speaker system

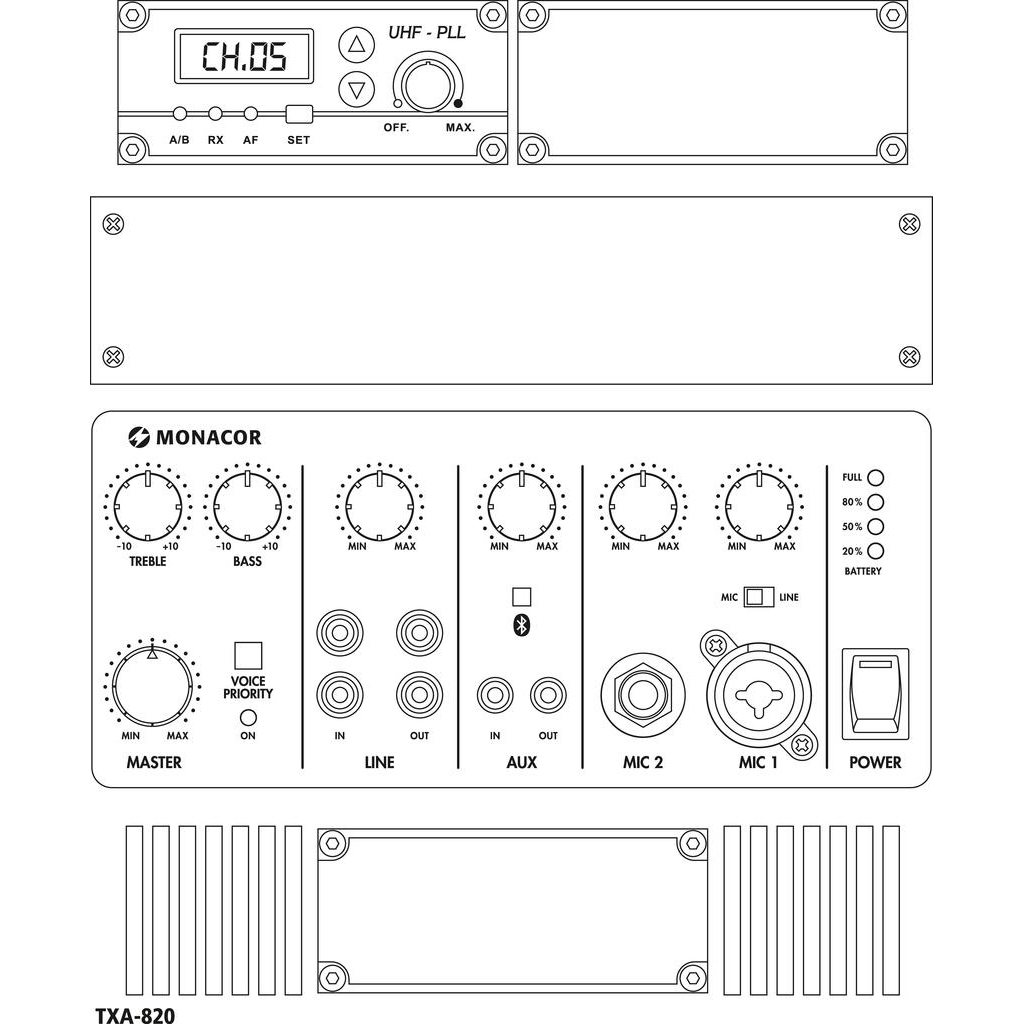

- 1 microphone input via combination jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit
- Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Stand sleeve
- Rated power (PRMS): 50 W
- Peak output power: 80 W
- Frequency range: 70-17,000 Hz
- Carrier frequency: 863-865 MHz
- Operating range: ≈ 30 m
- Inputs: 6 mV (mic), 300 mV (line)
- Link: optional (TXA-820MT)
- Max. SPL: 114 dB
- Equalizer, bass: ±10 dB/100 Hz
- Equalizer, treble: ±10 dB/10 kHz
- Power supply: ˜ 230 V/50 Hz/130 VA, rechargeable battery 2 x 12 V/4.5 Ah
- Admissible ambient temperature: 0-40 °C
- Dimensions: 305 x 510 x 265 mm
- Connections: 1 x XLR/6.3 mm jack (mic/line), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out)
- Weight: 14.5 kg
License-free in the EU.
Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters are optionally available.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
