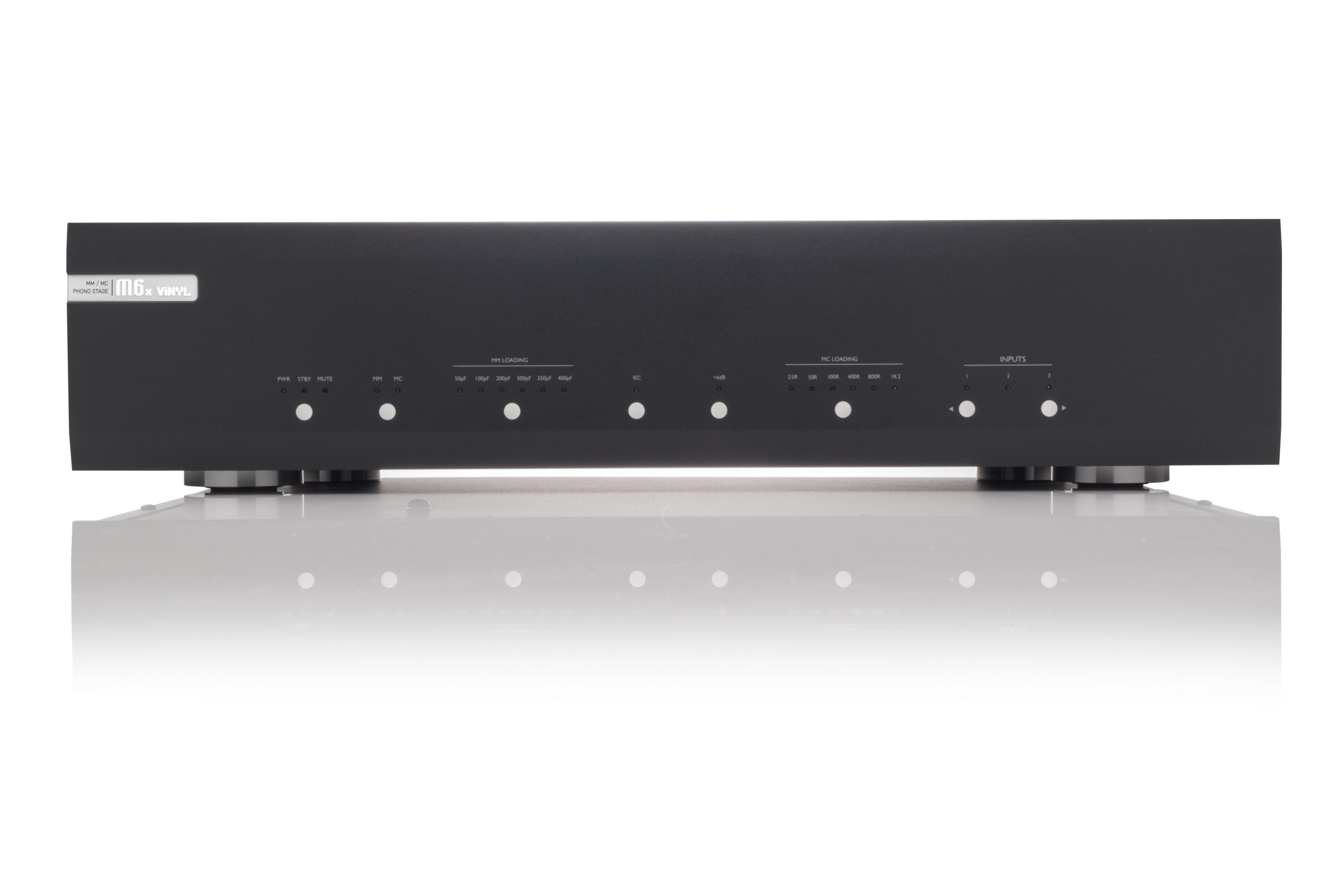

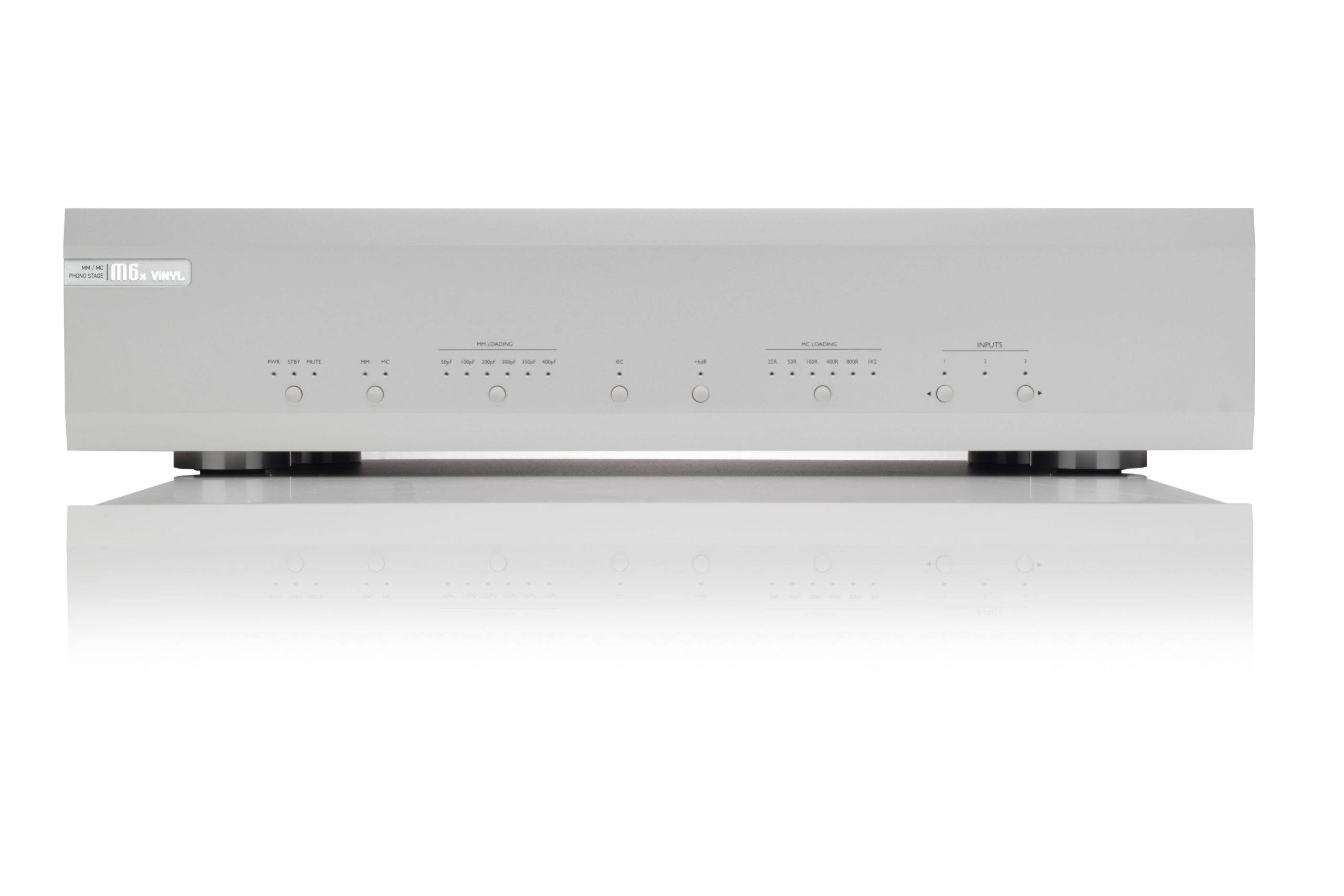

Musical Fidelity M6X Vinyl Phono Stage

£174.38

The M6X Vinyl was a labour of love for MF. Musical Fidelity loves phono and relished in the pure joy of designing the product of their dreams.

They set out to make a phono stage without any practical limits. Essentially, in real life, you cannot overload the input stage or find any practical limitations in the output driving capacity. Single-ended or balanced. It has three inputs, each can be set for either MM/MC and exact loading. It will remember those settings.

It offers state-of-the-art technical and sonic performance at a very competitive price and is the epitome of the true spirit of high-end audio.

The true point of any electronic, actually any audio component, is that you don’t know it is there. You completely forget its existance. By that criteria the M6X Vinyl is almost perfect. It has no practical audible noise, it doesn’t really have distortion, you cannot overload its input or output, you can load your cartridge perfectly. It exists to serve the music. To bring the artists intent, emotions and passion to your ears and heart.

Description

MM input:

Frequency response: RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity: 2.5mV in for 300mV out (at 1 kHz)
Input impedance: 47KΩ
Input capacitance: 50-400pF selectable
THD at 1 kHz: <0.01%
Overload margin: 31dB
Signal to noise ratio: >90dB “A”-wtd

MC input

Frequency response: RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity: 250μV in for 300mV out (at 1 kHz)
Input impedance: 25Ω to 1K2Ω selectable
Input capacitance: 470pF fixed
THD at 1 kHz: <0.01%
Overload margin: 31dB
Signal to noise ratio: >88dB “A”-wtd

Outputs (RCA/XLR)

1 pair RCA (phono): left and right 300mV nom 10V max
1 paiir XLR (balanced): left and right 600mV nom 20V max

Power requirement

Mains voltages: 230V/115V Internally set or 100V optional. AC 50/60Hz
Consumption: 20 Watts maximum. <0.5W in standby (orange LED on)

Weight

Unit only, unboxed: 5.5 kg
In shipping carton & inc. accessories: 11 kg

Unit dimensions

Wide: 440 mm
High, including feet: 100 mm
Deep (front to back) including terminals: 385 mm

Standard accessories

Mains lead: 10 Amp IEC

Additional information

Color

,
