Description

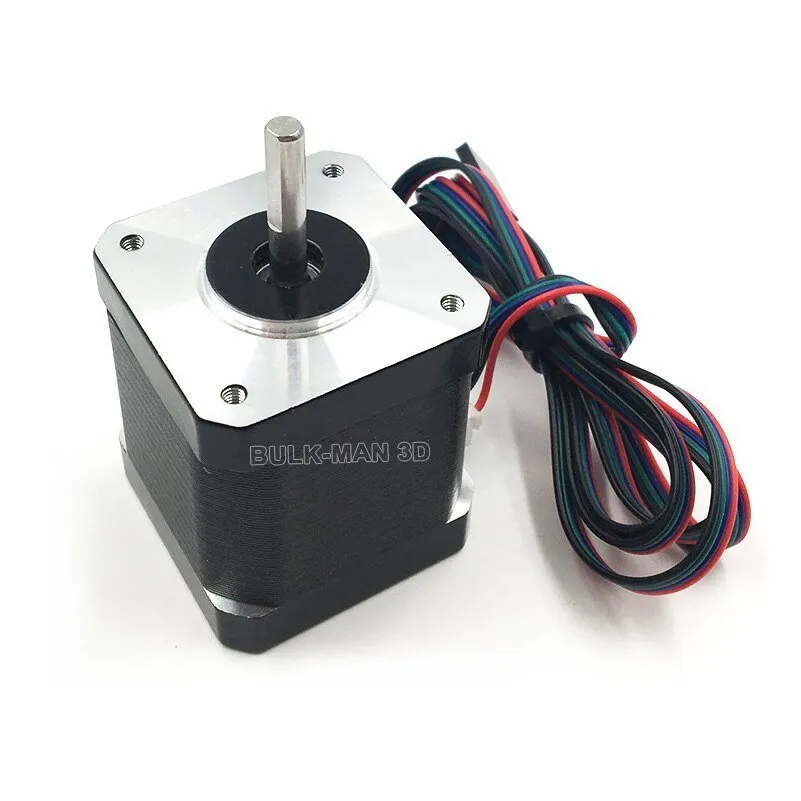

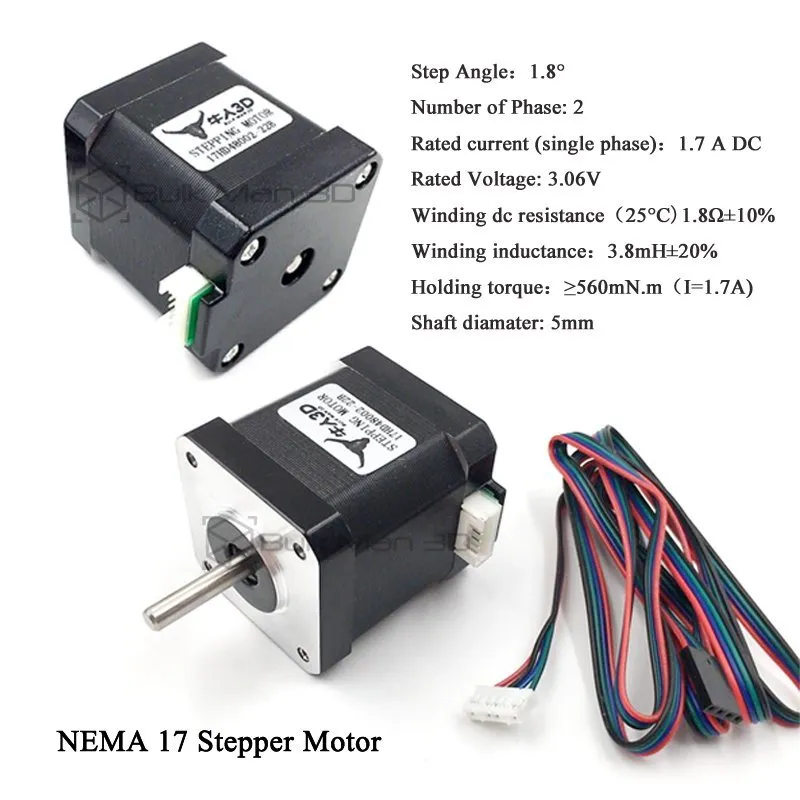

NEMA 17 Stepper Motor
This NEMA17 stepper motor is a great choice for any project. It comes with a 1m lead with a 4-pin Dupont style connector – perfect for connecting to breadboards or circuit boards!
With an all black body, these motors also look fantastic!
- Step Angle：1.8°
- Number of Phase: 2
- Rated current (single phase)：1.7 A DC
- Rated Voltage: 3.06V
- Winding dc resistance（25℃）：1.8Ω±10%
- Winding inductance：3.8mH±20%
- Holding torque：≥560mN.m（I=1.7A)
- Shaft diamater: 5mm

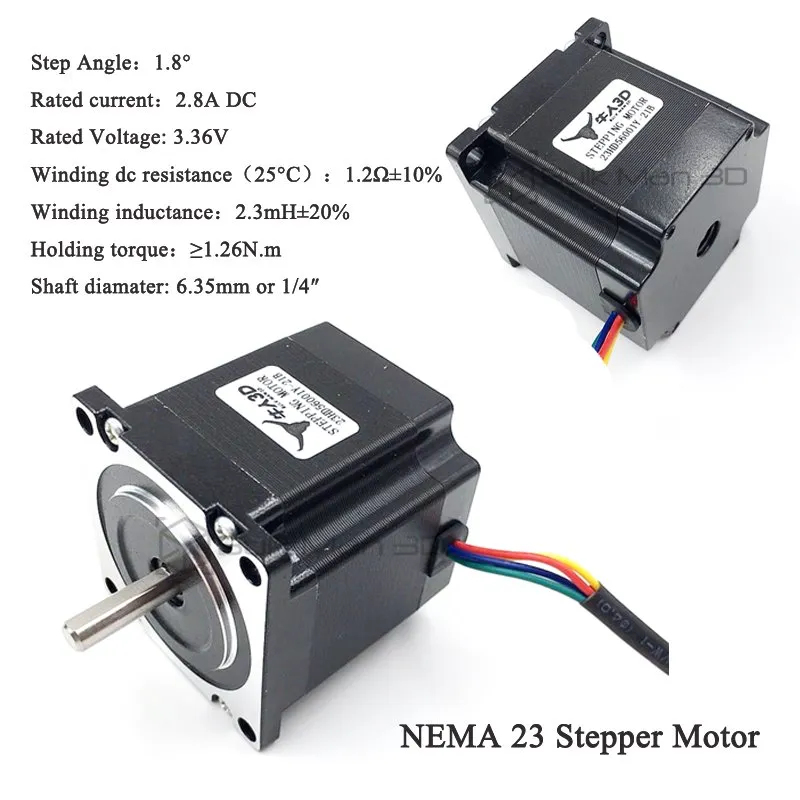

NEMA 23 Stepper Motor
This NEMA23 stepper motor is a great choice for any project.
They come with a 150mm lead with a EDG-4P.
- Step Angle：1.8°
- Rated current：2.8A DC
- Rated Voltage: 3.36V
- Winding dc resistance（25℃）：1.2Ω±10%
- Winding inductance：2.3mH±20%
- Holding torque：≥1.26N.m
- Shaft diamater: 6.35mm or 1/4

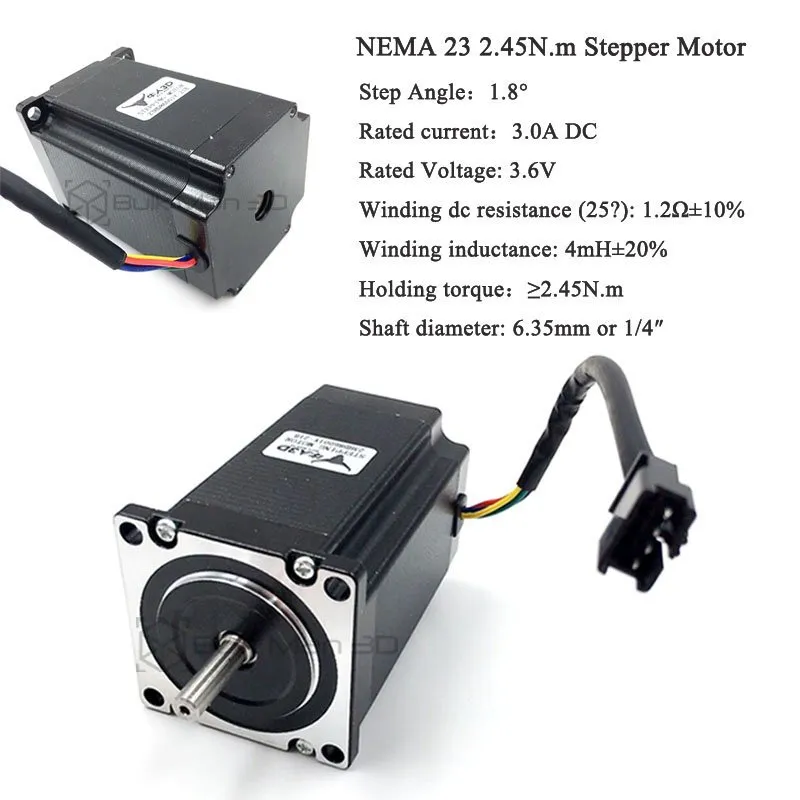

NEMA 23 High Torque Stepper Motor Description
This High Torque NEMA23 stepper motor is a great choice for any project that requires more power and more strength. With a holding torque of 2.45N.m (346oz.in) they are a great addition for larger machines requiring higher torque.
They come with a 150mm lead with a EDG-4P.
- Step Angle：1.8°
- Rated current：3.0A DC
- Rated Voltage: 3.6V
- Winding dc resistance (25℃): 1.2Ω±10%
- Winding inductance: 4mH±20%
- Holding torque：≥2.45N.m
- Shaft diameter: 6.35mm or 1/4″
Reviews
There are no reviews yet.
