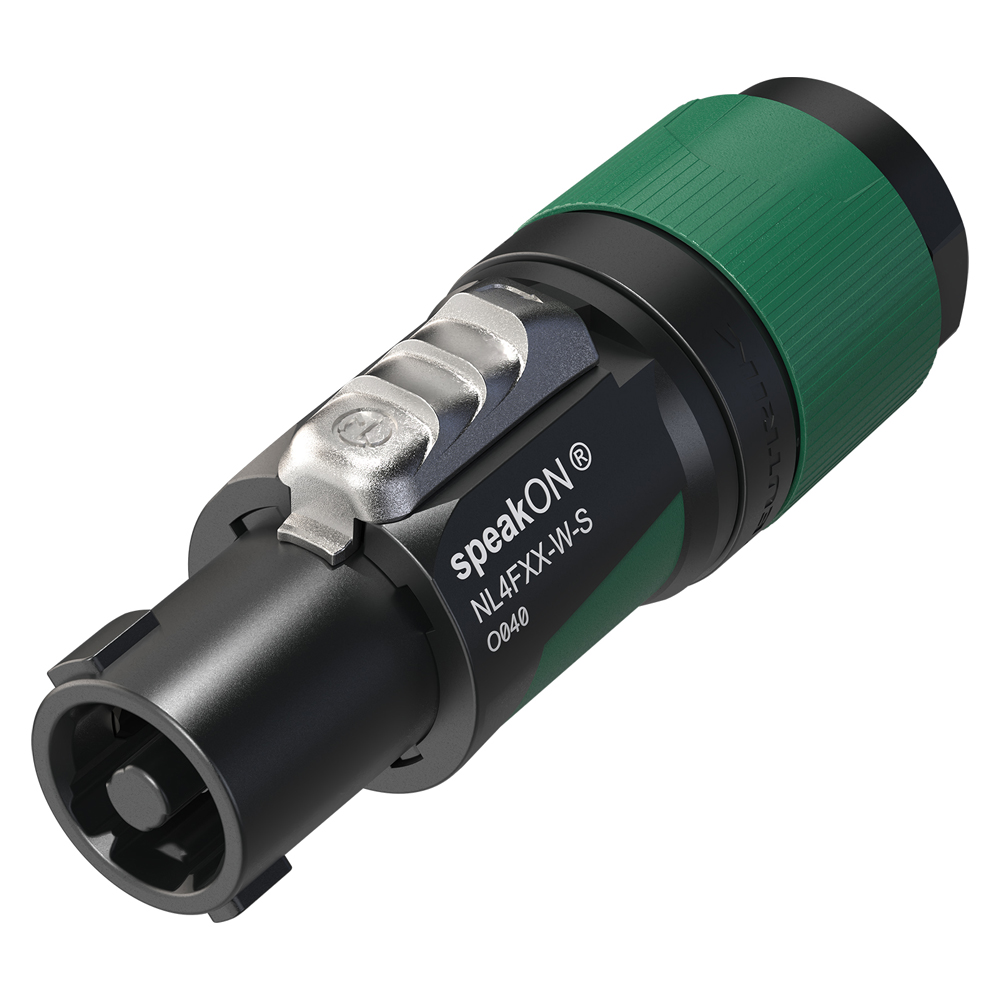

Neutrik NL4FXX-W-S SpeakON Speaker Connector

Description

Neutrik NL4FXX-W-S 4-pole SpeakON connector for professional speaker connections on speakers and amplifiers. Robust design, bayonet fitting with latching device, all-insulated contacts, cable inlet with self-adjusting clamps

4-pole SpeakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. Speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

• Up to 37 A rms current rating
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Ergonomic design with slip-proof two-component molded housing
• Easy and reliable twist lock system
• Improved kink protection by two-component bushing
• Lifetime: Typically 5’000 mating cycles
• Terminals: Screw type
• Temperature range: -33 °C to +80 °C
• IP rating: IP20
• Cable ∅: 6 -12mm

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
