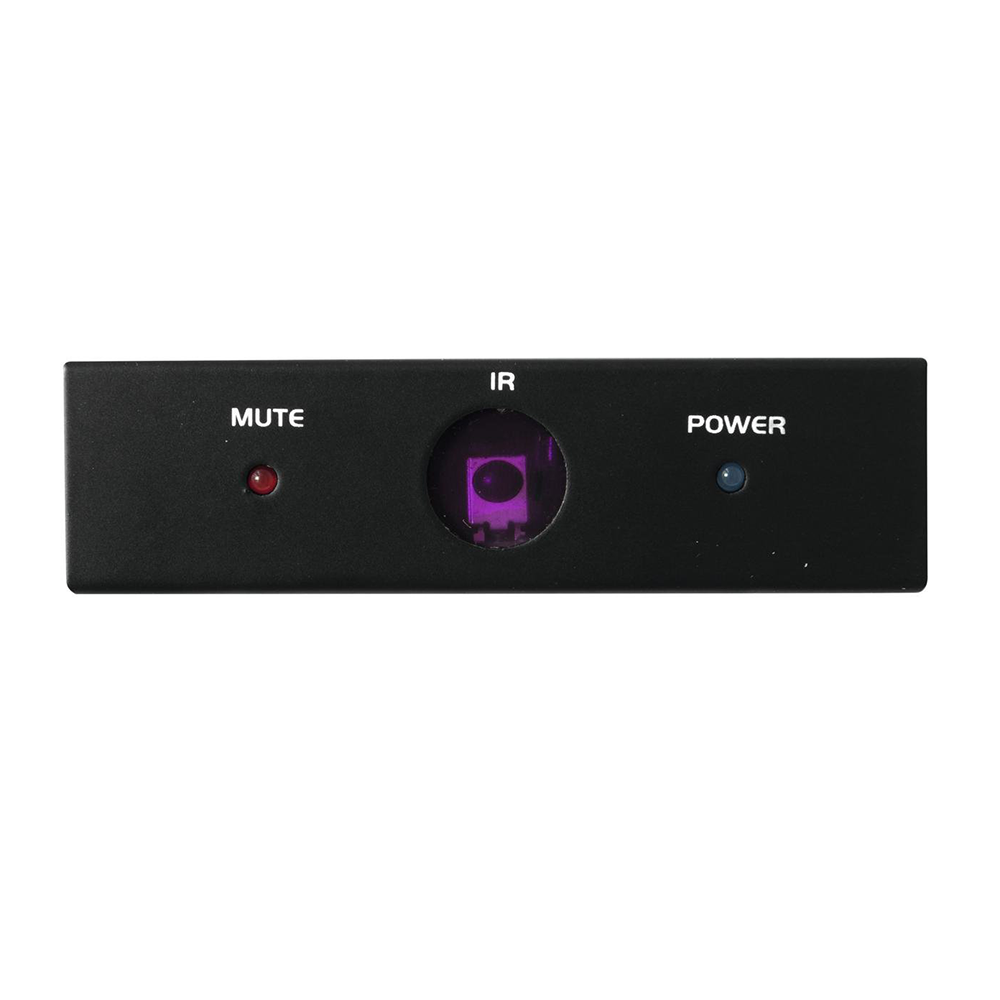

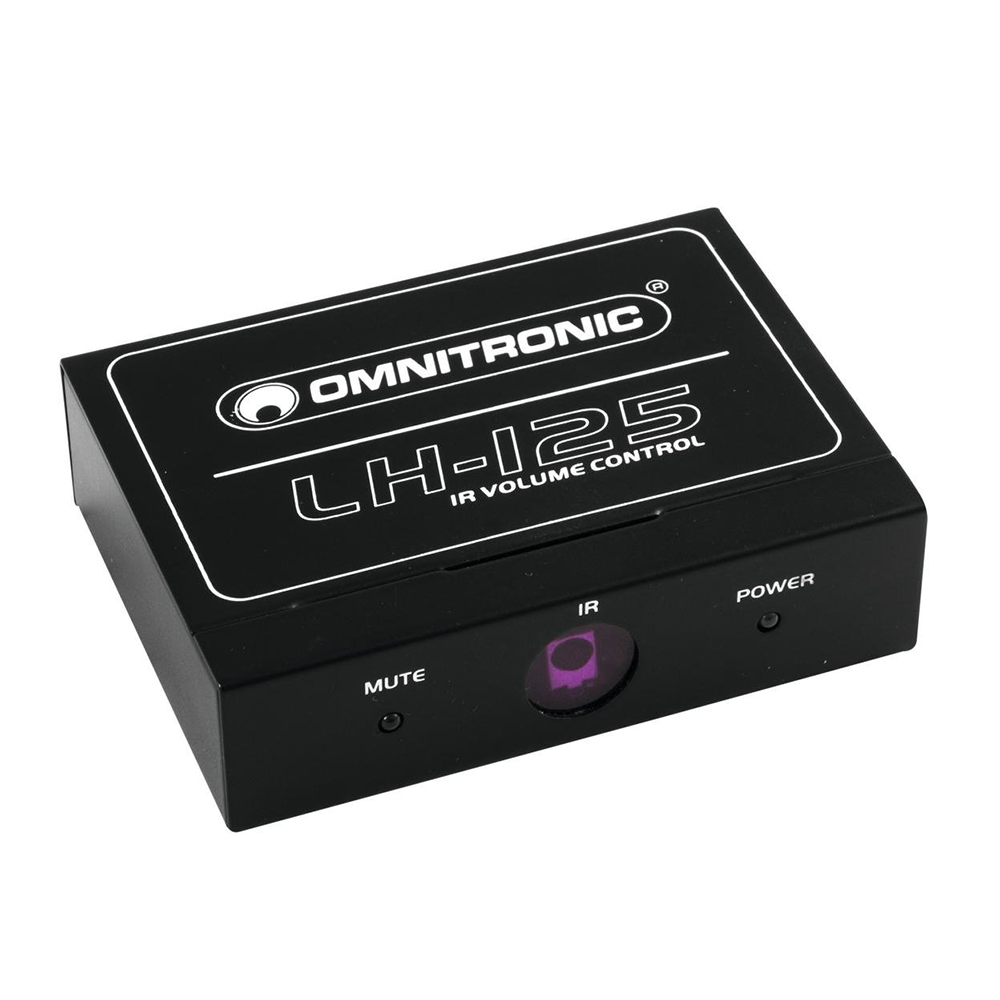

Omnitronic LH-125 IR Volume Control

Description

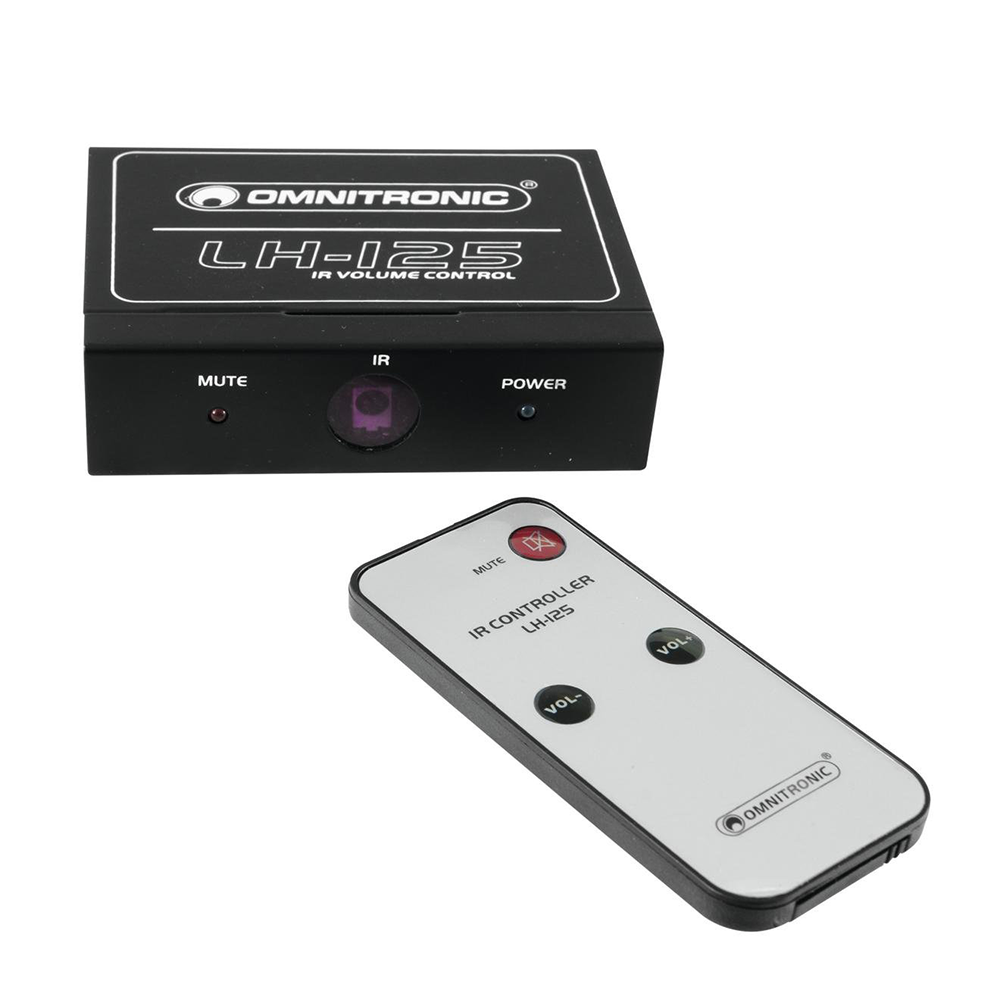

Omnitronic LH-125 stereo volume controller with infra-red remote control

• Convenient stereo volume control for use with analog audio units which have unbalanced line level inputs and outputs
• For connecting between mixer and amplifier
• Volume up/down and mute on/off
• Stereo unbalanced RCA inputs and outputs – cables not included
• Control via IR remote control
• Compact metal housing
• For application areas such as: PA Installation, mobile use, mobile djs, entertainers, HiFi systems etc.

Technical Specifications

• Power consumption: 0.75 W
• Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with EU AC adapter included
• Frequency range: 20 – 20000 Hz
• S/N ratio: >90 dB
• THD: <0.2 % at 1 kHz
• Impedance: Input: 47 kOhm
• Control: IR remote control
• Status LED: Power, Mute
• Connections: Inputs: line via 1 x stereo RCA, Outputs: line via 1 x stereo RCA
• Max. level: Input: +1.65 V
• Output: +2 V
• Material: Metal
• Color: Black
• Dimensions:
  • Width: 9.3cm
  • Depth: 7.6cm
  • Height: 2.6cm
• Weight: 360g
• Volume control
  • Power supply: 12 V
  • Protection class: Protection class III
  • Weight: 180 g
• External mains adapter
  • Power supply: 230V AC, 50 Hz
  • Weight: 180 g
• Remote control
  • Battery: 1 x Button cell 3.0V CR2025 lithium manganese built-in

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
