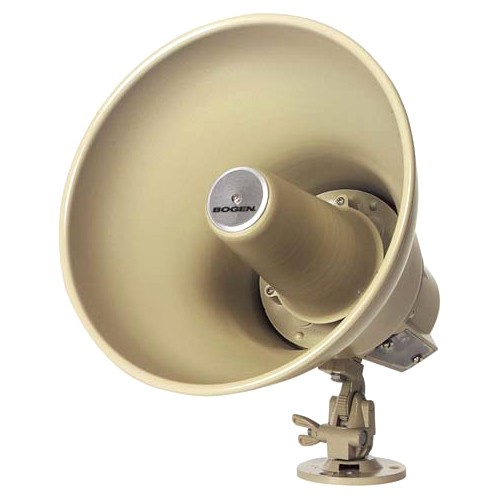

Outdoor IP Loudspeaker

Description

Outdoor IP Loudspeaker Description:

Firstly, the Outdoor IP Loudspeaker works as a compact, high intelligible reentrant type loudspeaker. Primarily designed for one-way or two-way sound and communication systems. In addition it uses a sturdy, weatherproof, all-metal construction which is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals, as well as recreational areas. While this loudspeaker also has a built-in, rotary impedance selector switch for matching the speaker power requirements to a 25V or 70V constant-voltage line. Use an amplifier or network controller to connect this speaker to your cameras providing a highly secure system.

Key Features:

• High intelligibility and efficiency; ideal for both one-way as well as talk back applications
• Additionally, weatherproof, all-metal construction
• 15 watts; 25/70 volt
• Tap settings for 70V: 15, 7.5, 3.8, 1.8, 0.9 watts; for 25V: 15, 7.5, 1.8, 0.94, 0.46 watts
• Rotary tap impedance selector
• Tilt and swivel base for easy positioning
• Screw terminals make installation fast and easy
• All-purpose mounting bracket
• Self-aligning, field replaceable diaphragm
• Mocha enamel finish
• Limited lifetime warranty
• Mountable to electrical box a mounting strap (sold separately)
• Lastly, The Terminal Cover also allows connection of conduit fittings

Specs:

• Power Rating (RMS): 15 watts continuous, while 20 watts equalized
• Frequency Response: 275 Hz to 14 kHz
• Impedance: 25/70 volts
• Sound Pressure Level: 121 dB @ four feet on axis with 15 watt input @ 1000 Hz
• Dispersion: 110º
• Sensitivity as Microphone: -22 dBm [Ref: 10 dynes/cm2]
• Dimensions: 9″ Diameter x 9-1/4″ D
• Product Weight: SPT15A — 4 lb.
• Finish: Textured mocha enamel
• Lastly, Impedance Selector Switch Settings: 25V @ 15, 7.5, 1.8, 0.94, 0.46 watts
