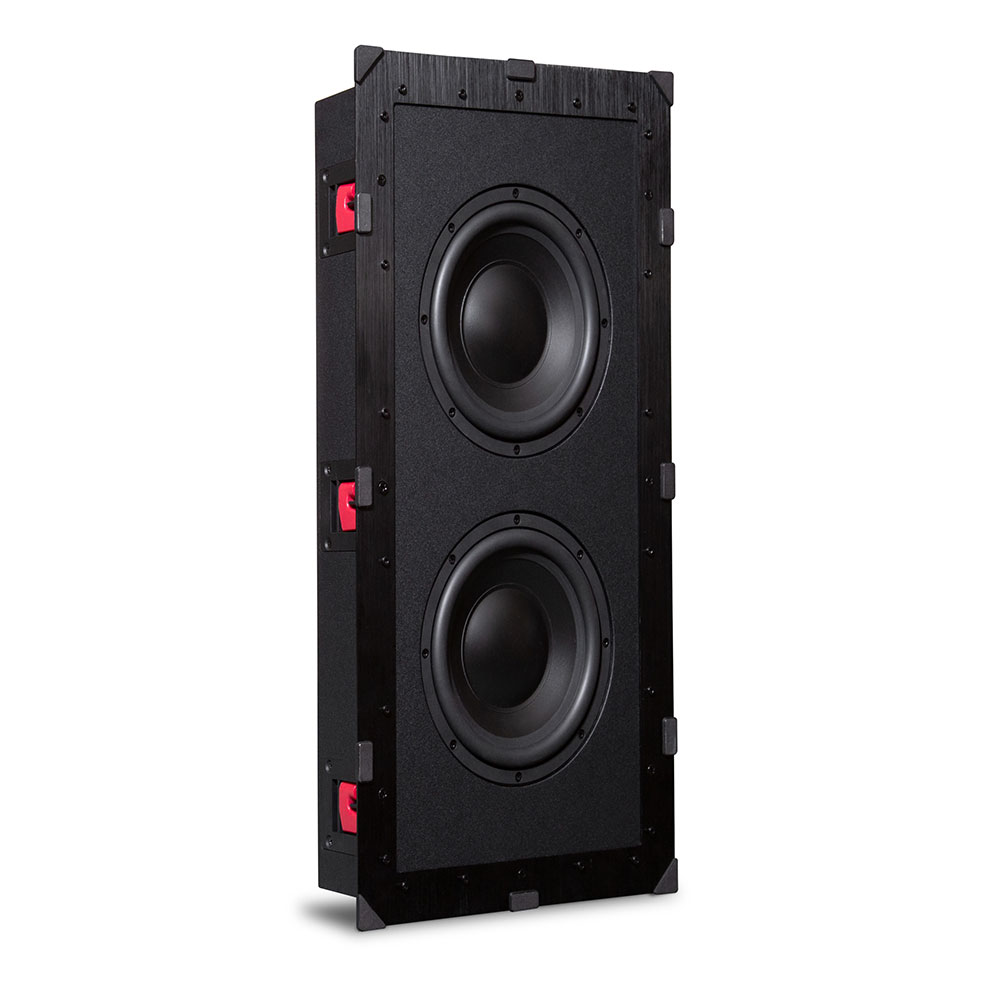

PSB CSIW SUB28 Dual 8″ In-Wall Subwoofer

PSB CSIW SUB28 Dual 8″ In-Wall Subwoofer

£174.02

Dual 8″ in-Wall Subwoofer
The CSIW SUB28 is a premium in wall sealed cabinet subwoofer with dual 8” high performance drivers capable of delivering detailed low frequency performance. Equipped with heavy duty nylon dog-ears, and a magnetic small perforation grille, the CSIW SUB28 can be used in both new construction or retrofit applications. Versatile, and easy to deploy, the CSIW SUB28 is a cornerstone of hidden audio system design.

  • Dual 8″ Passive In-Wall Subwoofer
  • Polypropylene cone, rubber surround
  • Ideal match with CS 500W subwoofer amplifier
  • Designed for both new construction or retrofit applications
  • Sealed Cabinet Design
  • High strength doglegs for easy installation and removal
  • Magnetic, small perforation grille
  • Design and final voicing engineered by Paul Barton
  • Height : 25 3/8″ – Width: 13 1/2“ – Depth: 3 3/4“



Categories: , , ,

Description

Sound Pressure Level

Maximum @ 100Hz TBD

Sensitivity

Anechoic Chamber 87dB
Listening Room 89dB

Impedance

Nominal 4 Ohms

Acoustic Design

Woofer (Nominal) 2 x 8″ (100mm)

Carbon Fibre Cone

Rubber Surround

Steel Basket

Construction

Cabinet Metal
Grille Face Metal

Dimensions / Weights / Finish

Dimensions Net W – 13 1/2″* (343mm)

Net H – 25 3/8” * (625mm)

Net D – 3 3/4” * (95mm)
Shipping Dimensions Net W – 18 1/2″* (470mm)

Net H – 31 4/5” * (808mm)

Net D – 12 1/5” * (310mm)
Volume 0.3 ft³
Weight Net – 26lb (12kg)

Shipping – 32.6 lb (14.8 kg)
Finish White Paintable Grille
Notes * Non-metric measurements are approximate.

All specifications are subject to change without notice.
