REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included)
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 2
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 3
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 4
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 5
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 6
REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included) - Image 7

REGA Planar 1 Package – Turntable with Fono Mini A2D Phono Stage (RCA Cables not included)

£174.02

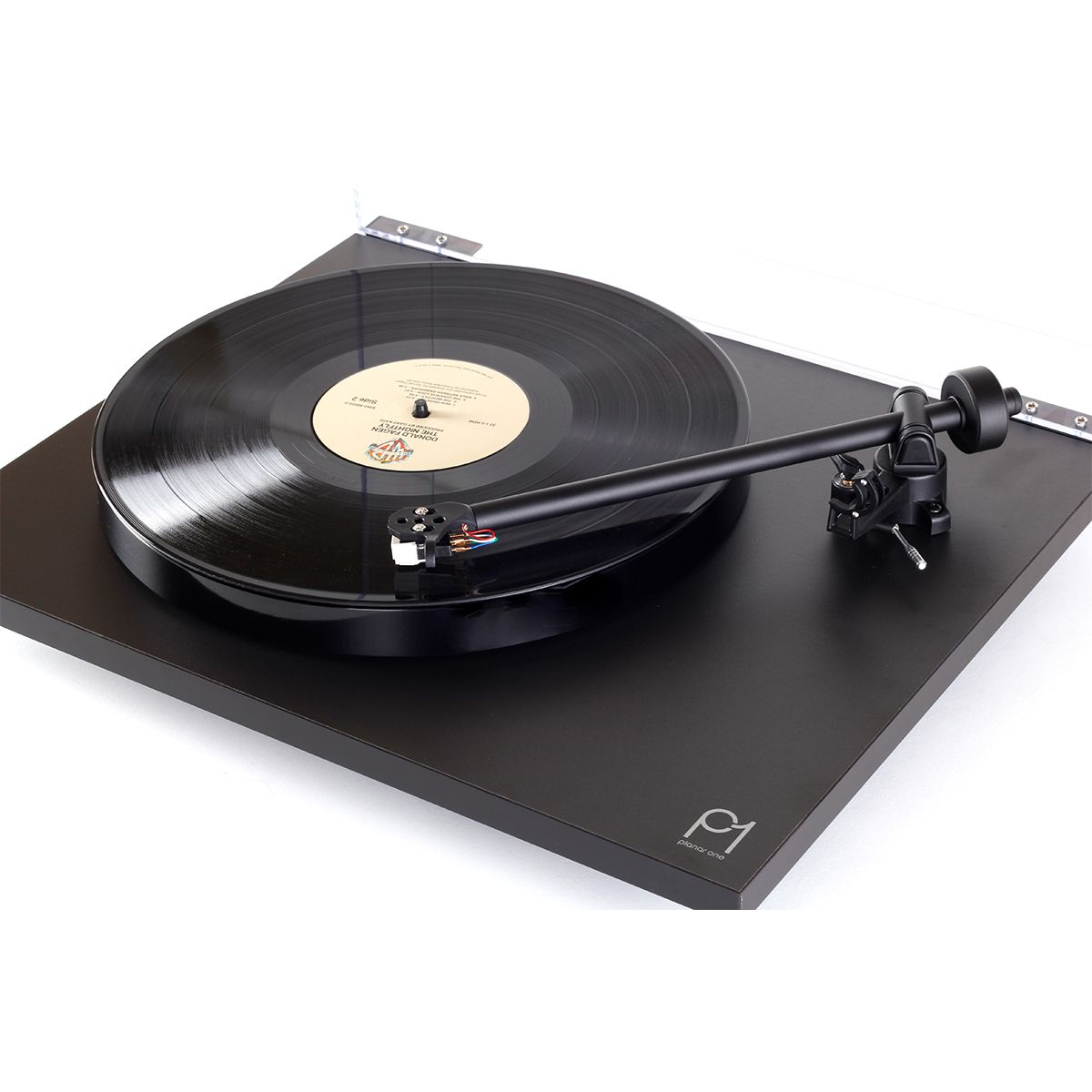

PLANAR 1

The new Planar 1 is the most user friendly Rega turntable to date. Now with preset bias force on the brand new RB110 tonearm, the Planar 1 is set up in seconds after unpacking. Simply slide the balance weight onto the rear of the tonearm as far as it will go, remove the stylus guard and start spinning your favourite vinyl.

Performance beyond price
Every single aspect of the Planar 1 has been meticulously designed to improve performance. For the first time the Planar 1 is now running a 24v, low noise, synchronous motor to reduce vibration transfer combined with our brand new RB110 tonearm fitted with Rega’s bespoke ultra low friction play bearings. Only sharing the drive belt, sub platter and dust cover from the outgoing RP1, this is truly a new turntable from the ground up.

  • EBLT Advanced drive belt fitted as standard
  • New matt finish for 2021
  • RB110 tonearm with ultra-low friction play bearings
  • Factory fitted Carbon moving magnet cartridge
  • Phenolic resin, flywheel effect platter
  • High quality, 24 V low noise synchronous motor
  • Lifetime warranty against manufacture defects

If you are looking to get back into vinyl and want serious performance that will last you a lifetime, then look no further.

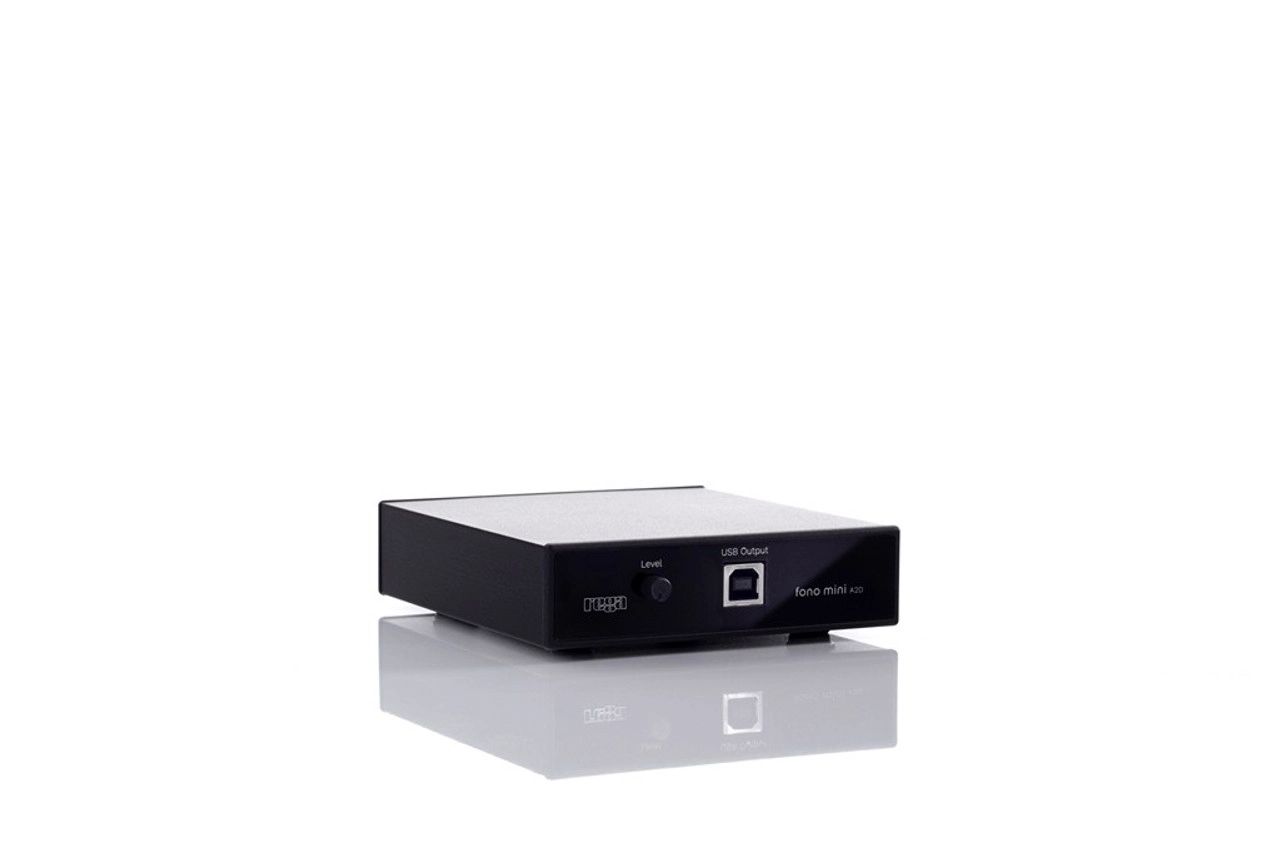

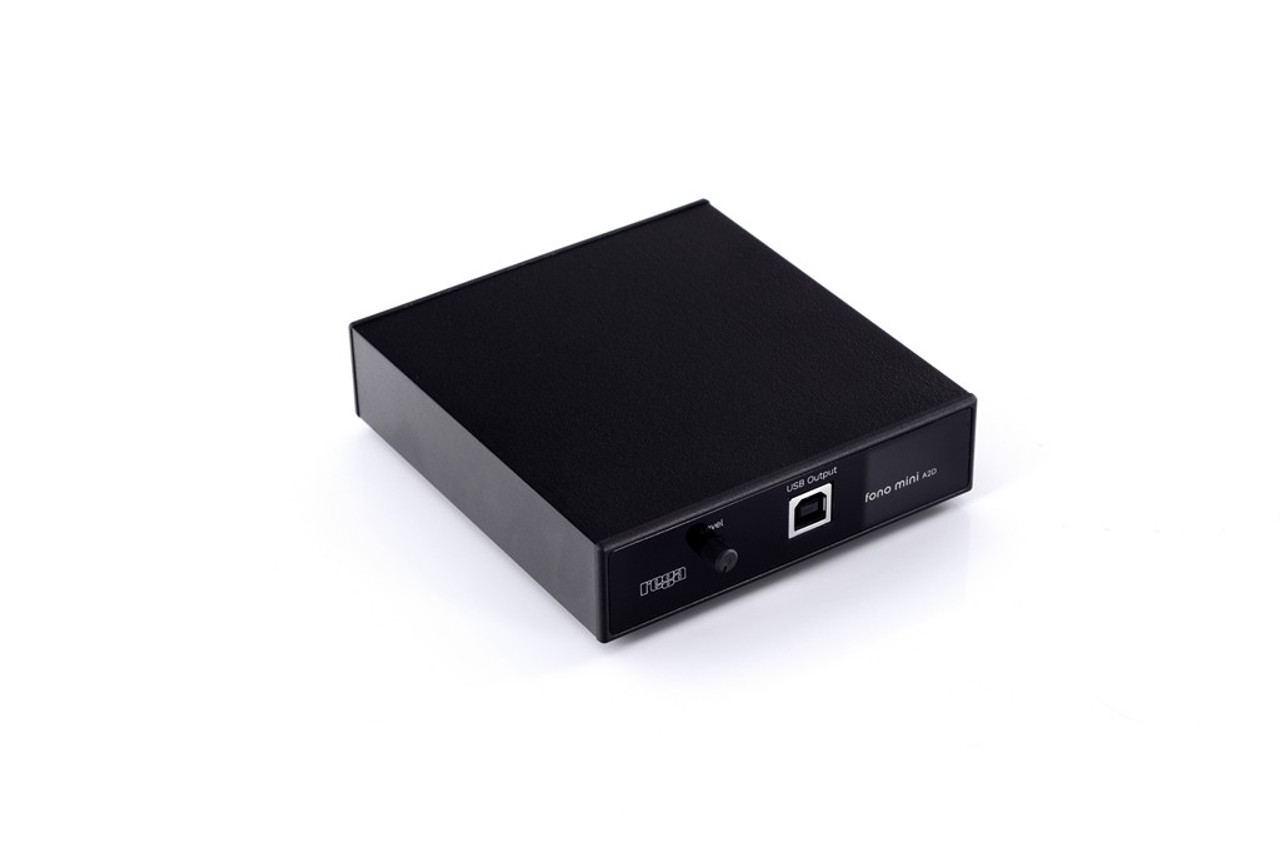

FONO MINI A2D

The Fono Mini A2D is a compact high quality moving magnet disc stage with a circuit based on our multi award winning Fono MM. Our best selling phono stage also includes a USB interface which allows you to transfer your beloved vinyl to digital audio files.

Analogue to Digital

The Fono Mini A2D is a high-quality phono pre-amplifier for use with any moving magnet cartridge. The addition of a USB interface allows you to easily transfer vinyl to your PC if required. The restyled Fono Mini A2D amplifier offers improved usability, exceptional performance and incredible value for money while promising to be a valuable addition to any hi-fi set up.

To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity), from the internet. This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.

Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the ‘Level’ control located on the front panel. Always take special note of record levels to ensure optimum recording quality.

KEY FEATURES

  • Compatible with all moving magnet cartridges
  • USB output
  • A2D functionality
  • Compact custom case design
  • Adjustable gain level to optimise performance
  • Lifetime warranty against manufacture defects
SKU: N/A Categories: , , , ,

Description

PLANAR 1

TECHNICAL SPECIFICATIONS

  • Tonearm
    Hand assembled RB110 tonearm
  • Cartridge
    Factory fitted Carbon moving magnet cartridge
  • Motor
    24 V low noise motor
  • Platter
    Phenolic resin platter
  • Dimensions (lid closed) (W x H x D)
    447 x 117 x 360 mm
  • Weight
    4.2 kg

TONEARM
Brand new RB110 tonearm built with the new Rega designed, bespoke, ultra-low friction bearings (patent pending). New bias assembly and integrated arm clip. Includes automatic bias adjustment negating the need for the user to set bias, making this the most ‘plug & play’ turntable we have ever manufactured. Ergonomically, designed headshell for improved usability and appearance.

CARTRIDGE
Rega Carbon cartridge supplied fitted as standard.

24 V SYNCHRONOUS MOTOR
The first entry-level Rega turntable to use a 24 V, synchronous AC motor with a new motor PCB and aluminium pulley offering low noise and better speed stability.

PLINTH
Brand new matt finish plinth with vastly improved appearance and ergonomically positioned on/off switch located on the underside. Two stunning plinth finishes available, matt black or matt white.

CENTRAL BEARING HOUSING
Performance brass main bearing, offering improved fit and removing stress on the bearing itself whilst minimising the transfer of potential energy (patent pending).

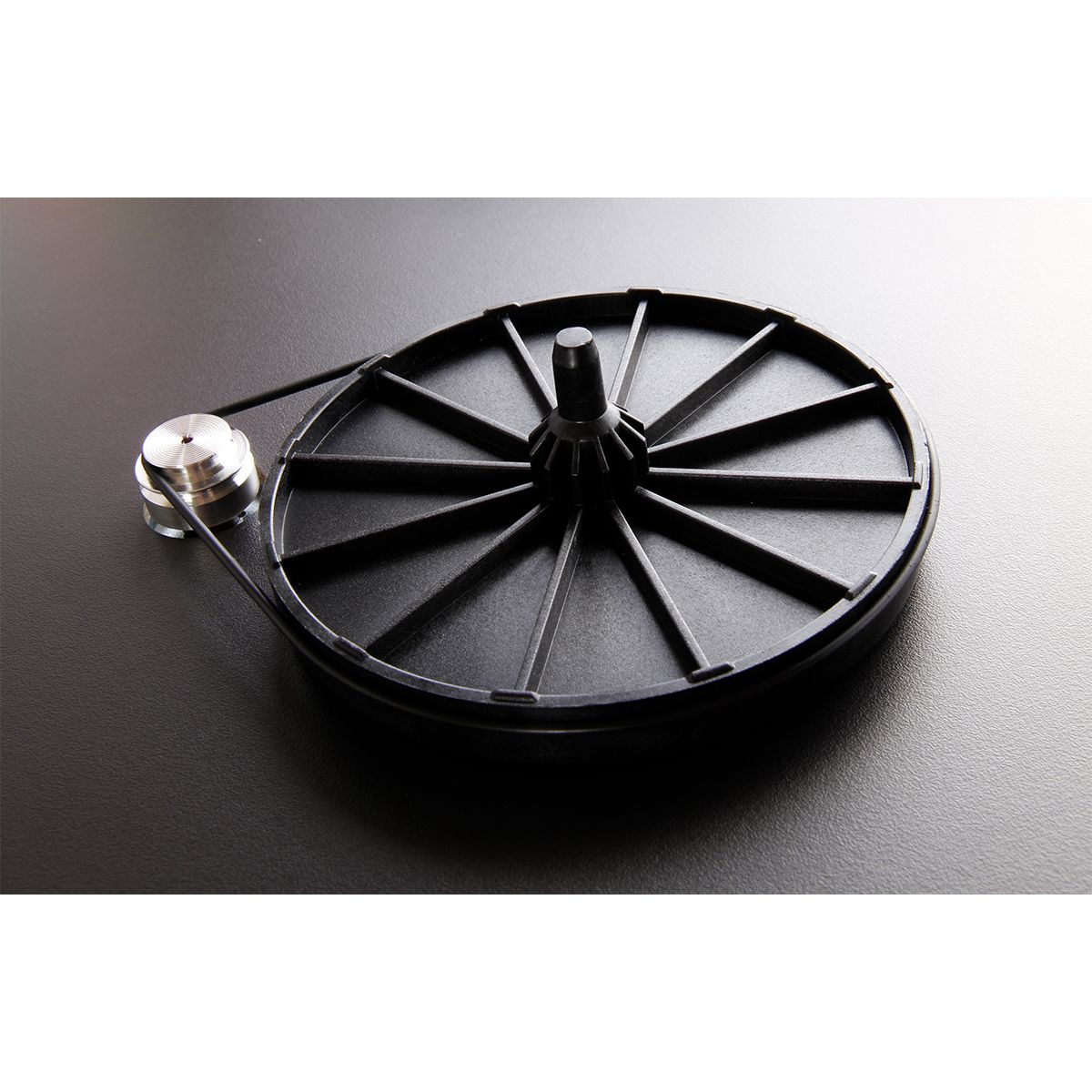

PLATTER
23 mm, higher mass, phenolic platter with improved flywheel effect for improved speed stability.

ISOLATION
Our latest design foot assembly increases stability and reduce vibration transfer.

MOTOR COVER TRAY
Motor cover tray with integrated cooling.

BALANCE WEIGHT
111 g ‘plug & play’ balance weight.

FONO MINI A2D

Input Sensitivity 5 mV for 500 mV Output

Input Loading 47 k +100 pF

Maximum input level 70 mV @ 1 kHz

Output Impedance 100 Ω

Signal to noise ratio 78 dBA ref 5 mV

Power requirements 24 V AC 85 mA

Input for full scale digital output 7.5 mV

Dimensions (W × H × D) 102 × 30 × 125 mm

Sample rate 16bit 44.1kHz (48kHz max) when transferring files via
