Revel C383 8″ In-Ceiling Loudspeaker

£174.02

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

C383 Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Categories: , , ,

Description

Audio Specifications

High-Frequency Driver Components 1″ aluminum dome swiveling tweeter with waveguide
Low-Frequency Driver Components 8″ Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
Recommended Amplifier Power 10 – 125 Watts RMS
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm)
Height Cutout dimensions (dia.) 9.6″ (24.4 cm) Square grille finished Width 10.7″ (27.2 cm)
Width Square grille finished Width 10.7″ (27.2 cm)
Depth Mounting depth 5.2″ (13.2 cm)
Weight 2.1 lb (1 kg) / Shipping weight 3.1 lb (1.4 kg)

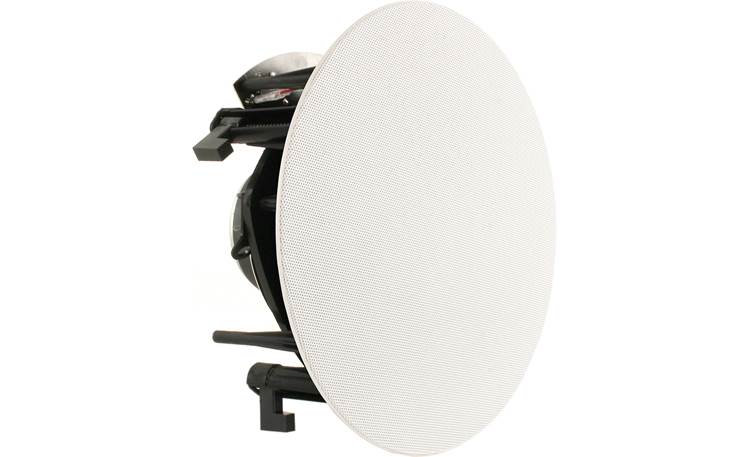

Features Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7″ (27.2 cm)
