Description

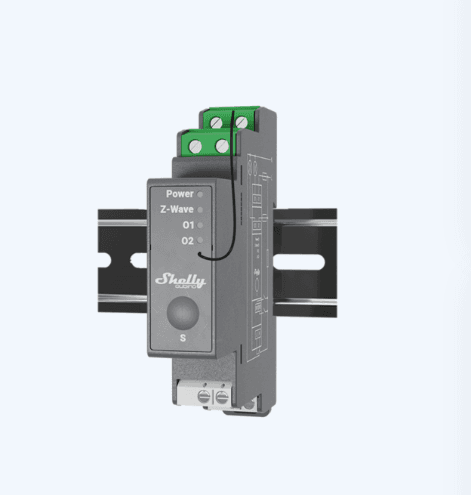

Professional 2-channel DIN rail Z-Wave™ smart switch with dry contacts
Wave Pro 2 is a 2-phase, 2-channel relay supporting up to a combined 25A for professional lights and appliance automation in residential or commercial applications. It is equipped with 2 potential-free outputs (dry contacts) offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. The Wave Pro 2 is suitable for home and facility automation with remote control, is DIN-rail mountable inside a breaker box, and includes advanced safety features.
Power
- Power supply110-240V ±10% 50/60Hz AC
- Max switching voltage AC240V
- Max switching voltage DCN/A
- Max switching current AC16A per channel, 25A total
- Max switching current DCN/A
- Power consumption< 0.3W
- Z-Wave™ frequency bands868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
Features
- Clean contact relay
- Overheating protection
- Ambient temperature-20°C to 40°C / -5°F to 105°F
- Humidity30% to 70% RH
Connectivity
- CPUZ-Wave™ S800
- Z-Wave™ repeater
- Maximum radio frequency power transmitted in frequency band(s)< 25mW
- Operational range (depending on local construction)Up to 40m indoors (131 ft.)
Dimensions
- (H X W X L) 94 x 19 x 69 ±0.5 mm
