Spindle Mount 43mm/52mm/65mm/71mm/80mm

Description

• This super strong, high quality Router/Spindle Mount is the perfect addition to your Build.”
• This mount works best with the Bosh Colt Router and with some additional shimming this mount is also compatible with the Dewalt 611 Router.”

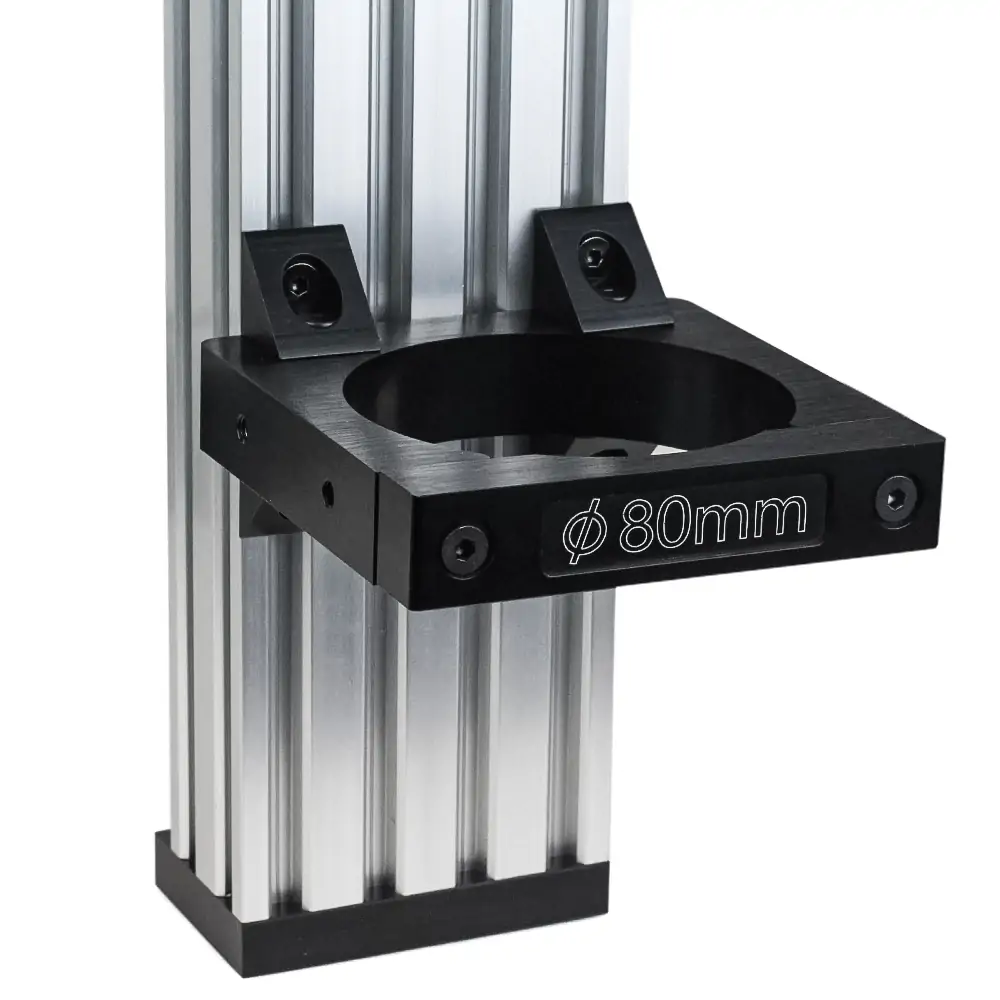

• C-Beam and V-Slot 20x80mm compatible
• Removeable faceplate for quick tool changes
• Adjustable faceplate
• Countersunk holes
• Tapped holes
• Flexible mounting options



Package Includes:

• 1x Spindle Mount Clamp (Optional for 43mm/52mm/65mm/71mm/80mm)
• 2x Low profile screws



Noted:

• This Router Spindle Mount does not include with the Angle Corner Bracket!For the Router Spindle Mount Kit with the Brackets please Click Here



Specification

• SKU: PL20-43 / PL20-52 / PL20-65 / PL20-71 / PL20-80
• Item Name: Router Spindle Mount
• Material:  6063 Aluminum
• Finish: Black anodized
• ID: 80mm, 71mm, 65mm, 52mm, 43mm for choice
  • 52mm diameter is perfect for mounting a 400W Air Cooled Spindle.
  • 65mm diameter is perfect for mounting a 1.5kW Air Cooled Spindle.
  • 71mm diameter is perfect for mounting a Bosch Colt Router or a Dewalt 611 Router.

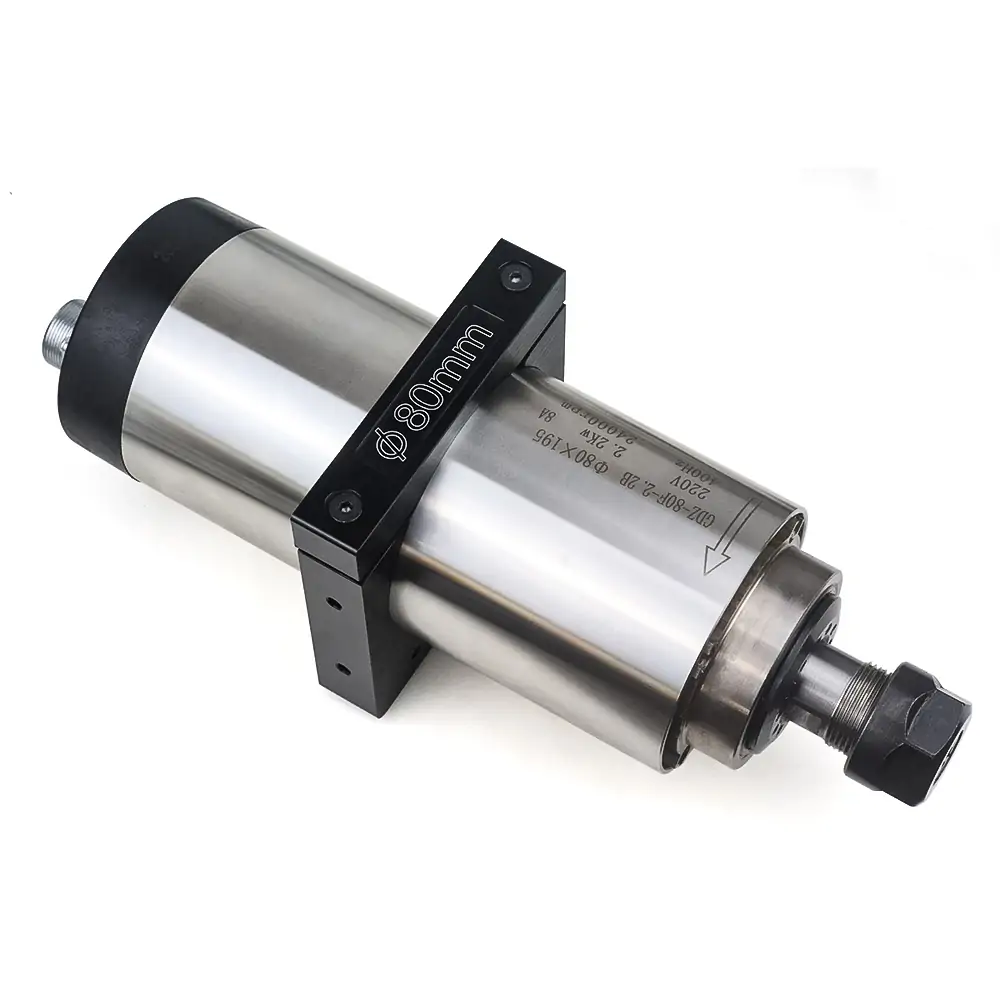

  • 80mm diameter is perfect for mounting the 1.5kW/2.2KW Water Cooled Spindle and 2.2KW Air Cooled Spindle.

---

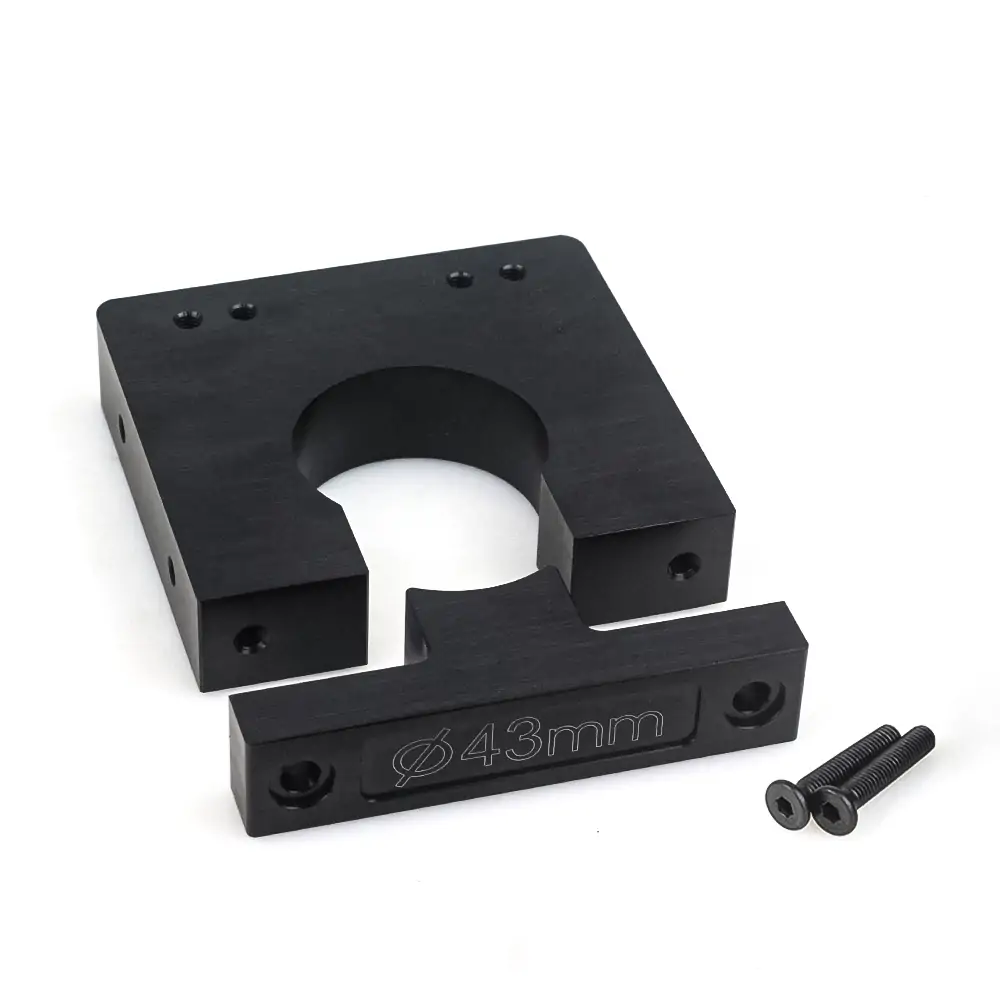

PL20-43  (43mm Diameter Match 2x M5 25mm Low profile screws)

---

PL20-52  (52mm Diameter Match 2x M5 20mm Low profile screws)

---

PL20-65  (65mm Diameter Match 2x M5 25mm Low profile screws)

---

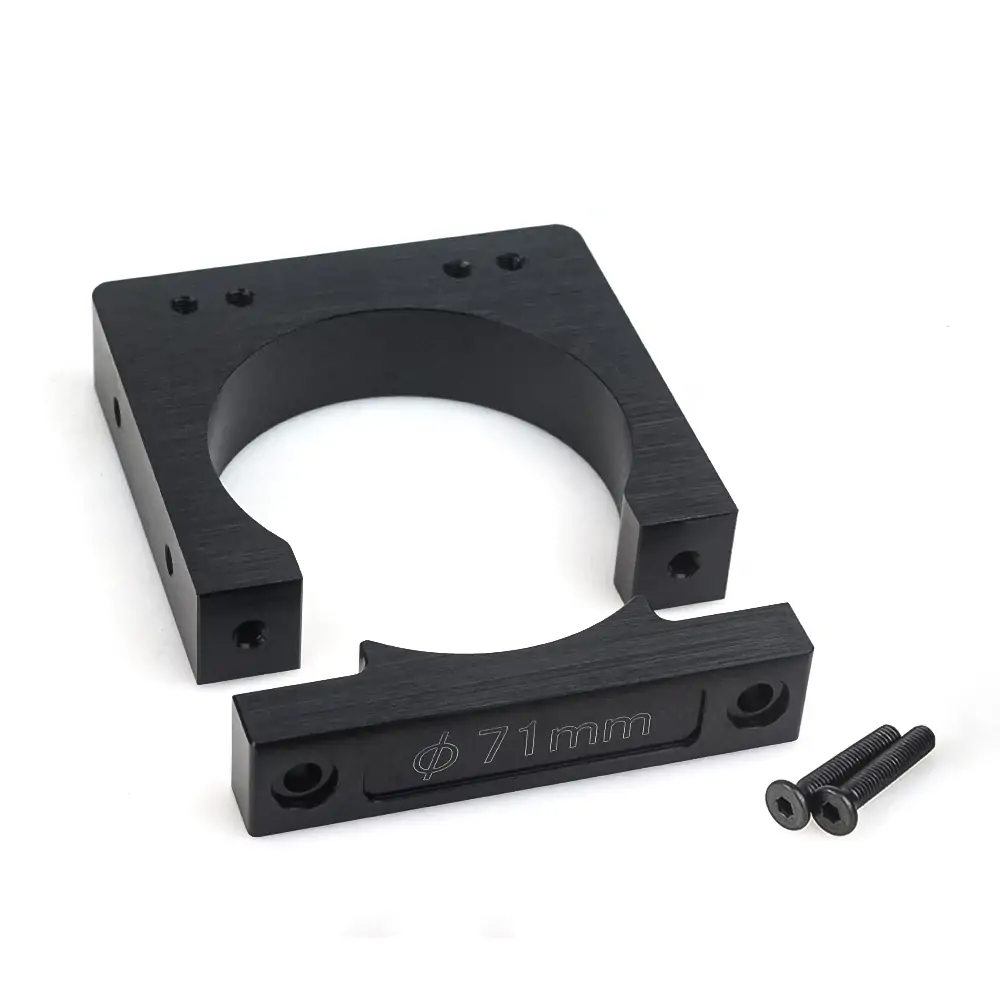

PL20-71  (75mm Diameter Match 2x M5 20mm Low profile screws)



---

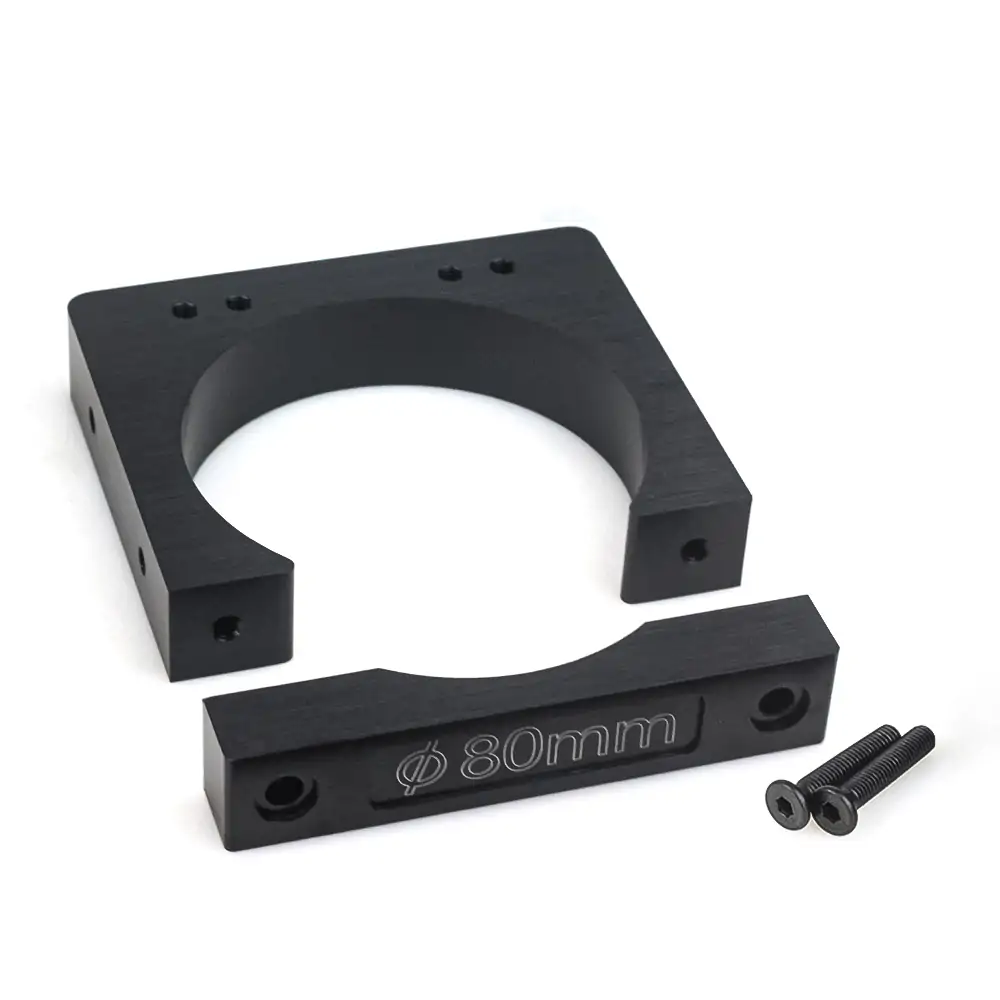

PL20-80  (80mm Diameter Match 2x M5 25mm Low profile screws)



---

Application:
