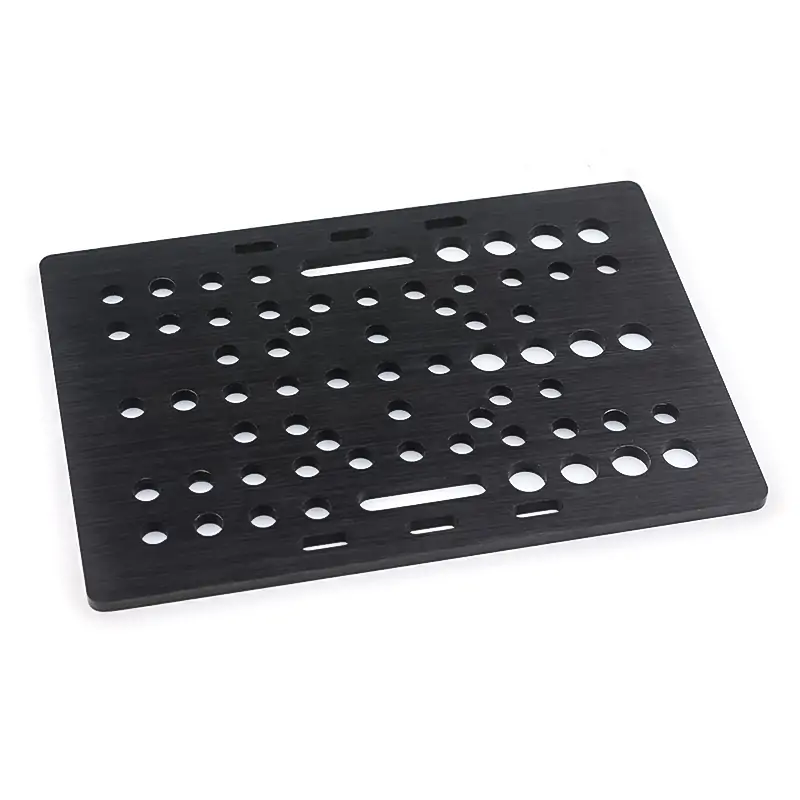

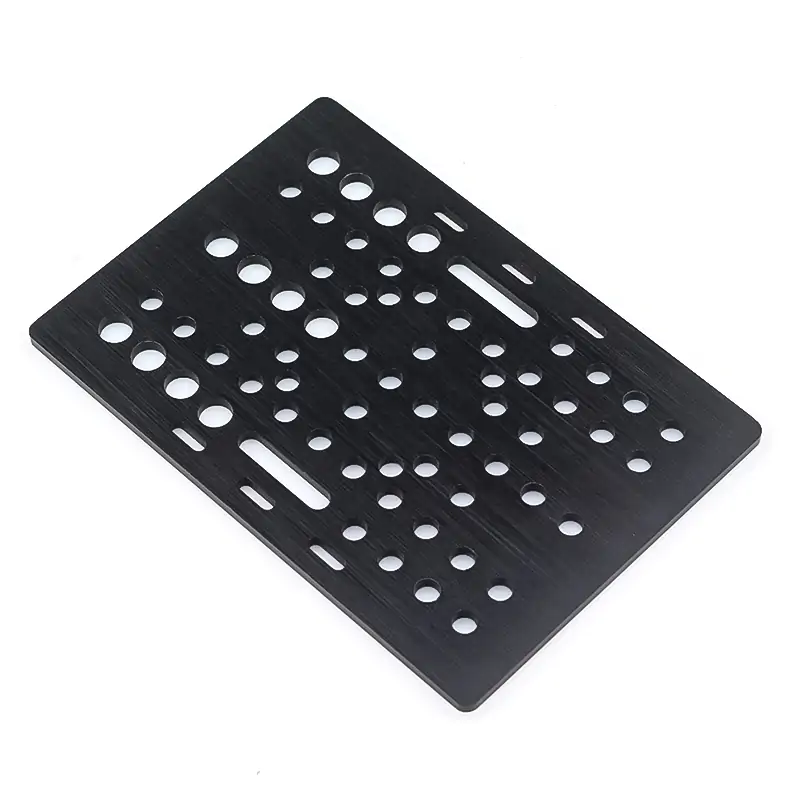

Universal V-Slot Gantry Plate

Description

Specifications

• SKU: PL11-3
• Size: L127 x W88 x T3mm
• Thickness: 3 mm~ (1/8″)
• Material: 6061 Aluminium
• Finish: Black Anodised

Feature

• This is the V-Slot Universal Plate. It can be used on all sizes of V-Slot. 20x20mm, 20x40mm, 20x60mm, 20x80mm, C-Beam (40x80mm), 40x40mm
• The idea behind this plate is to simplify construction.
• We wanted to ensure that we simplify belt clamping so we have incorporated ‘Fold-Through’ Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.
• Two 5mm slots that allow you to attach spacers for 90 degree belt mounts are located under or on top of the plate. This simplifies the overall building process and allows for quick assembly times of motion systems.

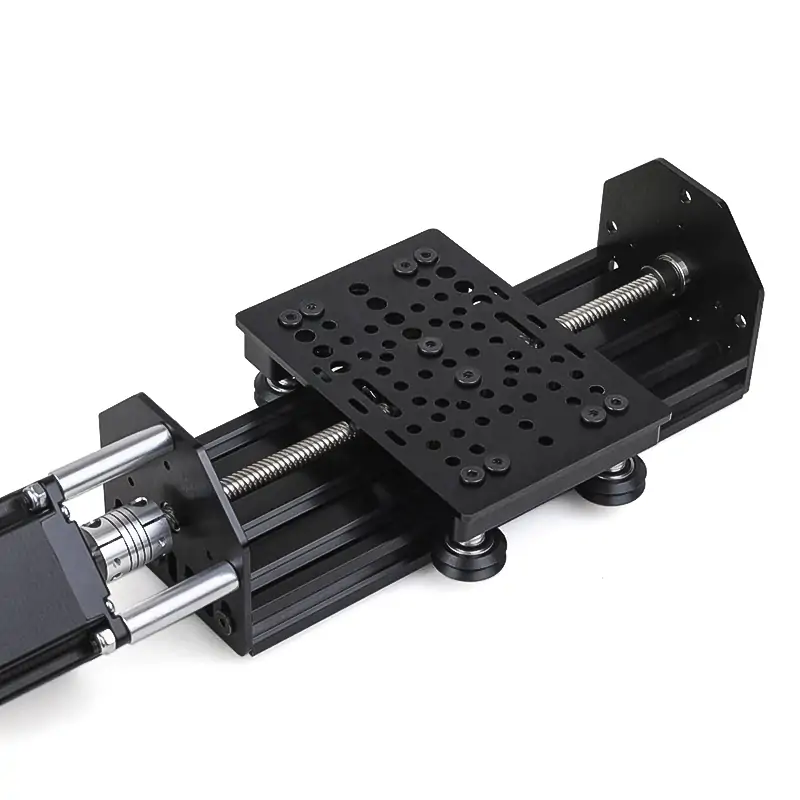

Application

Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
