V-Slot 2020 Aluminum Profile

Description

Feature:

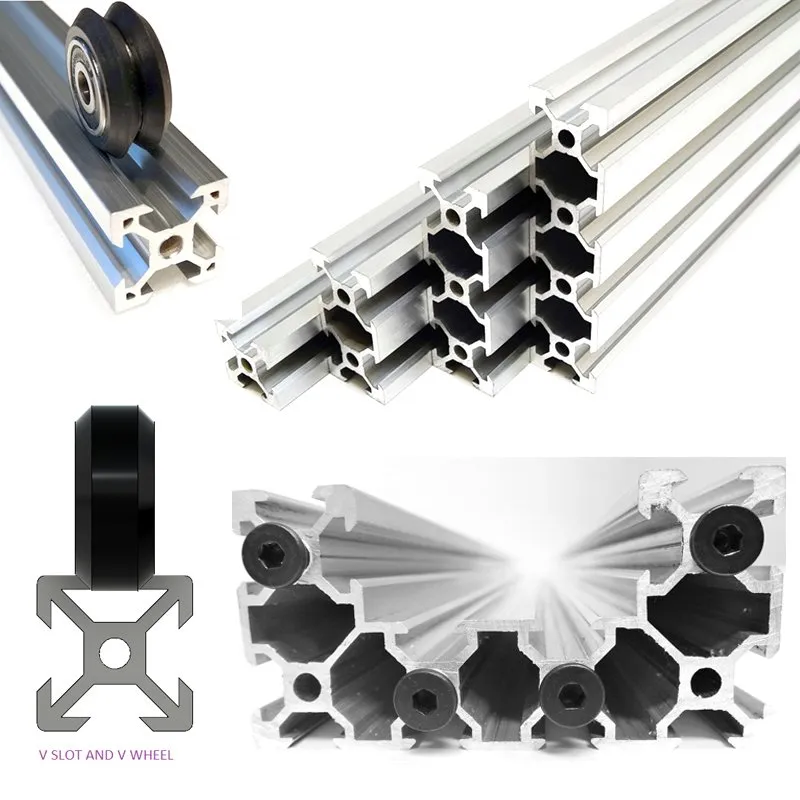

• V-Slot is a high-quality extruded aluminum profile building block that has an extremely smooth linear v groove rail on all 4 sides. It’s precise, easy to use and allows you unlimited design control through it’s modular nature.
• V-Slot 20×20 is a profile based on the popular V-Slot linear guide system. A square profile gives added strength and functionality.Since 20×20 is a product of the V-Slot line, all standard V-Slot parts and accessories are compatible. Like other V-Slot, every side of V-Slot 20×20 can be used as a linear guide.
• You can use V-Slot gantry plates as well as Angle Corner Connectors and Cube Corner Connectors to create strong and robust gantry cart systems for V-Slot 20×20.V-Slot is compatible with readily available, off the shelf, T-Slot components!



Note:

• If you need a customized length please contact us for prices and quantity.
• The aluminum extrusion with no tapped will be sent by default, please add order note or contact us if your aluminum extrusion needs to be tapped (including both ends or one end).
• Sea Shipping (door to door service) is recommended for bulk order, please contact us to get best offer.



Specifications:

• 100% brand new and high quality
• Model: VB2020/VC2020
• Material:  6063 T-5 Aluminium
• Colour: Black anodised / Silver anodised

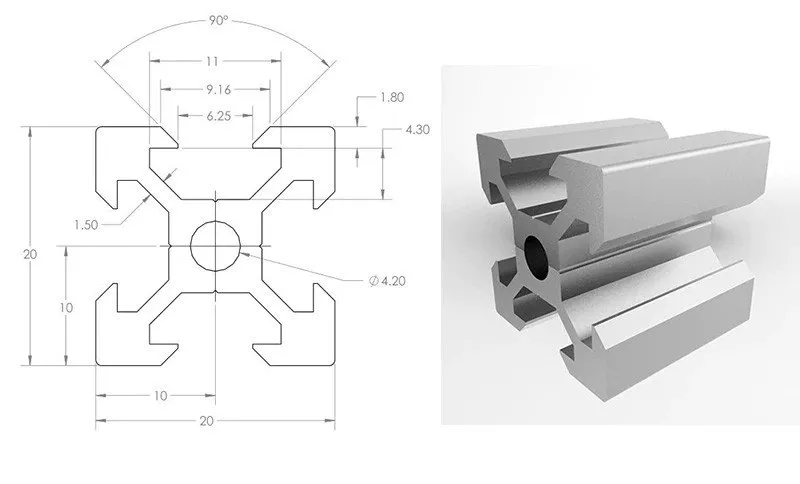

• Profile: 20x20mm
• Length: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm, 1050mm, 1100mm, 1150mm, 1200mm, 1250mm, 1300mm, 1350mm, 1400mm, 1450mm,1500mm or custom length

Application

• 3D Printers
• CNC Engravers
• Hot Wire Machines
• Laser Engraving Machine
• Camera Sliders
• Plasma Cutters
• Robotics
• Furniture
• Woodworking DIY and much more

Package Includes:

• 1pc x 2020 Aluminum Profiles



Please note: We sell to businesses for bulk order quantity please contact [email protected] for special distribution pricing.
