Xtreme Mini V Wheel Kit Unassembled

Description

---

Specification

• SKU: VW06-KA / VW06-KB
• Product name: Xtreme Mini V Wheel Kit
• Material: Polycarbonate (also called PC)
• Bearings: MR105zz
• ID of Bearing: 5x10x4mm
• Rockwell Hardness: M80
• Compression Strength: 63MPA
• Color: Clear

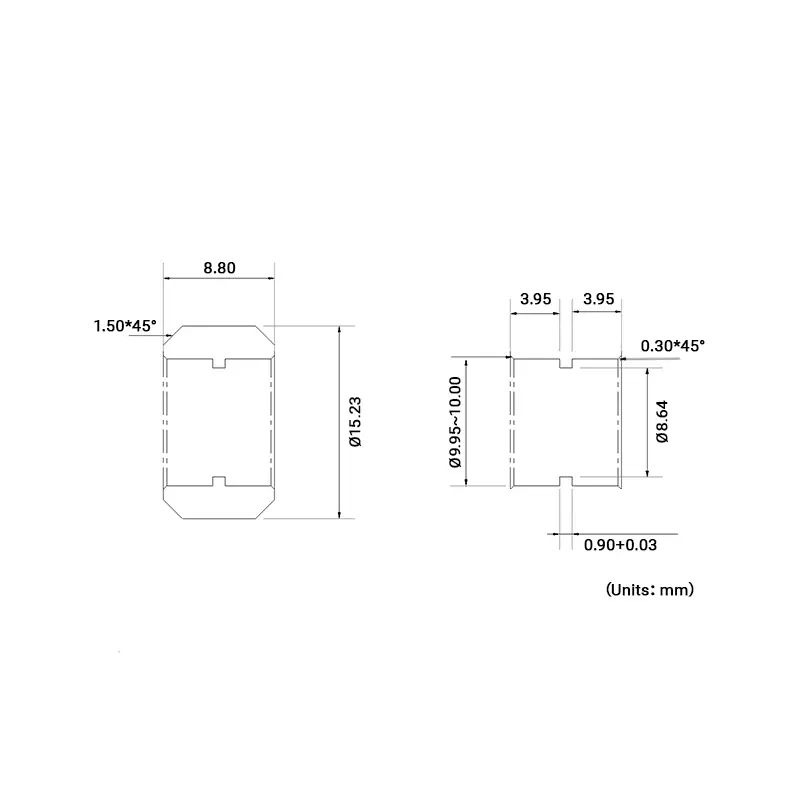

• Size: 15.23 OD x 9.95 ± 0.05 ID x 8.80 thickness (units:mm)



Feature

• The Xtreme Mini V Wheel Kitincludes parts needed to build and mount the Mini V Wheel to the Mini V Plate to create a small form factor linear actuator guide!
• These Mini V Wheels can be used on a variety of projects and are great for use with any V-Slot Extrusion. And these wheels are individually milled for consistent high precision and tolerance.



Each Wheel Kit Includes:

• 1 x Xtreme Mini V Wheel
• 2 x MR105zz Bearings
• 2x Precision Shims 5mm
• 1x Nylon Lock Nut M5
• 1x Low profile screw M5x25mm
• 1x  6mm Aluminum Spacer or 6mm Eccentric Spacer



Tips:

• The standard kit include 6mm aluminum spacer or 6mm eccentric spacer.If you need change 6.35mm (1/4″) aluminum spacer or 6.35mm (1/4″) eccentric spacer,Please give us a note when placing your order.
• This Xtreme Solid V Wheel kit is unassembled.
