Description

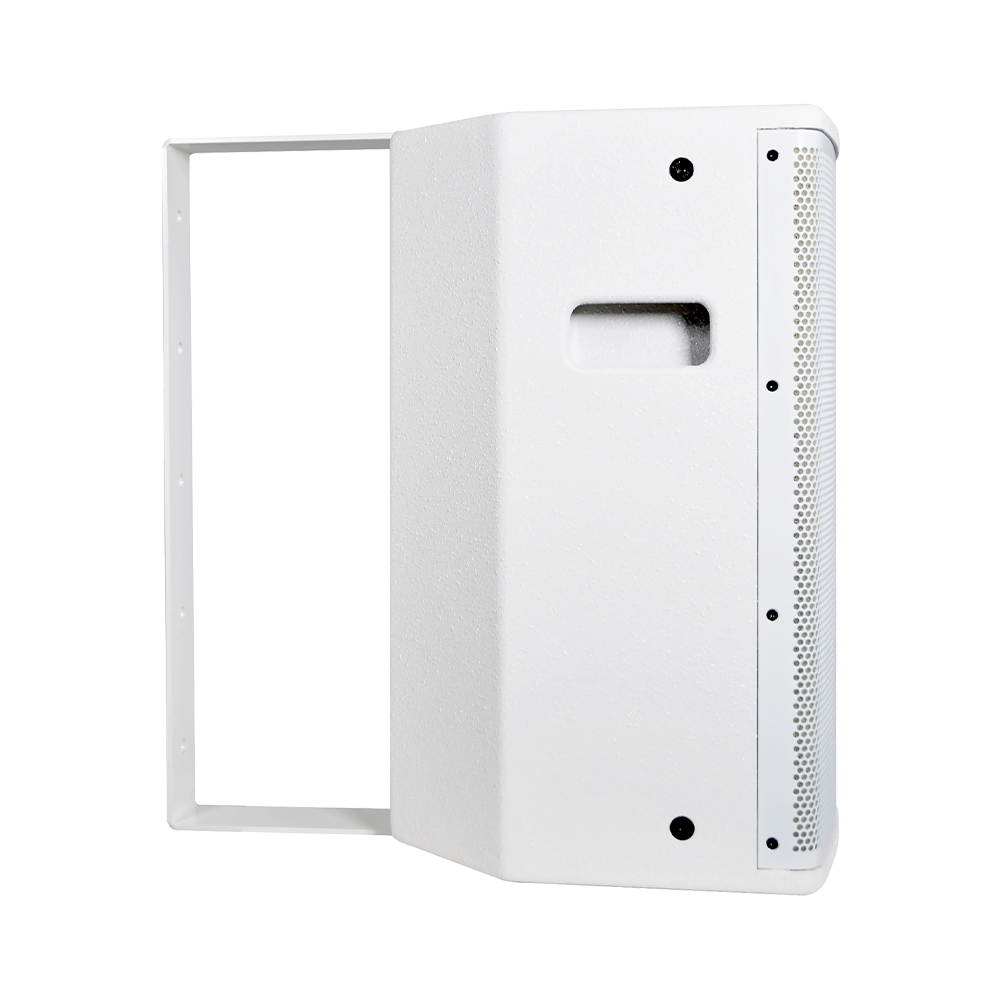

Citronic CUBA-10W 270w 10″ passive PA music cabinet speaker
Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H series amplifiers for a wide range of professional high power sound reinforcement situations.
- Hard-wearing polyurea cabinet coating
- CUBA-8 & CUBA-10 supplied with a U-bracket
- 35mm pole mount socket and M8 flying points
- Custom designed high power LF and HF drivers
- Construction: Polyurea coated MDF + powder-coated steel grille
- Input: 2 x parallel SPK socket
- Impedance: 8 Ohms
- Main driver: 250mmØ (10″)
- Voice coil: 50mmØ (2″)
- HF driver: 35mmØ (1.35″) Ti compression driver
- Power handling : rms: 270W
- Power handling : max: 540W
- Frequency response: 60Hz-20kHZ
- Sensitivity: 95dB
- Max. SPL: 122.5dB
- Dimensions: 507 x 313 x 307mm
- Weight: 12.5kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
