Description

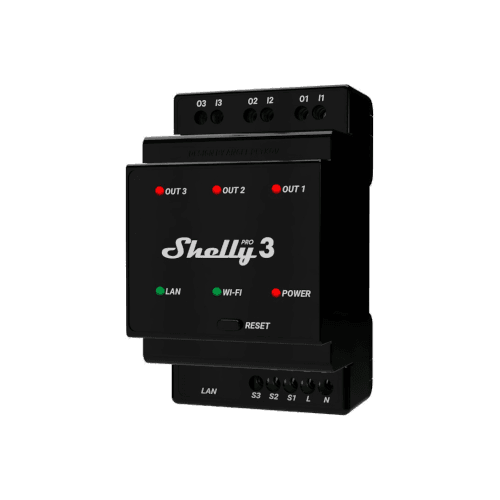

3-channel DIN rail relay switch with Wi-Fi, LAN and Bluetooth connection
Professional DIN rail mountable 3-channel relay with Wi-Fi, LAN, and Bluetooth connection. Suitable for home and commercial facility automation with remote control and precise power management. Enhanced safety features and compatible with the many common home automation platforms. Suitable for controlling 3-phase and single-phase circuits.

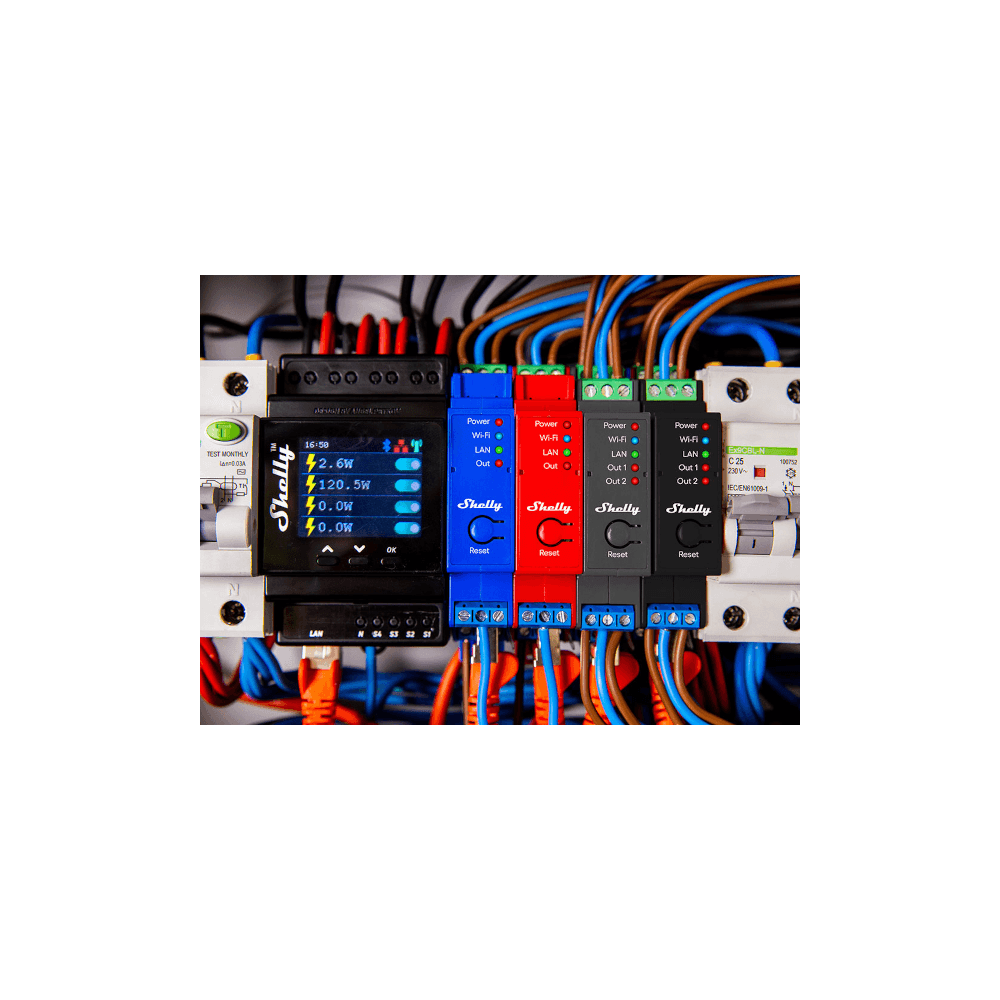

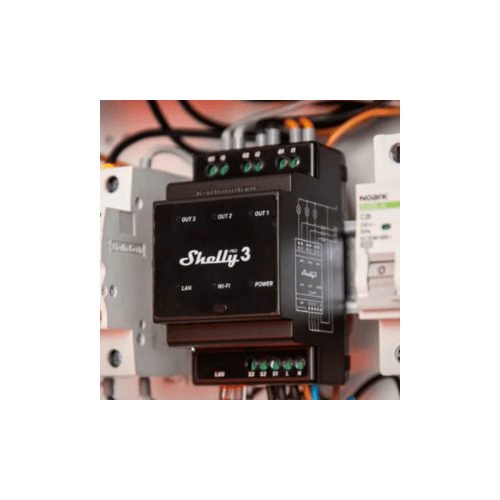

Enhanced with over-temperature protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN rail). Allowing complete smart automation with no additional cables or wiring, the Shelly Pro series is perfect for homes, offices, stores, businesses, and manufacturing facilities, as well as new buildings..
Power
- Power supply AC110-230V ±10%, 50/60Hz
- Maximum load48A, with up to 16A per channel
- Electrical consumption< 3W
Features
- Dry contacts
- Device temperature protection
- HTTP/HTTPS webhooks
- Custom scripts(mJs)
- Channels3
- Operational temperature-20°C to +40 °C
Connectivity
- Ethernet
- Wi-Fi Protocol802.11 b/g/n
- Wi-Fi Radio frequency2412 – 2483 MHz
- Wi-Fi Radio signal power1mW
- Operational range (depending on local construction)• up to 50 m outdoors
• up to 30 m indoors - Bluetooth
Dimensions
- (H x W x L)96 x 53 x 59 mm
