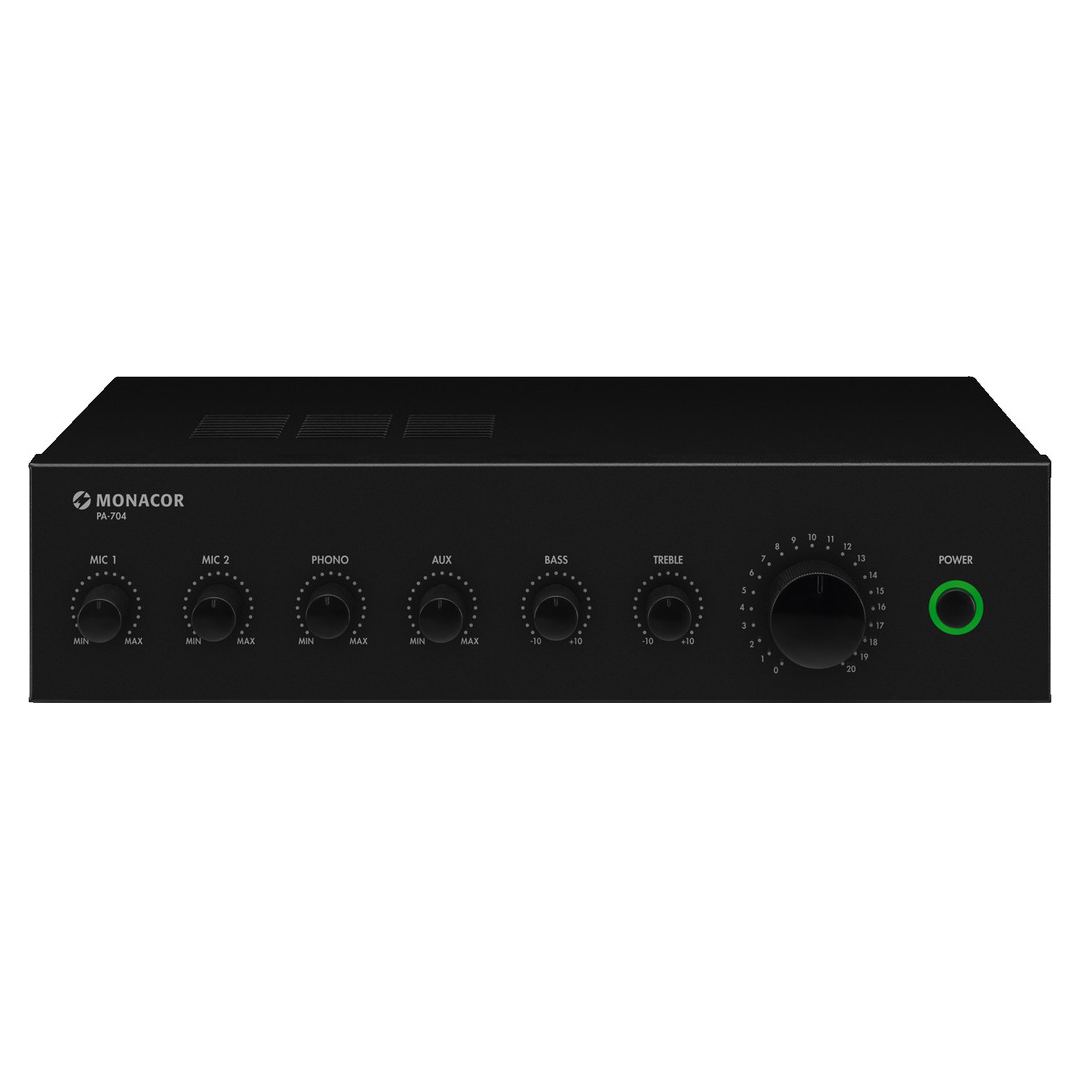

Monacor PA-704 Mixer Amplifier

Description

Monacor PA-704 35w mono 100v line PA mixer amplifier

• 1 x 35 W
• Silent operation due to fanless cooling concept
• 2 low-impedance microphone inputs
• 1 aux input, 1 phono input
• Speaker outputs via screw terminals
• Input and output level controls
• 2-way tone control for the output
• Connection for a microphone talk button to switch off the other sources during announcements
• Mains operation and 12-24 V emergency power operation
• Peak output power: 70 W
• Power rating: 35 W
• Channels: 4
• Inputs: 5 mV (mic), 210 mV (aux), 5 mV (phono)
• Frequency range: 100-18,000 Hz
• Equalizer
  Bass: ±10 dB/150 Hz
  Treble: ±10 dB/6 kHz
• S/N ratio: > 55 dB
• THD: < 1%
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 100 VA
• Operating voltage (possible alternative): DC 12-24 V
• Power supply (possible alternative): DC 2.5 A
• Admissible ambient temperature: 0-40 °C
• Width: 320 mm
• Height: 85 mm
• Depth: 230 mm
• Weight: 4.97 kg

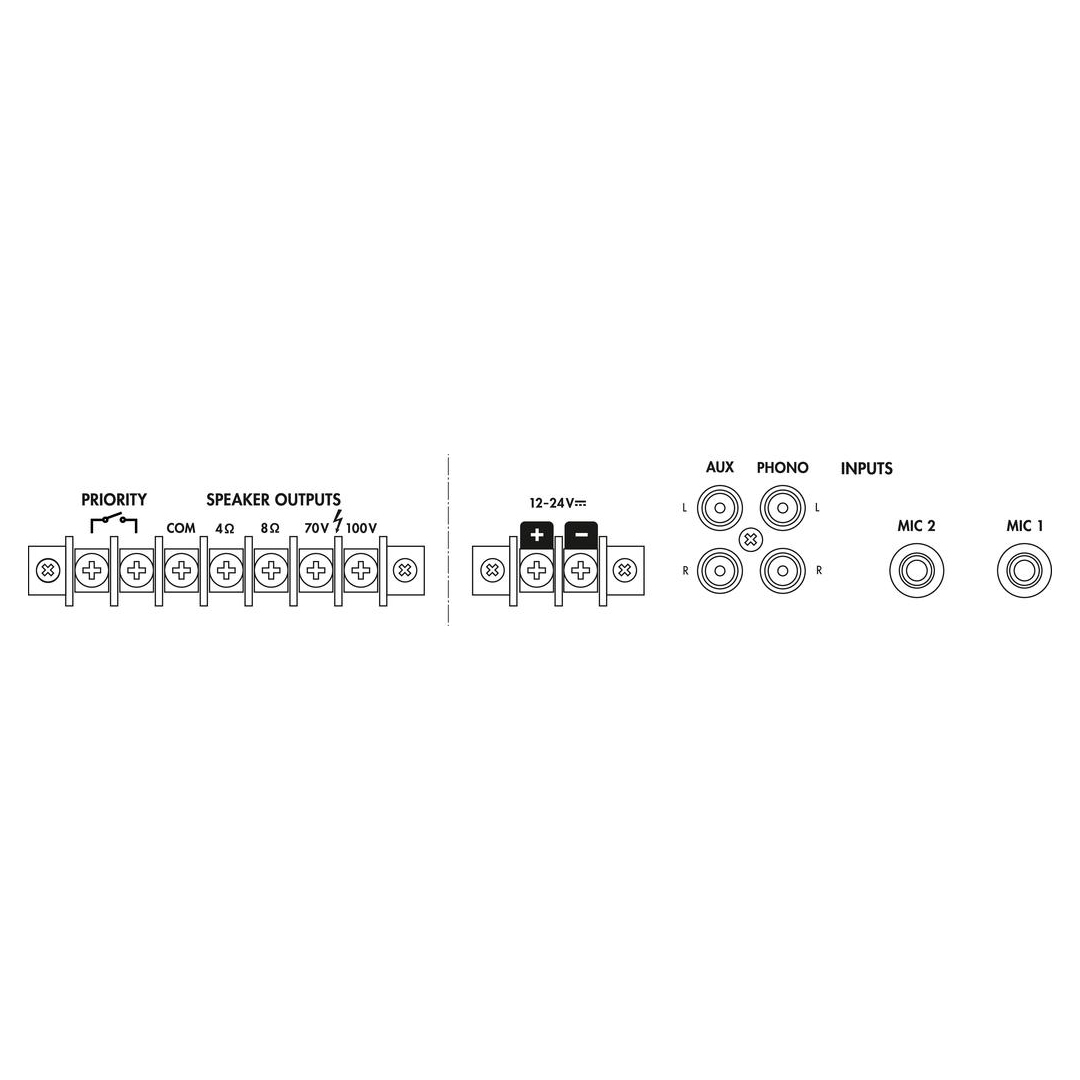

• Connections: 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), connecting terminals (speakers)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
